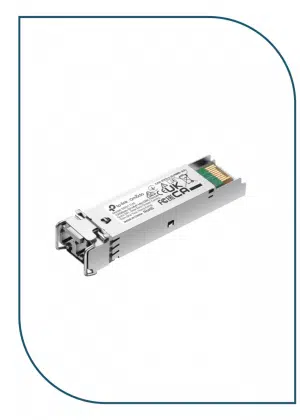

TL-SM311LM Omada 1000-Base-SX MMF Mini GBIC Module
TL-SM311LM
- Multi-mode MiniGBIC module
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Hot-Pluggable with maximum flexibility
Description
TL-SM311LM
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wave Length | 850nm |
| Dimensions (W*D*H) | 2.2*0.5*0.5 in (55.4*13.7*12.9 mm) |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Cable | Multi-mode Fiber |
| Fiber Type | 50/125μm or 62.5/125μm Multi-mode |
| Max. Cable Length | 550m |
| Data Rate | 1.25Gbps |
| Port Type | LC/UPC |
| Hardware Features | • DDM
SFP-MSA • Hot Swappable |
| Package Contents | • SM311LM
• Installation Guide |
| Environment | • Operating Temperature: 0℃~70℃ (32℉~158℉)
Storage Temperature: -40℃~80℃ (-40℉~176℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
