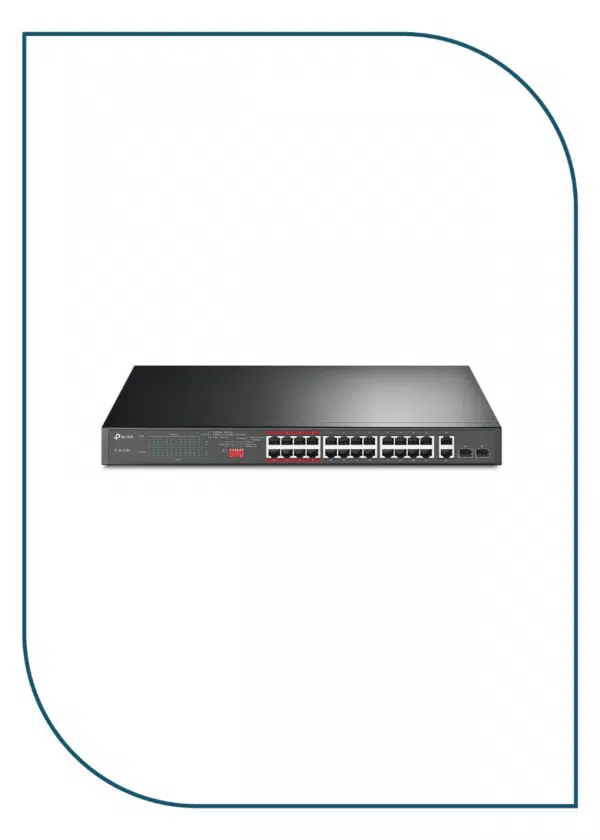

TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch

TL-SL1226P

24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch

WhatsApp Button Call for Price

Availability: Available on backorder
SKU:TL-SL1226P

All prices include VAT

Description

TL-SL1226P

HARDWARE FEATURES
Interface
  • 24× PoE+ 10/100 Mbps RJ45 Ports
  • 2× 10/100/1000 Mbps RJ45 Ports
  • 2× Combo Gigabit SFP Slots
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100-240 VAC, 50/60 Hz
Packet Forwarding Rate 6.54 Mpps
PoE+ Ports(RJ45)
  • Standard: 802.3at/802.3af compliant
  • PoE Ports: Port 1 – Port 24
  • PoE Power Budget: 250 W
Mac Address Table 16 K
Jumbo Frame 16 KB
Switching Capacity 8.8 Gbps
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Max Power Consumption 14.81 W (220/50 Hz. no PD connected)
302.88 W (220/50 Hz. with 250 W PD connected)
Max Heat Dissipation 50.35 BTU/h (no PD connected)
1029.79 BTU/h (with 250 W PD connected)
SOFTWARE FEATURES
Advanced Features
  • Compatible With IEEE 802.3at/af Compliant PDs
  • Extend Mode (Up to 250m PoE power supply and data transmission)
  • Priority Mode (Ports 1-8)
  • Isolation Mode (Ports 1-24)
  • PoE Auto Recovery (Ports 1-24)
  • PD Detection
  • Intelligent Power Supply
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control
Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • TL-SL1226P
  • Power Cable
  • Installation Guide
  • Two mounting brackets and the fittings
Environment
  • Operating Temperature: 0–50 °C (32–122 °F)
  • Storage Temperature: -40–70 °C (-40–158 °F)
  • Operating Humidity: 10–90% non-condensing
  • Storage Humidity: 5–90% non-condensing
