Description

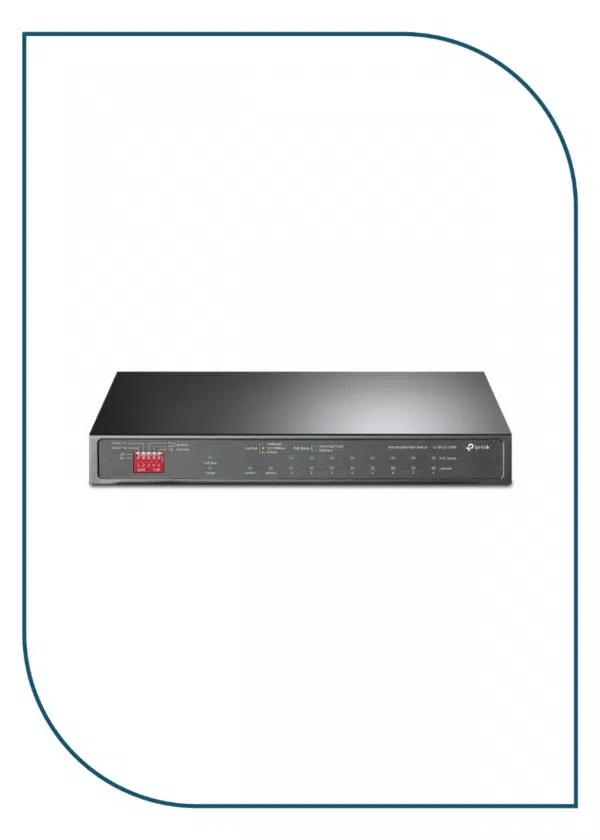

TL-SG1218MP
- 9× gigabit RJ45 ports, and 1× gigabit combo SFP/RJ45 Port
- 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W*
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Up to 250 m data and power transmission range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
- Plug and play with no configuration required
- Fanless design reduces power consumption and works silently in its location
DISCRIBTION
TL-SG1218MP
- 9× gigabit RJ45 ports, and 1× gigabit combo SFP/RJ45 Port
- 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W*
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Up to 250 m data and power transmission range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
- Plug and play with no configuration required
- Fanless design reduces power consumption and works silently in its location
| HARDWARE FEATURES | |
|---|---|
| Interface | • 9× 10/100/1000 Mbps RJ45 Ports • 1× 1000 Mbps Combo SFP/RJ45 Port • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5VDC / 2.43A) |
| Packet Forwarding Rate | 14.88 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 123 W |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 20 Gbps |
| Dimensions ( W x D x H ) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Max Power Consumption | • 7.93 W (220V / 50Hz with no PD connected) • 141.40 W (220V / 50Hz with 123 W PD connected) |
| Max Heat Dissipation | • 27.04 BTU/h (220V / 50Hz with no PD connected) • 482.17 BTU/h (220V / 50Hz with 123 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1–2) • Isolation Mode Button (Ports 1–4 / 5-8) • PoE Auto Recovery (Ports 1-8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | • TL-SG1210MP • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
