Description

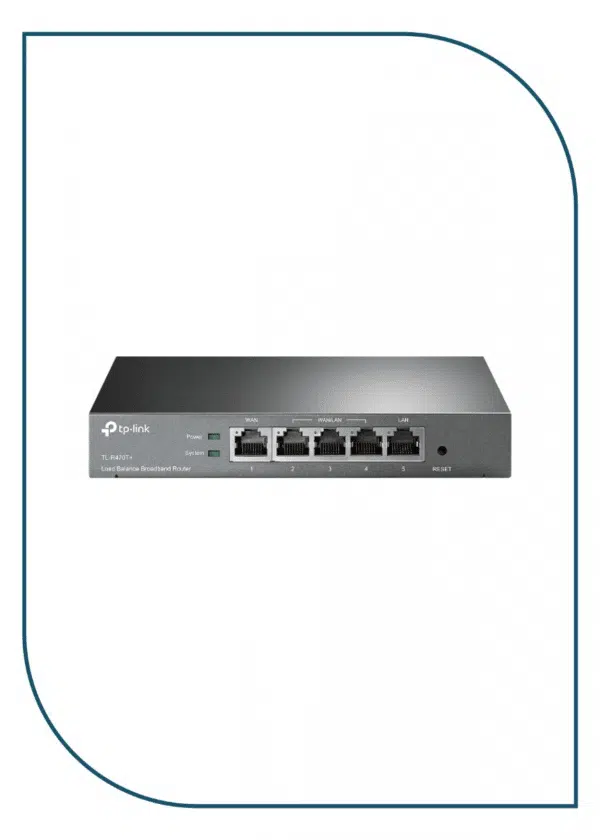

TL-R470T+
- Portal Authentication enables efficient access management
- Marshals bandwidth resource to specific clients based on their unique application environments
- Smaller case for cost-effective solution in the small office or Internet cafes network
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS |
| Interface | 1 Fixed Ethernet WAN Port 1 Fixed Ethernet LAN Port 3 Changeable Ethernet WAN/LAN Ports |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m), 100BASE-TX: UTP category 5, 5e cable (Max 100m) |
| Button | Reset Button |
| Power Supply | External 9V/0.6A DC Adapter |
| Flash | 16MB |
| DRAM | 128MB |
| LED | PWR, SYS, WAN, LAN, WAN/LAN |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in. (158 × 101 × 25mm) |
| PERFORMANCE | |
|---|---|
| Concurrent Session | 10000 |
| BASIC FUNCTIONS | |
|---|---|
| WAN Connection Type | Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable |
| MAC Clone | Modify WAN/LAN MAC Address |
| DHCP | DHCP Server/Client, DHCP Address Reservation |
| Switch Setting | Rate Control, Port Configuration, Port VLAN |
| ADVANCED FUNCTIONS | |
|---|---|
| ACL | IP/MAC/URL/WEB Filtering |
| IGMP | IGMP Proxy/IGMP Snooping |
| Forwarding | Virtual Server, Port Triggering, DMZ |
| Load Balance | Policy Routing, Link Backup |
| Routing | Static Routing |
| Security | FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death, IP/MAC Binding |
| Traffic Control | Bandwidth Control, Session Limit |
| MANAGEMENT | |
|---|---|
| Service | Dynamic DNS, UPnP |
| Maintenance | Time Setting, Daylight Saving Time, SNMP, Diagnostics, Firmware Upgrade, Factory Defaults/Reboot, Backup/Restore, System Log, Remote Management, Statistics |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | TL-R470T+ Power Adapter RJ-45 Ethernet Cable Quick Installation Guide |
| System Requirements | Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
