Description

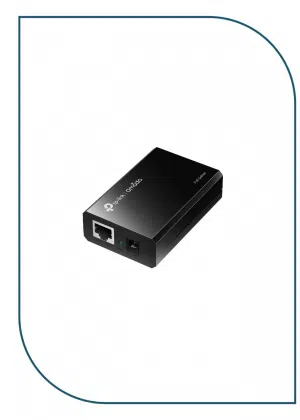

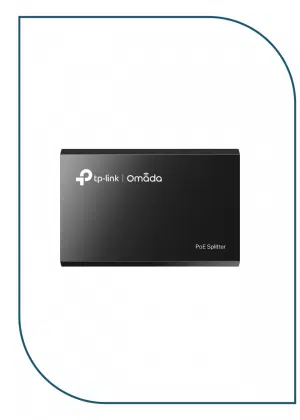

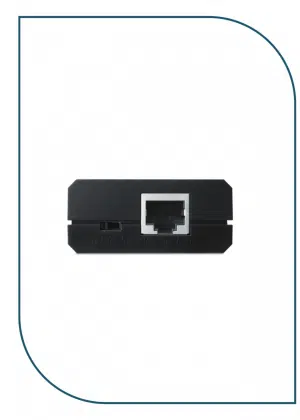

TL-POE10R
HARDWARE FEATURES |
|
|---|---|
| Interface | • 2× 10/100/1000Mbps RJ45 Port • Auto Negotiation/Auto MDI/MDIX • 1× Power Output Port |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Power Supply | 12VDC 1A, 9VDC 1A, 5VDC 2A |
| Basic Function | • Compatible With IEEE 802.3af Compliant PSEs Delivers Power Up To 100 Meters • Optional 12VDC, 9VDC or 5VDC Power Output |
| LED Indicator | PWR |
| Dimensions ( W x D x H ) | 3.2*2.1*0.9 in.(80.8*54*24 mm) |
SOFTWARE FEATURES |
|
|---|---|
| Basic Function | • Compatible With IEEE 802.3af Compliant PSEs • Delivers Power Up To 100 Meters • Optional 12VDC, 9VDC or 5VDC Power Supply |
OTHERS |
|
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | • POE10R • Power Cord • Installation Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
