Description

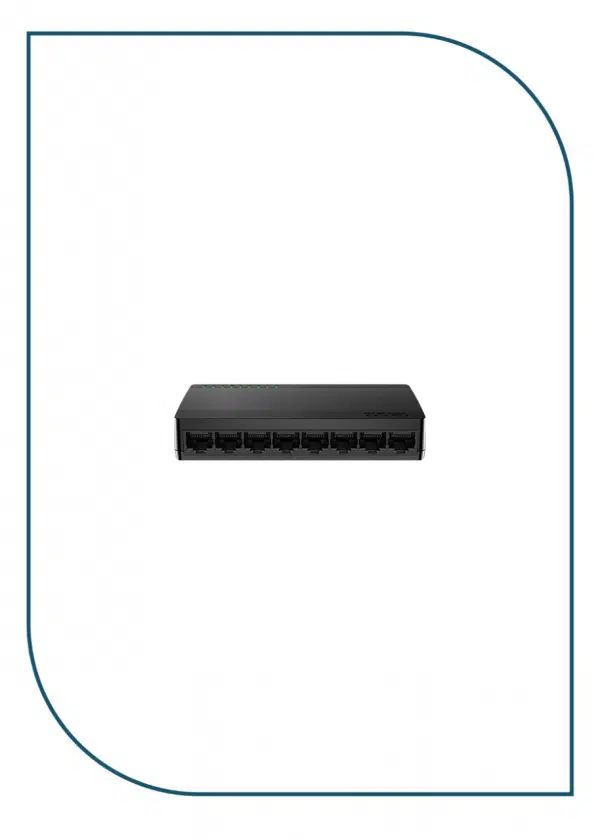

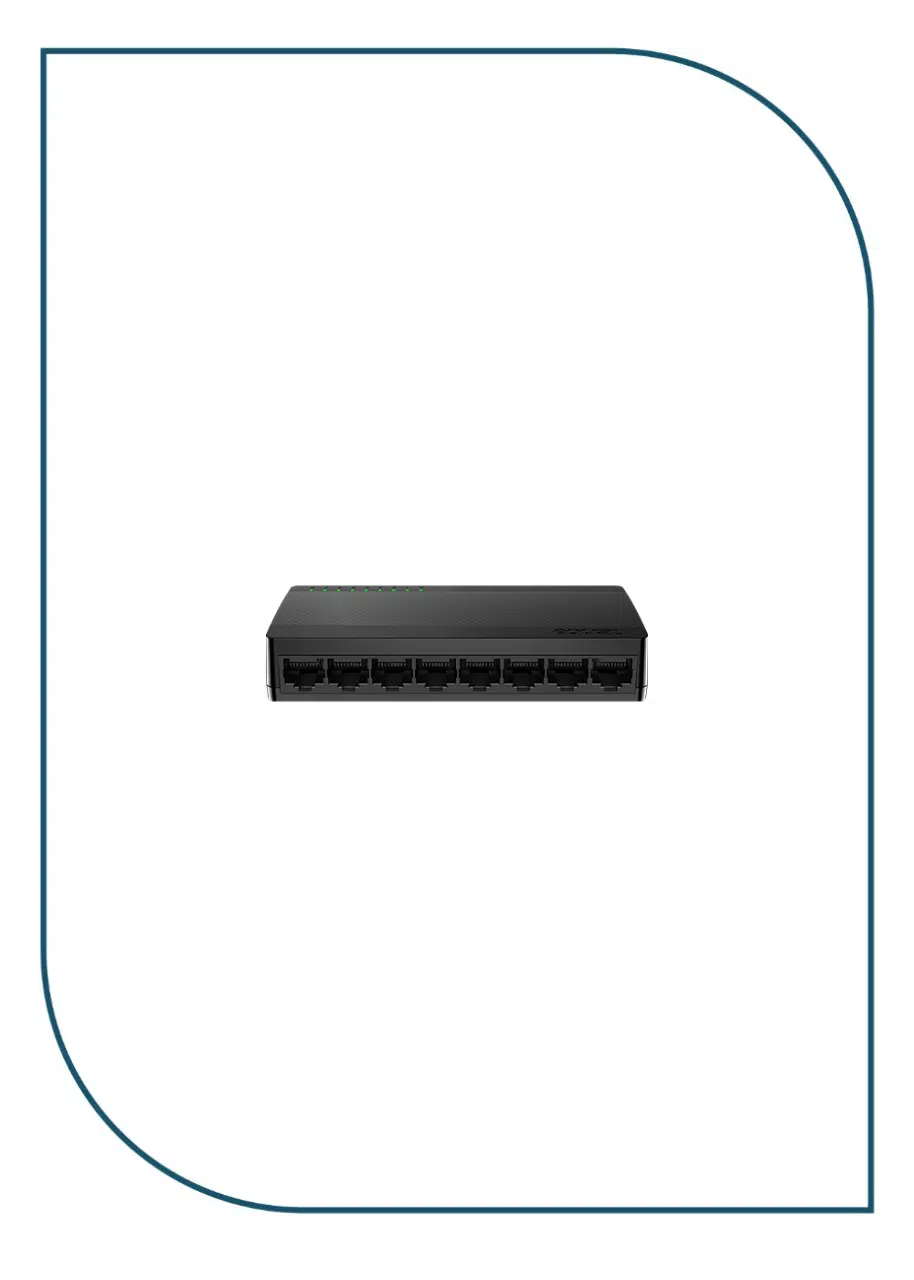

SG108M
8-Port Gigabit Ethernet Switch
- Desktop mounting & Wall mounting
- Equipped with plastic shell,Mini and fashionable design
- 8×Gigabit RJ-45 ports
-
Network standards
IEEE802.3
IEEE802.3u
IEEE802.3x
IEEE802.3ab
LED IndicatorOne Link/Act LED indicator for each Gigabit port
One Power LED indicator for each device
Interfaces8*10/100/1000Base-T Ethernet ports
Transmission mediaEthernet: CAT3 UTP or better
Fast Ethernet: CAT5 UTP or better
Gigabit Ethernet: CAT5e UTP or better
Dimension124mm * 59mm * 23mm
MaterialPlastic
Forwarding modeStore-and-forward
Switch capacity16Gbps
Packet forwarding rate11.9Mpps
Buffer4Mb
MAC address table8K
Jumbo frame15K
PowerInput: 100-240V AC 50/60Hz
Output: 5.0V 0.6A ( External Power Adapter )
Power consumptionMax:<3W
MountingDesktop mounting: support
Wall mounting: support
Rack mounting:non-support
EnvironmentOperating temperature: 0°C – 45℃
Storage temperature: -40°C – 70°C
Operating humidity: (10% – 90%) RH, non-condensing
Storage humidity: (5% – 90%) RH, non-condensing
CertificationOperating temperature: 0°C – 45℃
Storage temperature: -40°C – 70°C
Operating humidity: (10% – 90%) RH, non-condensing
Storage humidity: (5% – 90%) RH, non-condensing
-
MAC address learning
Auto-learning and Auto-Updating
Funtionsplug-and-play
