Description

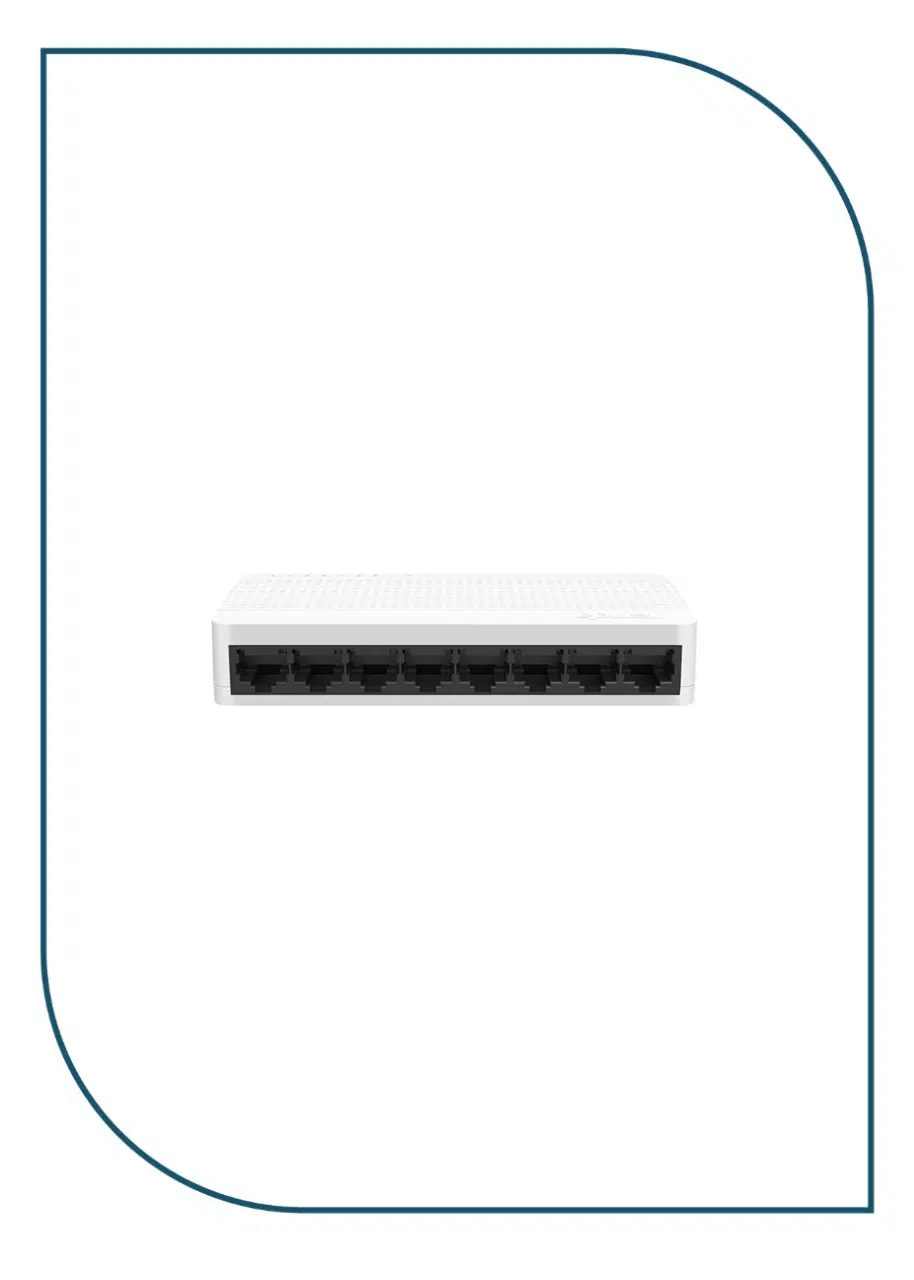

Tenda S108
- Desktop mounting & Wall mounting
- Equipped with plastic shell,Mini and fashionable design
- 8×10/100Mbps RJ-45 ports
What It Does |
Main Features |
|||
| Tenda 8-port Ethernet Switch S108 is a desktop switch specially designed for families, offices, dormitories etc.
8* 10/100 M auto-negotiation ports with full duplex rate up to 200Mbps bring blazing fast Internet access. Plug-and -play design makes installation easy in no time. Whether you are a tech-savvy enthusiast or a first-time user, S108 is very easy and intuitive to setup without time-consuming operations. With ultra-compact design , Tenda S108 also supports desktop and wall-mounting so you can put S108 anywhere you want and move flexibly. Compatible with computer, printer, smart TVs, NAS, smart game console and IP-cameras, Tenda S108 makes your home network fun & easy. |
|
-
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
LED Indicator1* Power, 8* Link/Act
Interfaces8*10/100 Base-TX Ethernet ports (Auto MDI/MDIX)
Transmission mediaRecommended: CAT5/5e UTP or better
Dimension124.0mmx59.0mmx23.1mm
MaterialPlastic
Level of protectionESD:
Air discharge: ±8kV
Contact discharge: ±6kV
Forwarding modeStore-and-forward
Switch capacity1.6Gbps
Packet forwarding rate1.19Mpps
Buffer448K
MAC address table1K
PowerInput: 100-240V AC 50/60Hz
Output: 5.0V 0.6A ( External Power Adapter )
Power consumptionMax:<2.15W
MountingDesktop mounting: support
Wall mounting: support
Rack mounting:non-support
EnvironmentOperating temperature: 0°C – 45℃
Storage temperature: -40°C – 70°C
Operating humidity: (10% – 90%) RH, non-condensing
Storage humidity: (5% – 90%) RH, non-condensing
CertificationCE, FCC, RoHS
-
Protocols
CDMA/CD
MAC address learningAuto-Learning and Auto-Aging
Funtionsplug-and-play
