Description
RS422+
Key Features :
-

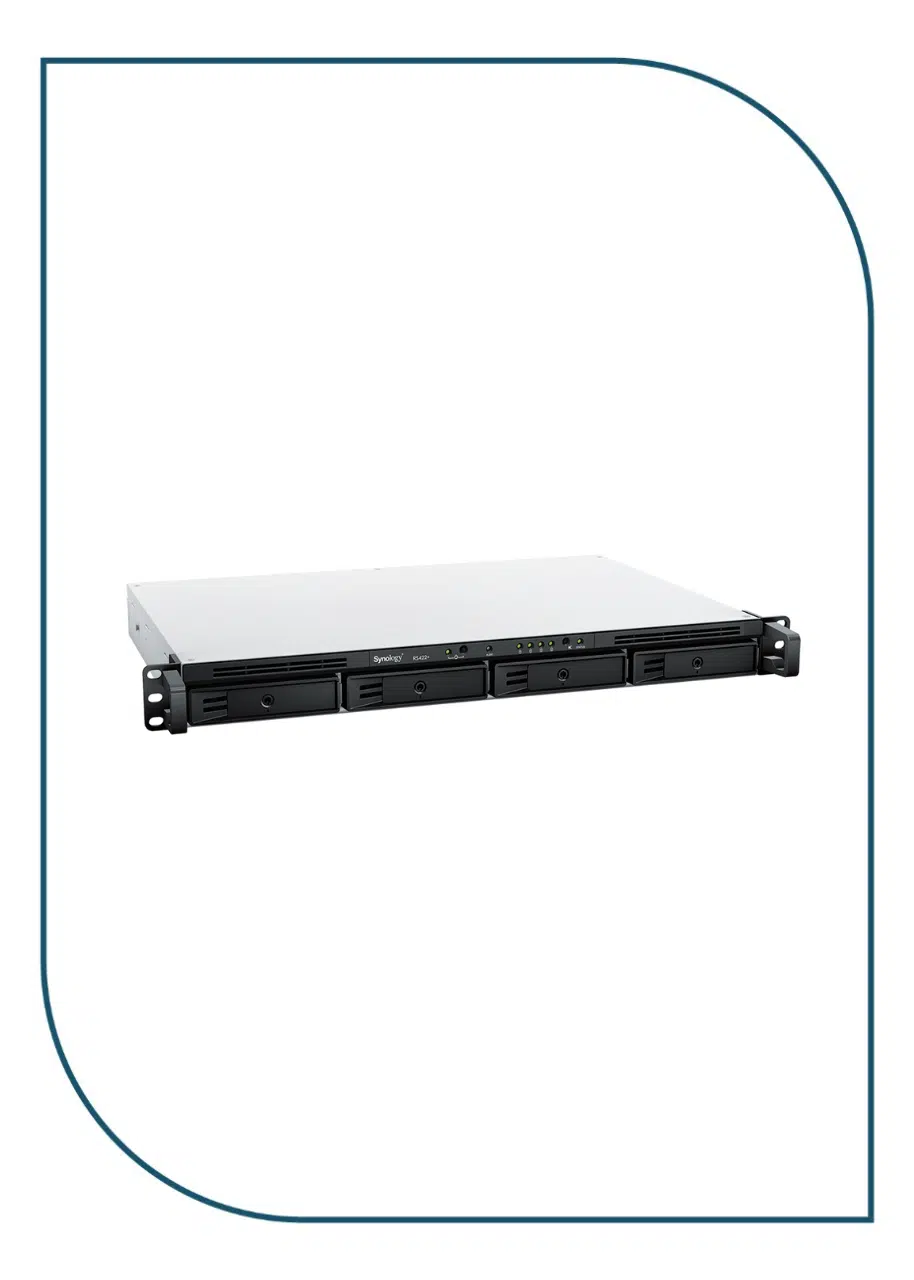

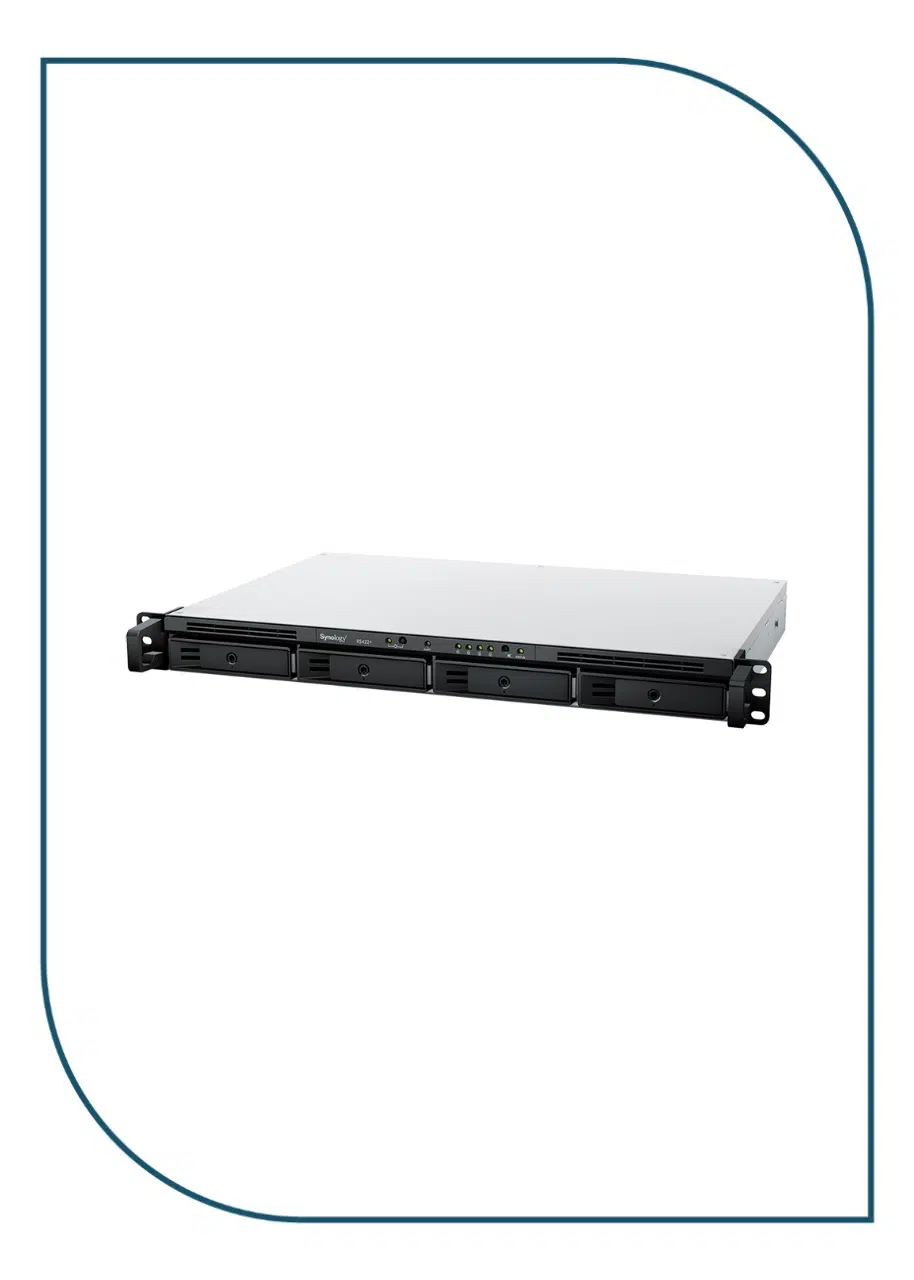

4-bay rackmount NAS for business environments
-
Compact 1U design ideal for small server racks
-
High-performance processor for business workloads
-
Supports virtualization and backup solutions
-
Advanced data protection with Synology DSM
-
Scalable and reliable 24/7 operation
|
Hardware Specifications
|
||
|---|---|---|
|
CPU
|
CPU Model | AMD Ryzen R1600 |
| CPU Quantity | 1 | |
| CPU Core | 2 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2.6 (base) / 3.1 (turbo) GHz | |
| Hardware Encryption Engine | ||
|
Memory
|
System Memory | 2 GB DDR4 ECC |
| Notes | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. | |
|
Storage
|
Drive Bays | 4 |
| Drive Type (See all supported drives) |
|
|
| Hot Swappable Drive* | ||
|
External Ports
|
RJ-45 1GbE LAN Port | 2 |
| USB 3.2 Gen 1 Port | 1 | |
| Notes | This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. | |
|
PCIe
|
PCIe Expansion | 1 x Gen3 x2 network upgrade slot |
|
DSM Specifications
|
||
|---|---|---|
|
Storage Management
|
Maximum Single Volume Size | 108 TB |
| Maximum Internal Volume Number | 64 | |
| SSD Read/Write Cache (Determining cache size) | ||
| SSD TRIM | ||
| Supported RAID Type |
|
|
| RAID Migration |
|
|
| Volume Expansion with Larger HDDs |
|
|
| Volume Expansion by Adding a HDD |
|
|
| Global Hot Spare Supported RAID Type |
|
|
| Notes |
|
|
|
File System
|
Internal Drives |
|
| External Drives |
|
|

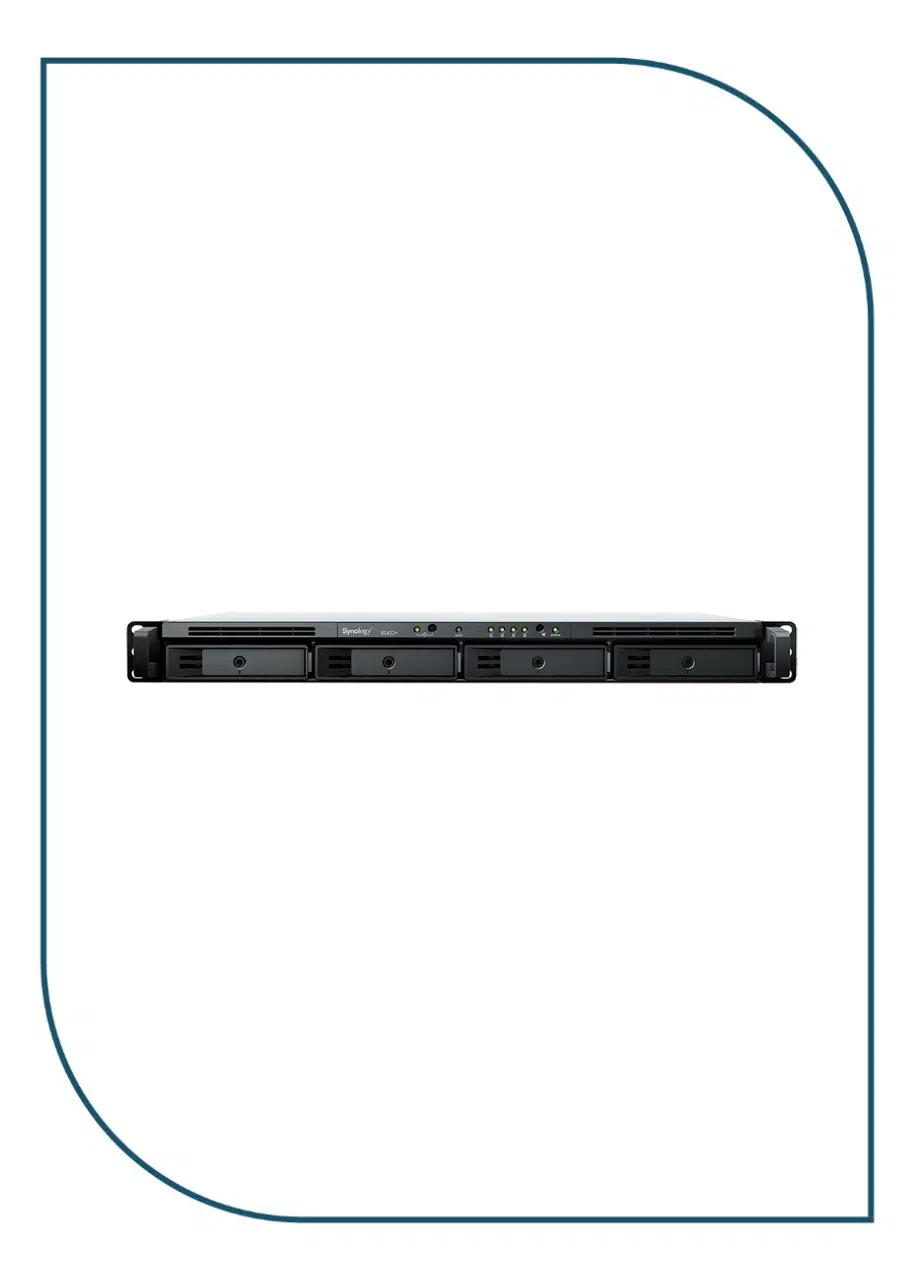

- 1Power Indicator
- 2Power Button
- 3Alert Indicator
- 4Drive Status Indicators
- 5Mute Button
- 6Status Indicator
- 7Drive Tray Locks
- 8Drive Trays

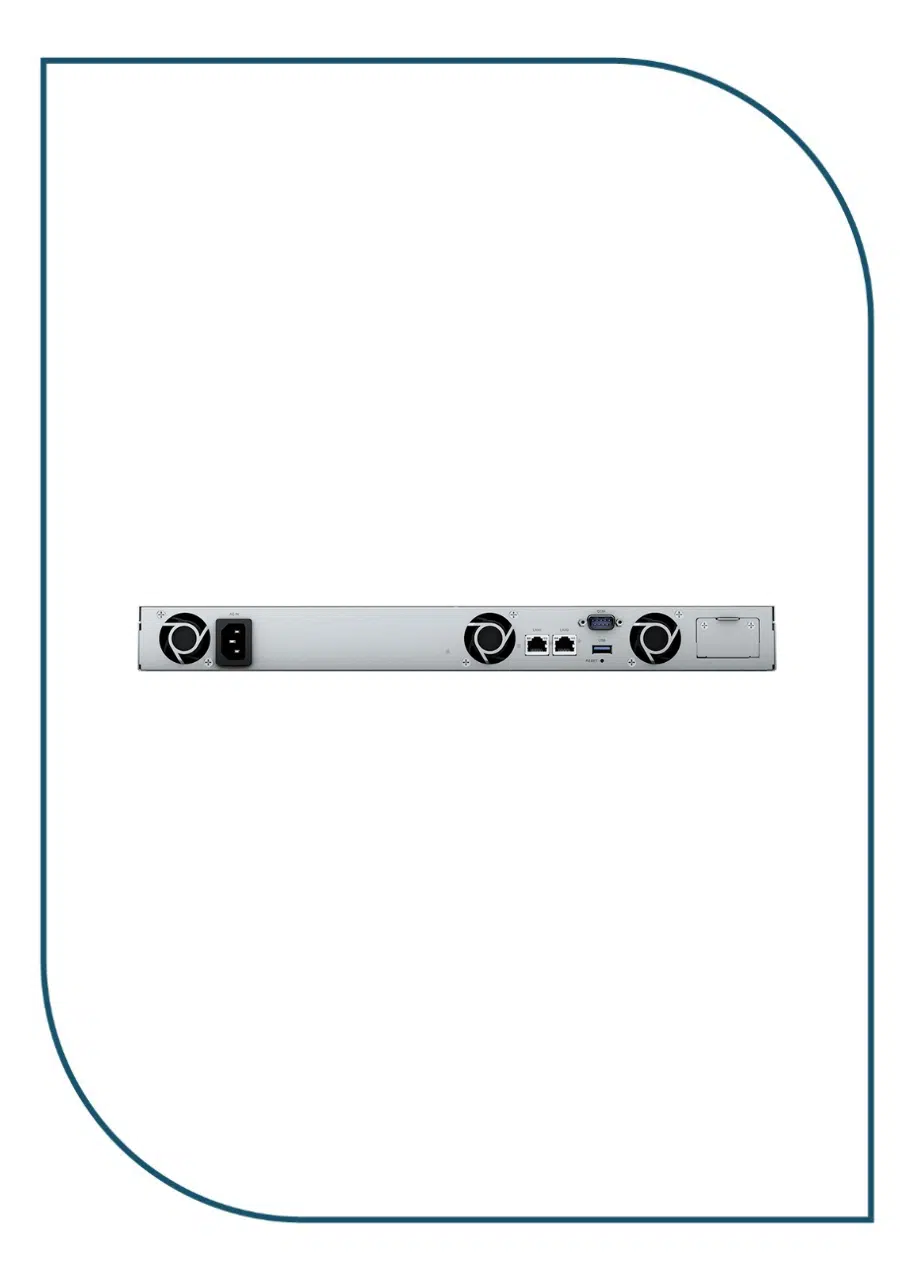

- 9Fans
- 10Power Port
- 111GbE RJ-45 Ports
- 12Console Port
- 13USB 3.2 Gen 1 Port
- 14Reset Button
- 15Network Upgrade Slot
