Description

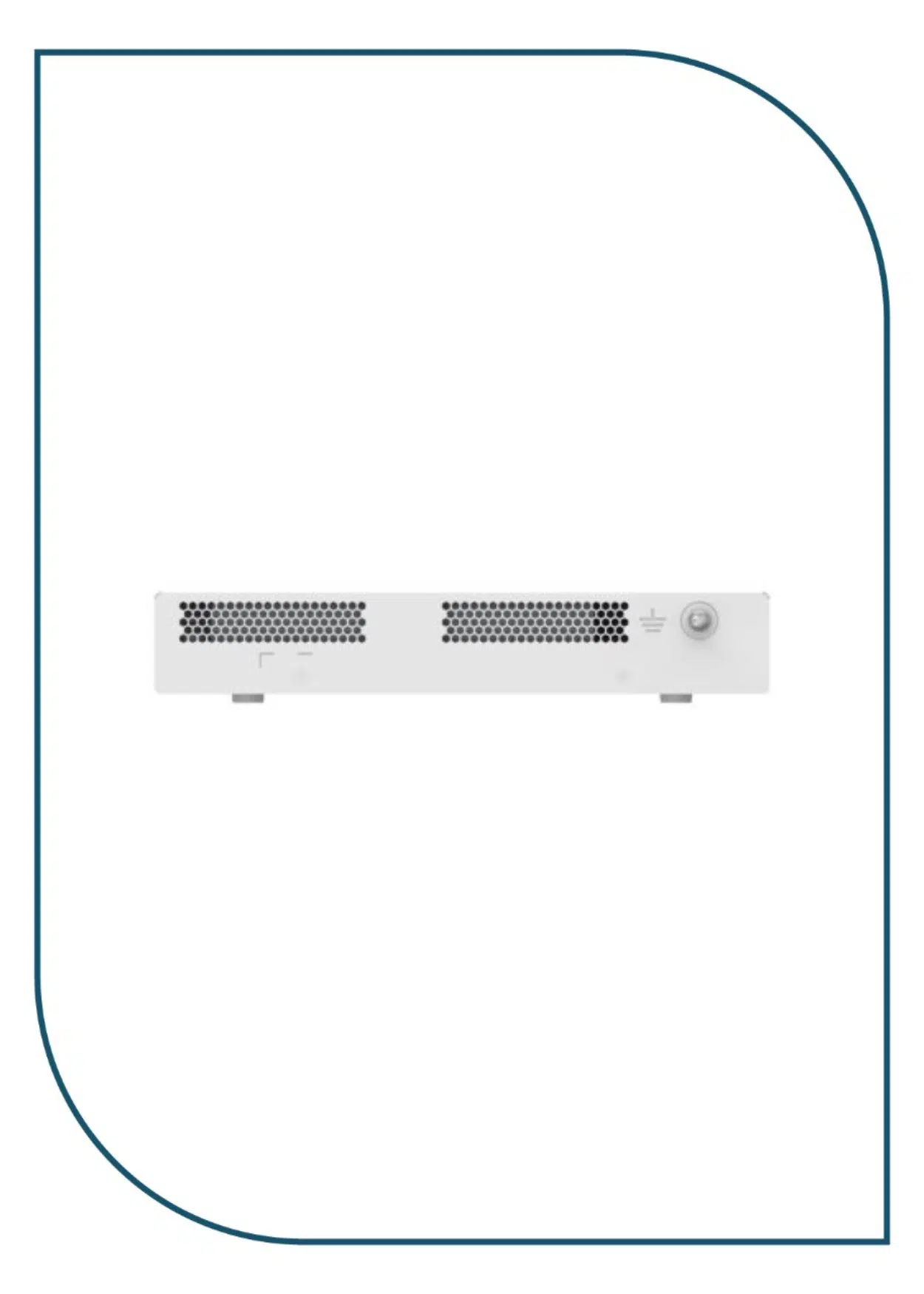

The HUAWEI S380-L4P1T is part of HUAWEI’s S380 multi-service gateway series, designed for small to medium-sized enterprise (SME) networks. Here are its detailed specifications:
S380-L4P1T Key Specifications:
- User Capacity:
- Supports up to 200 users.
- Switching Capacity:
- 8 Gbps.
- Packet Forwarding Rate:
- Upload: 300,000 packets per second (Kpps).
- Download: 420,000 Kpps.
- Bandwidth:
- Egress Bandwidth: 1 Gbps.

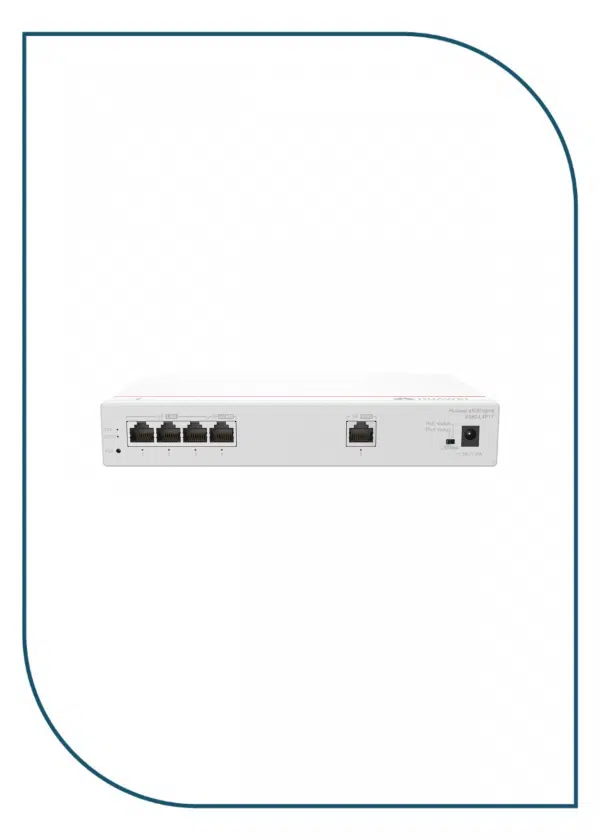

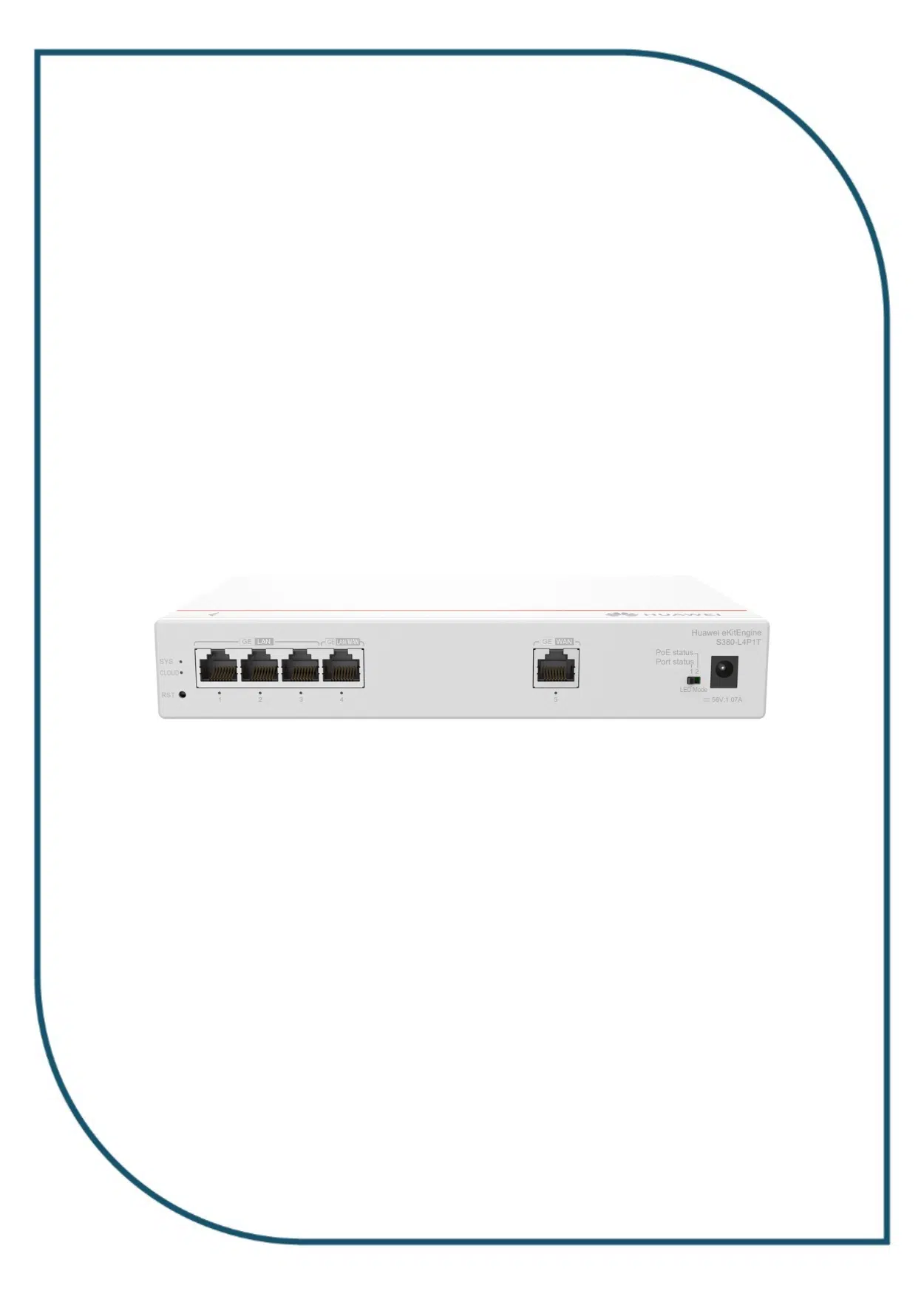

- Physical Ports:
- WAN Port: 1 x 10/100/1000BASE-T port.
- LAN Ports: 4 x 10/100/1000BASE-T ports with Power over Ethernet (PoE+), each offering up to 15.4 W.
- PoE (Power over Ethernet):
- Without PoE: 11.65 W power consumption.
- With PoE: 61.65 W power consumption.
- Memory:
- 512 MB DDR4 RAM.
- 512 MB NAND Flash storage.
- Form Factor:
- Dimensions: 35 mm (H) x 210 mm (W) x 130 mm (D).
- Environmental Conditions:
- Operating Temperature: 0°C to 40°C (32°F to 104°F).
- Storage Temperature: –40°C to +70°C.
- Relative Humidity: 5% to 95% (non-condensing).
- Power Supply:
- Input voltage range: 100-240 V AC.
S380-L4P1T Key Features:
- Flexible Ethernet networking.
- High-performance routing and security features.
- Ideal for SME networking and services.
- Integrated with multiple services such as firewall, VPN, and more.
This model is designed to provide reliable, scalable, and secure networking solutions, making it suitable for environments like small offices, factories, hotels, and educational institutions.
