Description

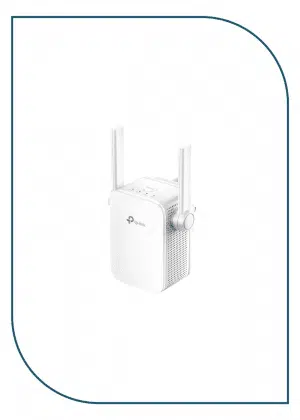

RE205
| HARDWARE FEATURES | |
|---|---|
| Plug Type | EU |
| Ports | 1 x 10/100Mbps Ethernet Port (RJ45) |
| Button | WPS Button, RESET Button |
| Input Power | 100-240V~50/60Hz |
| Power Consumption | 7.2W |
| Dimensions ( W x D x H ) | 3.06 x 1.57 x 3.15 in. (77.8 x 40 x 80 mm) |
| Antenna | 2 External Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 300Mbps at 2.4GHz, 433Mbps at 5GHz |
| Working Modes | Range Extender/Access Point |
| Reception Sensitivity | 5GHz:
11a 6Mbps: -94dBm 11a 54Mbps: -77dBm 11ac HT20: -69dBm 11ac HT40: -66dBm 11ac HT80: -63dBm 2.4GHz: 11g 54Mbps: -79dBm 11n HT20: -77dBm 11n HT40: -74dBm |
| Wireless Functions | Enable/Disable Wireless Radio
DFS (the latest firmware and hardware version is required) Access Control LED Control Power Schedule Wi-Fi Coverage |
| Wireless Security | WEP, WPA/WPA2-PSK encryptions, Enable/Disable SSID Broadcast |
| Transmission Power | 2.4 G≤20dBm, 5 G≤20dBm |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Contents | AC750 Wi-Fi Range Extender RE205
Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
