Name: Discover the AP505 Aruba Access Point R2H25A Features
Brand: Aruba
SKU: R2H25A
Price: 25200.00 EGP
Availability: BackOrder

R2H25A Aruba Access Point AP505

R2H25A

R2H25A. HPE Aruba Networking AP-505 (EG) Dual Radio 2×2:2 802.11ax Internal Antennas Unified Campus AP. R2H26A.

Buy Now

Availability: Available on backorder

SKU:R2H25A

Brands:Aruba

Brand: Aruba

Description

R2H25A

Aruba AP-505 (EG) Unified AP R2H25A

Aruba AP-505 (EG) dual radio 2×2:2 802.11ax internal antennas unified campus AP R2h25a

KEY FEATURES

49 Gbps maximum real-world speed (HE80/HE20)
WPA3 and Enhanced Open security
Built-in technology that resolves sticky client issues for Wi-Fi 6 and Wi-Fi 5 devices
OFDMA for enhanced multi-user efficiency
IoT-ready Bluetooth 5 and Zigbee support

TechnicalSpecifications
Ports	(1) 10/100/1000BASE-T

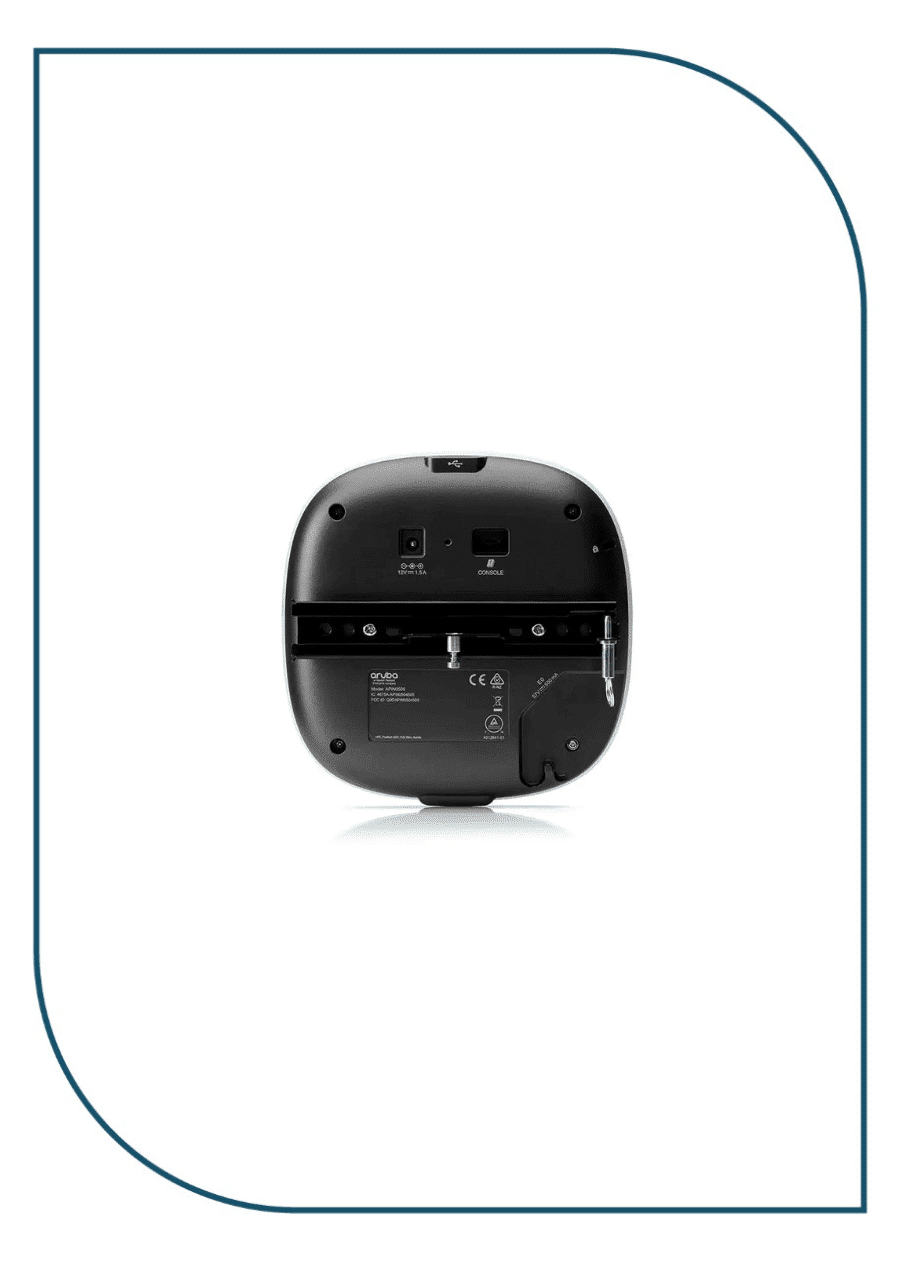

Mounting	Mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately) see the 500 Series Ordering Guide for details.
Input voltage	IEEE 802.3af or 802.3at PoE, or direct DC power (via optional power supply)
Power Consumption	POE powered (802.3at): 11.0W / 16.5W. POE powered (802.3af): 11.0W / 13.5W. DC powered: 8.9W / 14.2W. Maximum (worst-case) power consumption (without / with a USB device attached).
Wi-Fi antenna	Two integrated dual-band downtilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 4.9dBi in 2.4GHz and 5.7dBi in 5GHz.
Radio coverage	Dual radio, 5GHz and 2.4GHz IEEE 802.11ax 2×2 MIMO. Maximum data rates of 1.2Gbps in the 5GHz band and 574Mbps in the 2.4GHz band (for an aggregate peak data rate of 3.55Gbps).
Product Dimensions (imperial)	1.5 x 6.3 x 6.3 in
Weight	1.1 lb

Mounting Options	Ceiling Mount, wall mount
No of Users (recommended)	+150 Users
POE	Support POE
Ports	1 Port
Wifi	WIFI 6
Wireless Bands	Dual Bands
Antenna Configuration	Integrated Omni-Directional
Management Platform	Aruba Central, Controller Managed
Max Data Rate	1200 Mbps (5 GHz), 574 Mbps (2.4 GHz)
MIMO Capabilities	2×2
Ports Speed	1G
Security Standards	OWE, WPA3
Smart Mesh	Supported
