Description

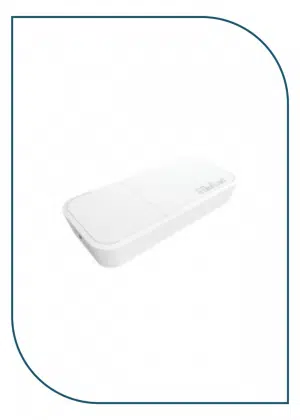

RBwAP2nD
Specifications
| Details | |
|---|---|
| Product code | RBwAP2nD |
| Architecture | MIPSBE |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 185 x 85 x 30 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -40C to +70C |
| Suggested price | $45.00 |
Wireless capabilities
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | QCA9533 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 11-57 V |
| Max power consumption | 4 W |
| PoE in | 802.3af/at |
| PoE in input Voltage | 11-57 V |
Certification & Approvals
| Details | |
|---|---|
| Certification | FCC, IC |
| IP | IP20 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
