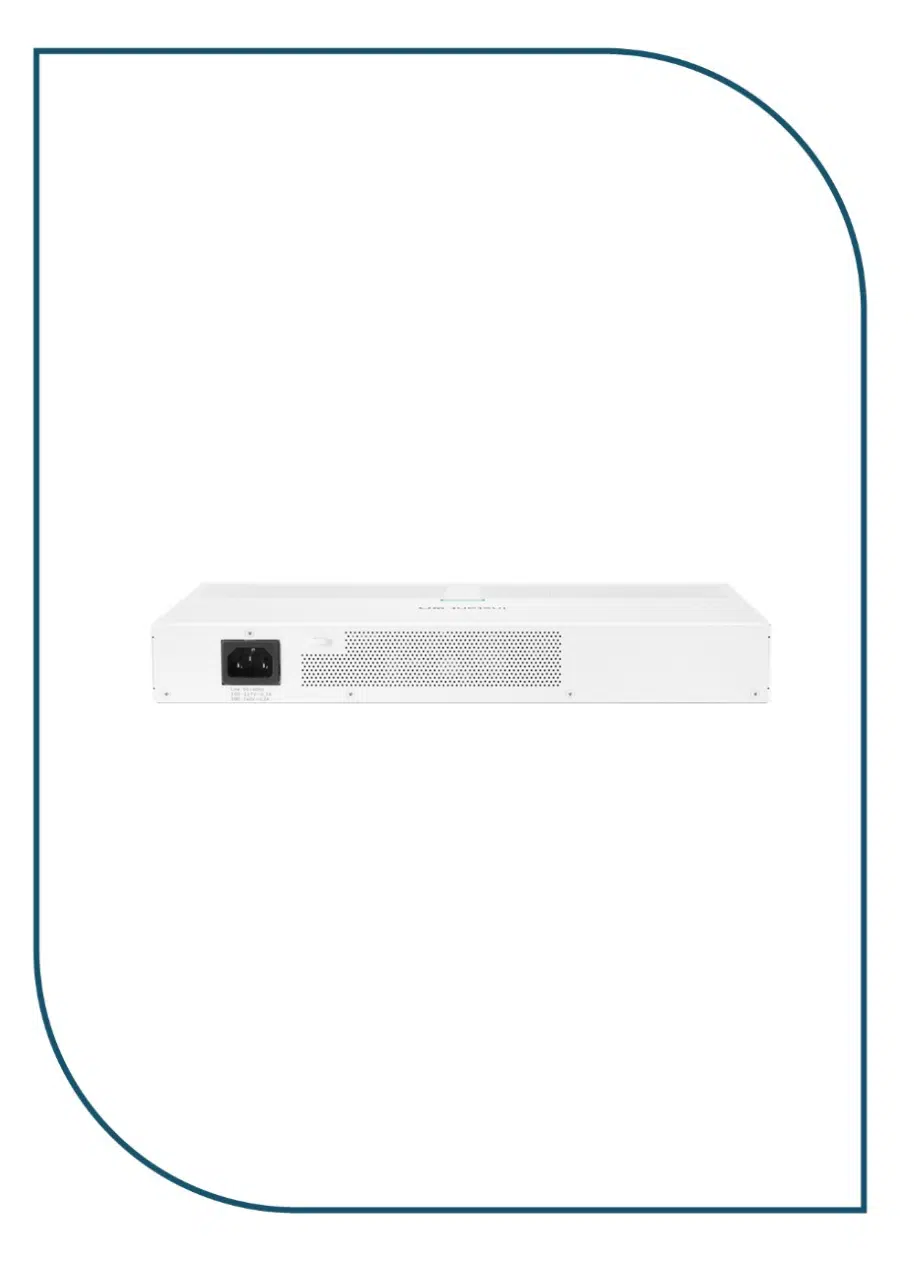

R8R49A

Datasheet

Differentiator Affordable, plug-and-play, unmanaged series for small businesses looking for simple reliable, and low-cost network connectivity, offering Layer 2 Ethernet switching capabilities to help connect printers and access points, without any complicated network configuration or management needed. With fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these unmanaged switches deliver simple, reliable connectivity for the smallest SMBs and home offices.

Power consumptionMaximum: 11.7W Idle: 3.2W

Input voltage100-127VAC / 200-240VAC, depending on model

Ports24 RJ-45 10/100/1000 ports

Switching capacity48 Gbps

Throughput35.71 Mpps

Memory and processor128Kb EEPROM; Packet buffer size: 2.0 Mb

Power supply nameInternal Power Supply

PoE capability–

Operating temperature0°C to 40°C, 32°F to 104°F

Management featuresUnmanaged

WarrantyLimited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration.

Detailed product description24 RJ-45 autosensing 10/100/1000 ports
1U – Height

Weight1.91 kg (4.20 lb)

Dimensions22.5 x 34.0 x 4.4 cm (8.86 x 13.38 x 1.73 in)

R8R49A
