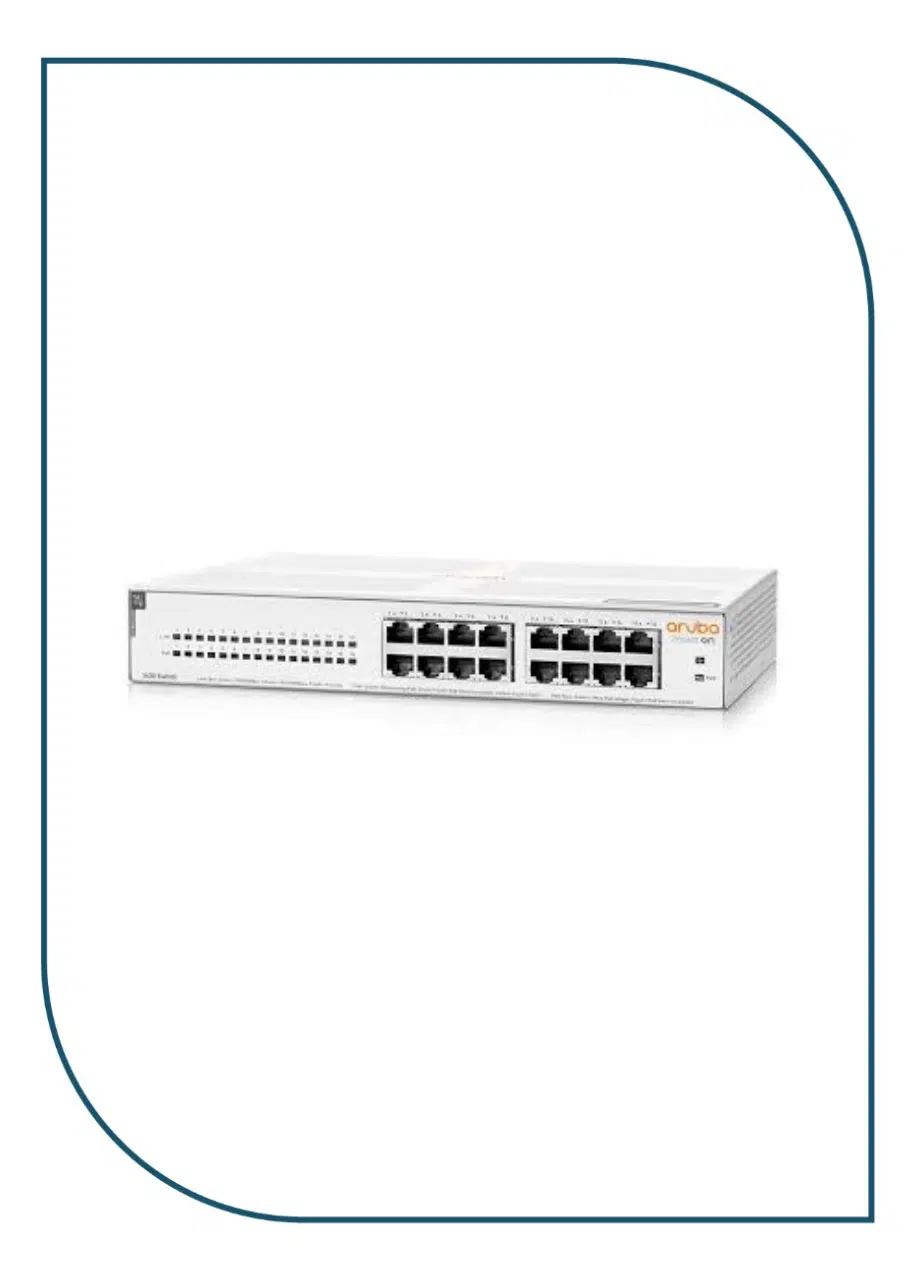

R8R48A

Datasheet

Differentiator Affordable, plug-and-play, unmanaged series for small businesses looking for simple reliable, and low-cost network connectivity, offering Layer 2 Ethernet switching capabilities to help connect printers and access points, without any complicated network configuration or management needed. With fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these unmanaged switches deliver simple, reliable connectivity for the smallest SMBs and home offices.

Power consumptionMaximum: 147W Idle: 5W

Input voltage100-127VAC / 200-240VAC, depending on model

Ports16 RJ-45 10/100/1000 Class 4 PoE ports

Switching capacity32 Gbps

Throughput23.80 Mpps

Memory and processor128Kb EEPROM; Packet buffer size: 2.0 Mb

Power supply nameExternal Power Adapter

PoE capability124W Class 4 PoE

Operating temperature0°C to 40°C, 32°F to 104°F

Management featuresUnmanaged

WarrantyLimited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration.

Detailed product description16 RJ-45 autosensing Class4 PoE 10/100/1000 ports
1U – Height

Weight2.09 kg (4.60 lb)

Dimensions26.0 x 27.5 x 4.4 cm (10.24 x 10.83 x 1.73 in)

• No configuration or management needed.
• Plug-and-play with fully automated functions and zero ongoing maintenance.
• Up to 124W of PoE to power APs, IP Phones, and other IoT devices.
• Fan-less design for silent deployment in office spaces.
