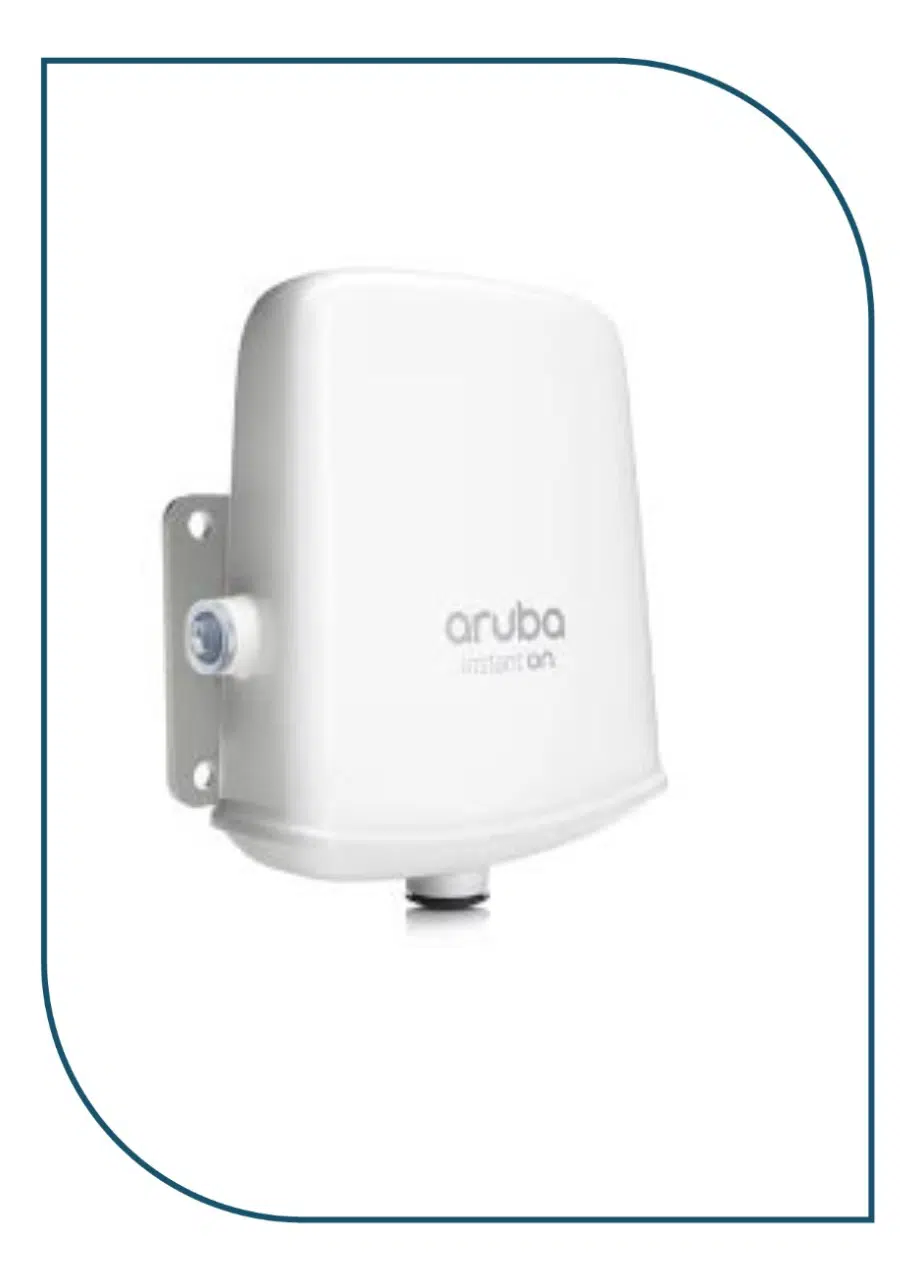

R2X12A

Datasheet

CertificationsWPA2 ,WPA3 ,Enhanced Open (OWE)
Wi-Fi Alliance certified (WFA) 802.11ac Wave 2 (Wi-Fi5)

Input voltage Power over Ethernet (PoE): 802.3af power consumption 13.5W max

Regulatory IEC 60950/62368 CB
UL2043 for air-handling space (plenum rating)

Wi-Fi antenna Two dual-band omni- directional antennas (4.7 dBi gain at 2.4 GHz, 4.2 dBi gain at 5 GHz)

Connectivity, standard  IEEE 802.11ac, 802.11n

Ports(1) uplink Gigabit Ethernet port, with POE-in support (802.3af)

Mounting The access point ships with a mount bracket, can be mounted on the wall or a pole

Radio coverage Dual Radio for simultaneous dual-band operation
5 GHz 802.11ac 2×2 MIMO for up to 867 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
2.4 GHz 802.11n 2×2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)

Warranty Aruba Instant On 2 Year warranty with 24X7 phone support for first 90 days and chat support for the entire warranty period. Community support as long as you own the products.

Differentiator Aruba Instant On AP17 Outdoor Access Points offer a reliable, affordable, and business-grade Wave 2 802.11ac Wi-Fi experience for small business environments requiring high performance like smaller manufacturing units and open air restaurants. These cost-effective access points are ideal for small businesses, scaling up to 25 access points without additional cost and complexity. Regulatory domain of Egypt.

Weight650 g (1.4 lb)

Dimensions187 x 156 x 67 mm (7.4 x 6.1 x 2.6 in)
