Description

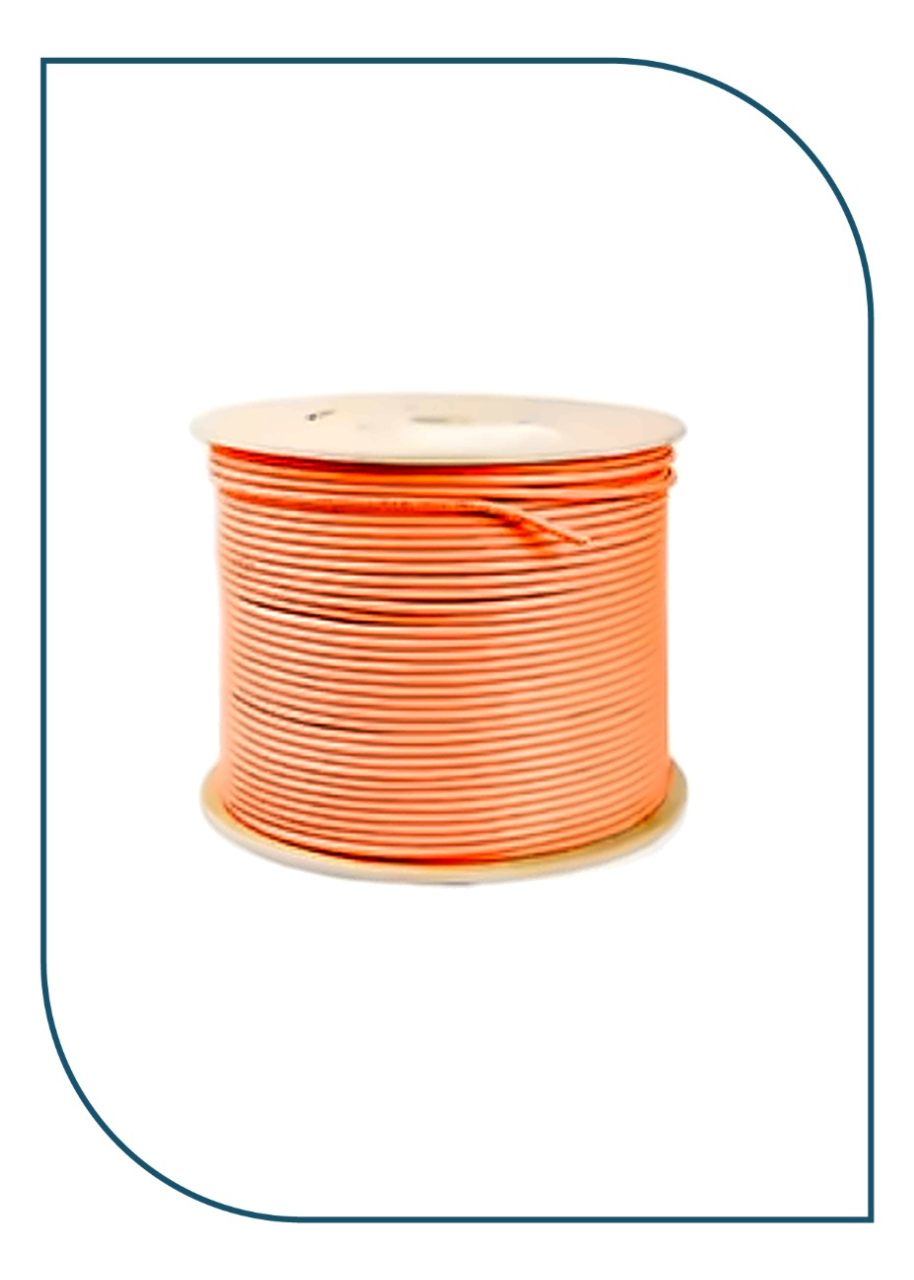

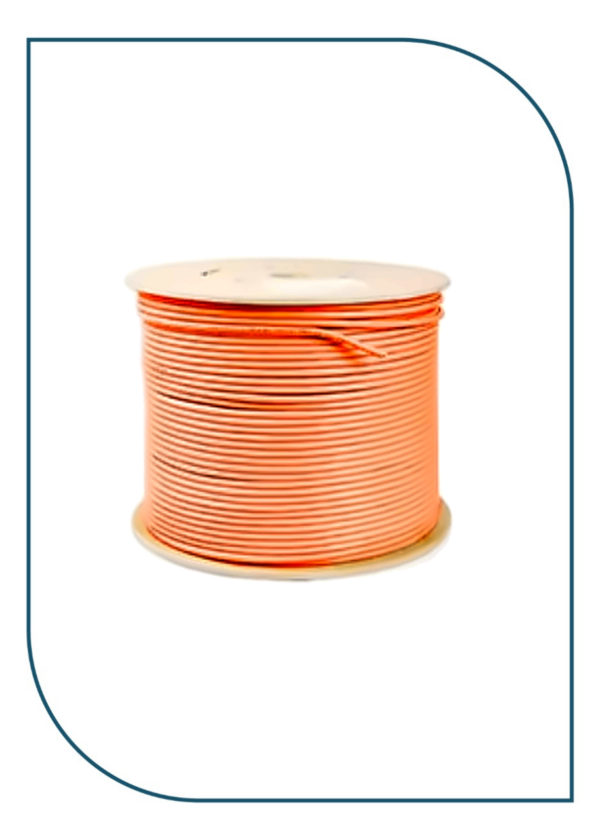

The ProLink CAT6 Cable is a high-quality unshielded (U/UTP) network cable with T568B wiring, designed to connect network equipment to patch panels and telecommunication outlets. It fully meets the requirements of Category 6, Class E (250 MHz) according to the ISO/IEC 11801 standard, delivering reliable Gigabit Ethernet performance for offices, data centers and structured cabling projects.
Its LSZH (Low Smoke Zero Halogen) jacket releases minimal smoke and no toxic halogen gases in case of fire, which makes it the safer choice for hospitals, schools, malls, government buildings and any enclosed space where safety regulations matter.
Every cord is individually tested and marked with a quality stamp, and it is backward compatible with Cat5e. The wide strain-relief boot protects the connector during daily use, and labeling is possible on the strain relief or through color coding. The orange color makes it easy to separate and identify specific networks or connections in the rack.
| Specification | Value |
|---|---|
| Brand | ProLink |
| Category | CAT6 – Class E |
| Cable Type | U/UTP (Unshielded) |
| Wiring | T568B |
| Bandwidth | Up to 250 MHz |
| Standard | ISO/IEC 11801 |
| Conductor | AWG 23/7 (stranded) |
| Number of Pairs | 4 |
| Jacket | LSZH (Low Smoke Zero Halogen) |
| Outer Diameter | Max. 6.0 mm |
| Impedance | 100 Ω |
| Plug Housing | Polycarbonate |
| Contacts | Phosphor bronze (CuSn6) |
| Contact Plating | 0.7 µm selective gold plate |
| Current Rating | 1.5 A max @ 25°C |
| Voltage Rating | 150 VAC max |
| Dielectric Withstanding Voltage | 1000 VAC, 1 min (60 Hz) |
| Insulation Resistance | 250 MΩ min |
| Connector Compliance | IEC 60603-7 |
| Available Lengths | 0.25m, 0.5m, 1m, 3m, 5m, 10m |
| Available Colors | Blue, White, Gray, Yellow, Black, Orange |
| Backward Compatibility | Cat5e |
