Description
PL-C6ASF-LSZH-W

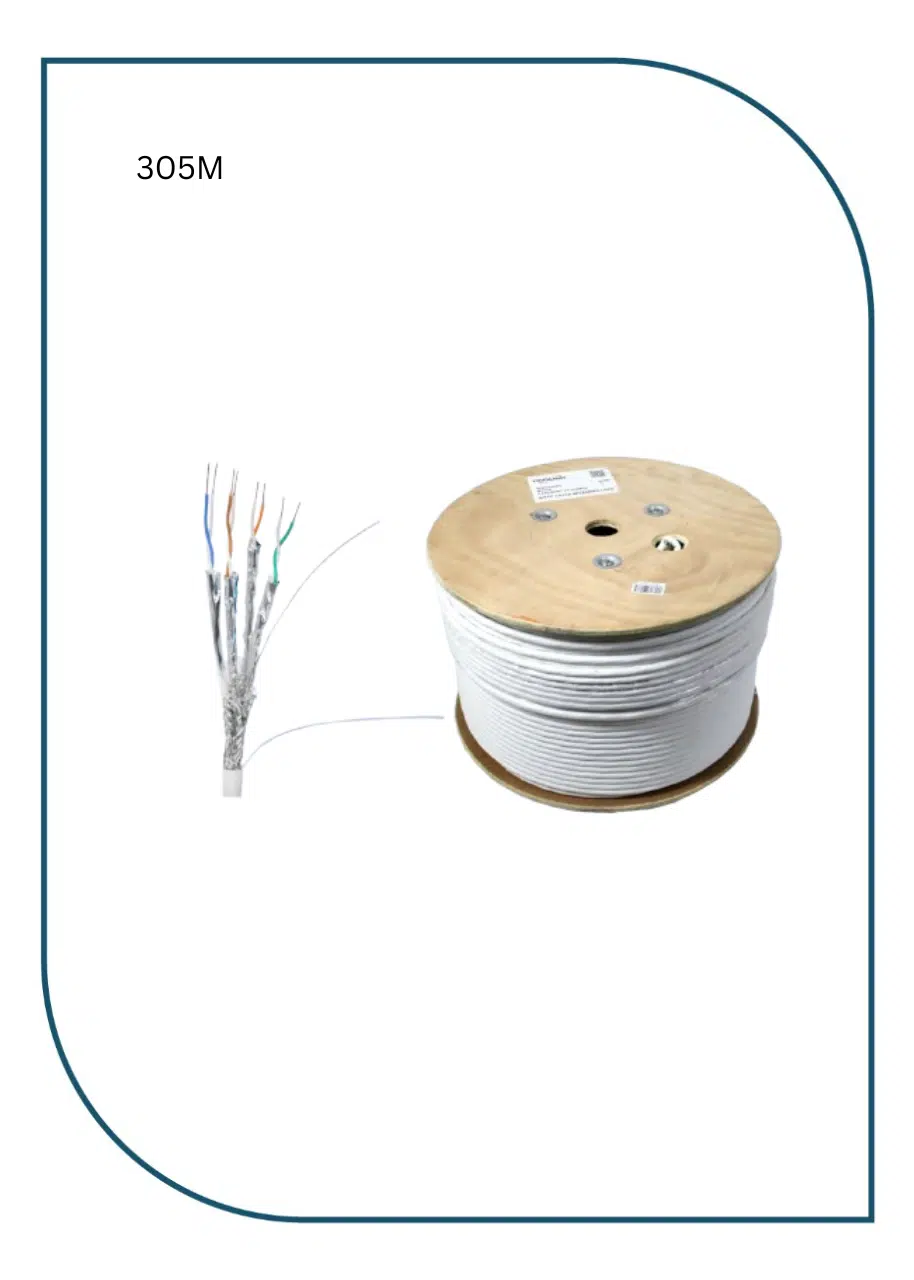

The PL‑C6A‑LSZH‑W is a premium Category 6a Ethernet cable designed for enterprise‑grade networking where performance and safety are critical. Built with 23 AWG solid copper conductors, it delivers superior signal integrity and supports 10 Gigabit Ethernet over distances up to 100 meters.
Featuring a Low Smoke Zero Halogen (LSZH) jacket, this cable minimizes toxic emissions and smoke in case of fire, making it ideal for data centers, hospitals, schools, and public buildings where safety compliance is essential.
✨ Key Features
- Category 6a performance: Supports 10GBASE‑T Ethernet with bandwidth up to 500 MHz.
- 23 AWG solid copper conductors: Ensures low resistance and reliable PoE/PoE+ power delivery.
- LSZH jacket: Safer in enclosed environments, reducing smoke and halogen gas emissions.
- White color (W): Clean aesthetic for modern installations.
- Standards compliant: Meets ANSI/TIA and ISO/IEC requirements for Cat6a cabling.
- Applications: High‑speed LANs, VoIP, Wi‑Fi 6/7 access points, IP cameras, and enterprise backbone connections.
- Description
- Conductor: Bare solid copper wire AWG23 (≥ Ø 0.56 mm)
- Insulation:≤ Ø 1.35 mm Nominal
- Twisting: 2 cores to the pair (shielded and foil-twisted pair )Cable lay-up: 4 pairs to the core
- Cable core lying: Waterproof compound to prevent moisture migration and water protection.
-
- Sheath: White, LSZH
