Description

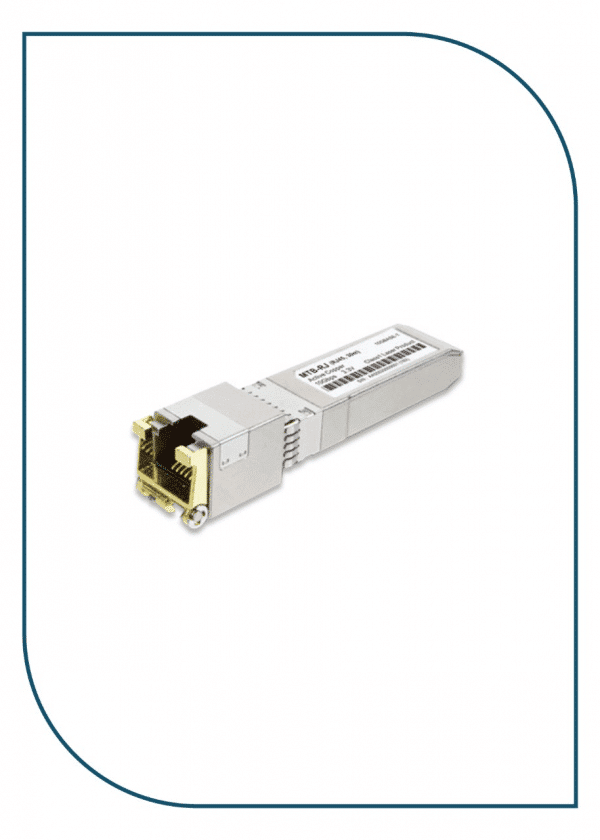

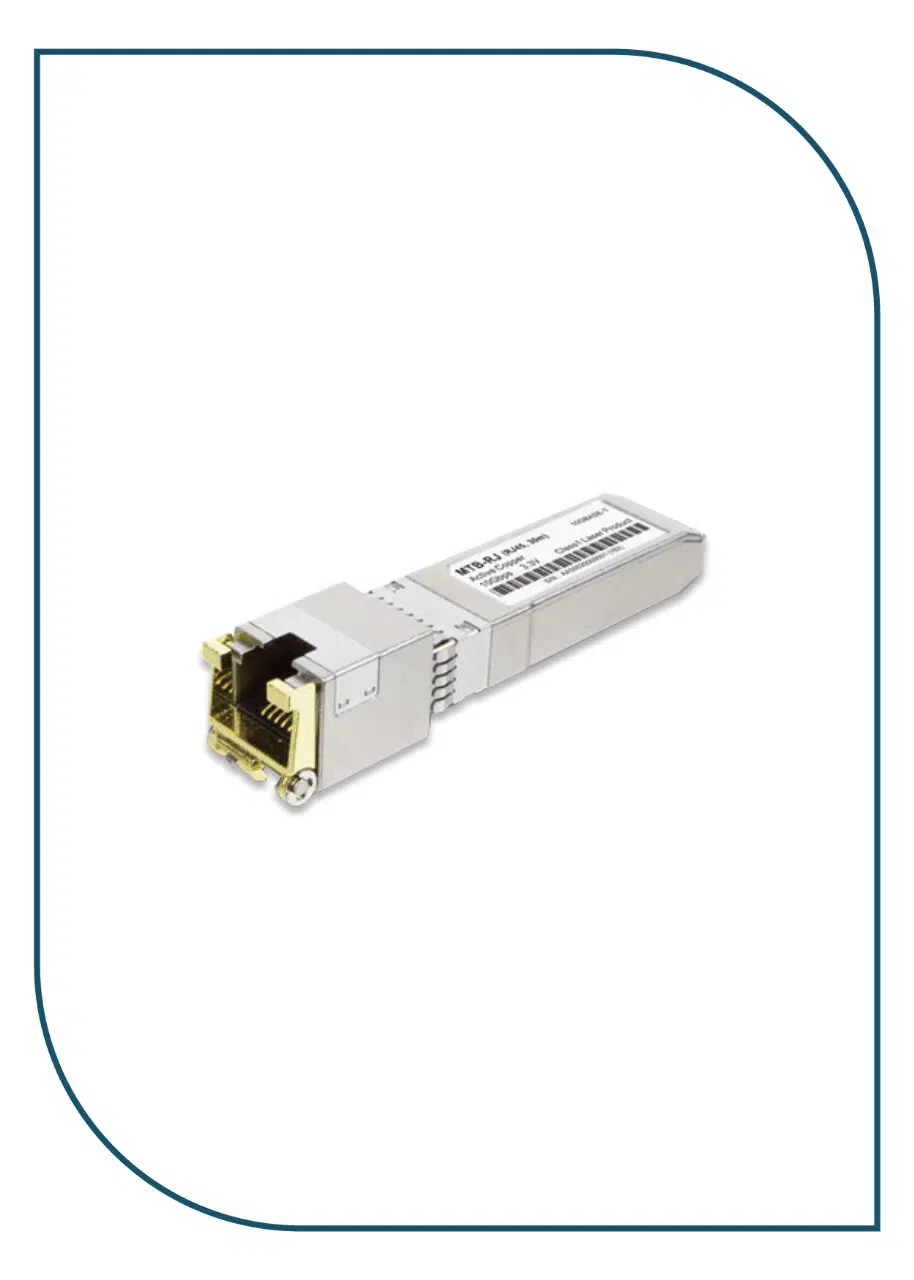

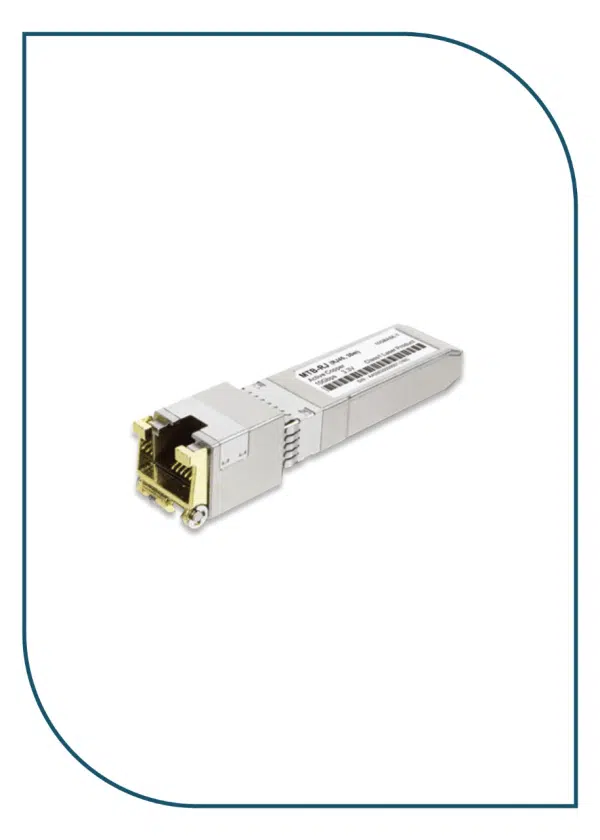

MTB-RJ
Key Features :
- Complies with the IEEE 802.3ae 10 Gigabit Ethernet Standard
- Compact RJ45 connector assembly
- SFP+ multi-source agreement compliant
- SFF-8472 diagnostic monitoring interface for optical transceivers
- For established fiber link distance up to 300m over 50/125μm multi-mode fiber cable
- For established fiber link distance up to 60km over 9/125μm single-mode fiber cable

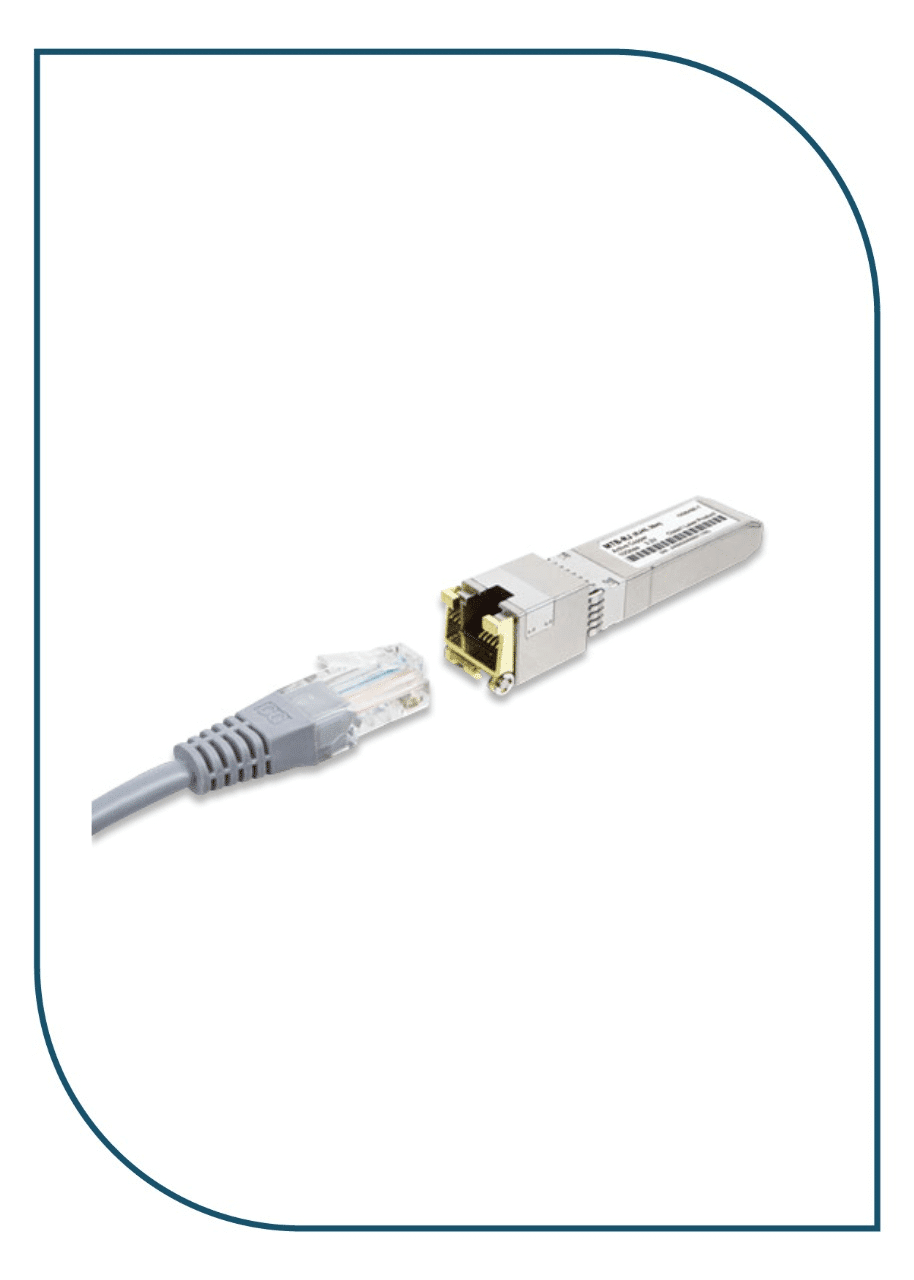

- Cost-effective at up to 30m distance on UTP cables
- 10 Gigabit Ethernet over Cat6a/Cat7 cable
- Plug and Play Installation
MTB-RJ Applications:
Applying 10Gbps SFP+ with 10G PCI Express Server Adapter (ENW-9801)

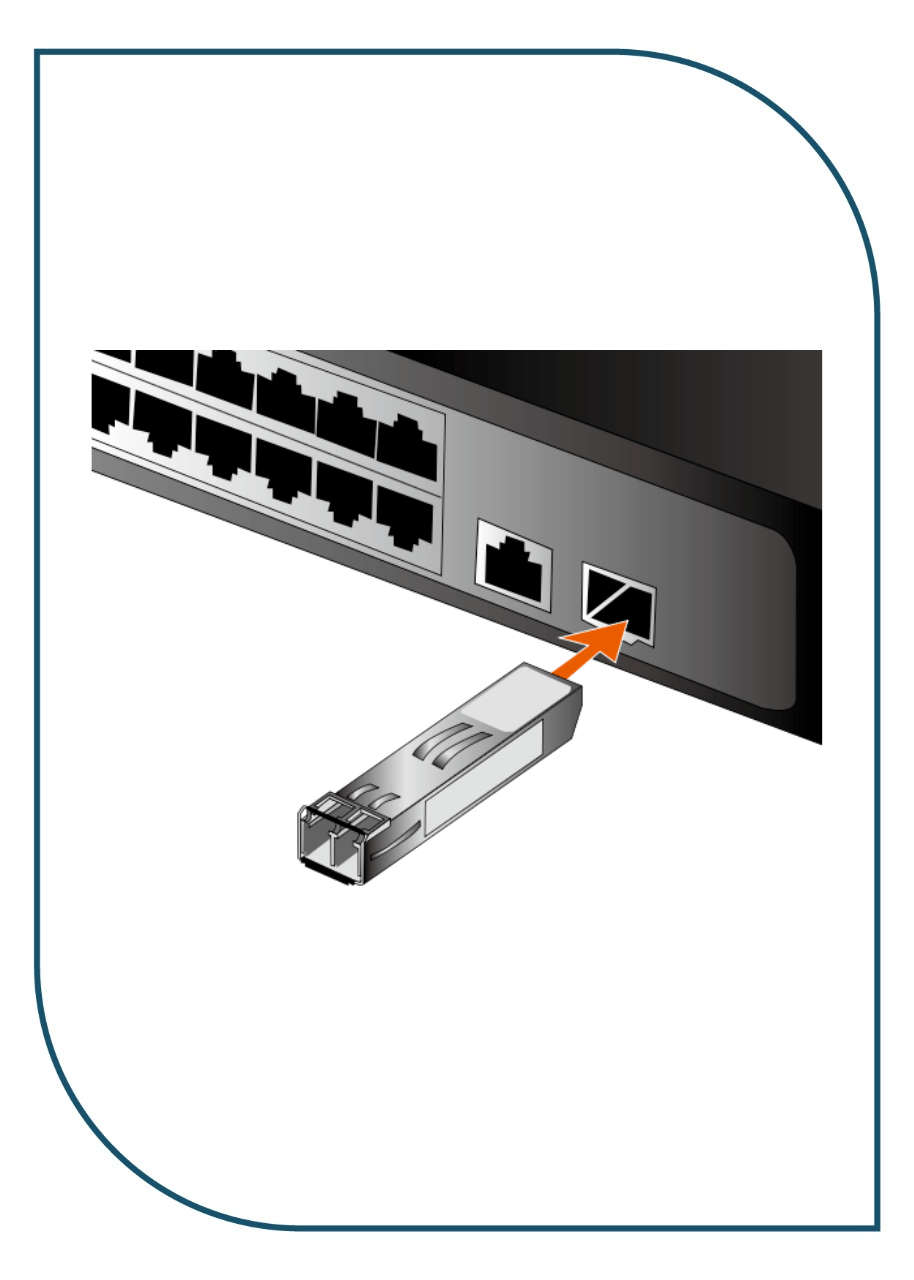

The 10GBASE-LR/SR/BX/T mini-GBIC module can be installed into PLANET products with 10G SFP+ interface like PLANT ENW-9801 PCI-e NIC card. The 10G SFP+ slots of the ENW-9801 are hot-pluggable and hot-swappable. With the ENW-9801 installed in the PC, you can plug and pull out the 10GBASE-LR/SR/BX/T mini-GBIC module in and from the 10G SFP+ slot of the ENW-9801, respectively, without having to power off the PC.
The MTB-T series 10GBASE-SR/LR/BX transceiver is an ideal solution for -40 to 85 degrees C wide temperature industrial equipment with 10GBASE-SR/LR/BX SFP interfaces. The deployment distance can be extended from 300m (multi-mode, LC) to 10/20/40/60 kilometers (single-mode, LC).
