Description

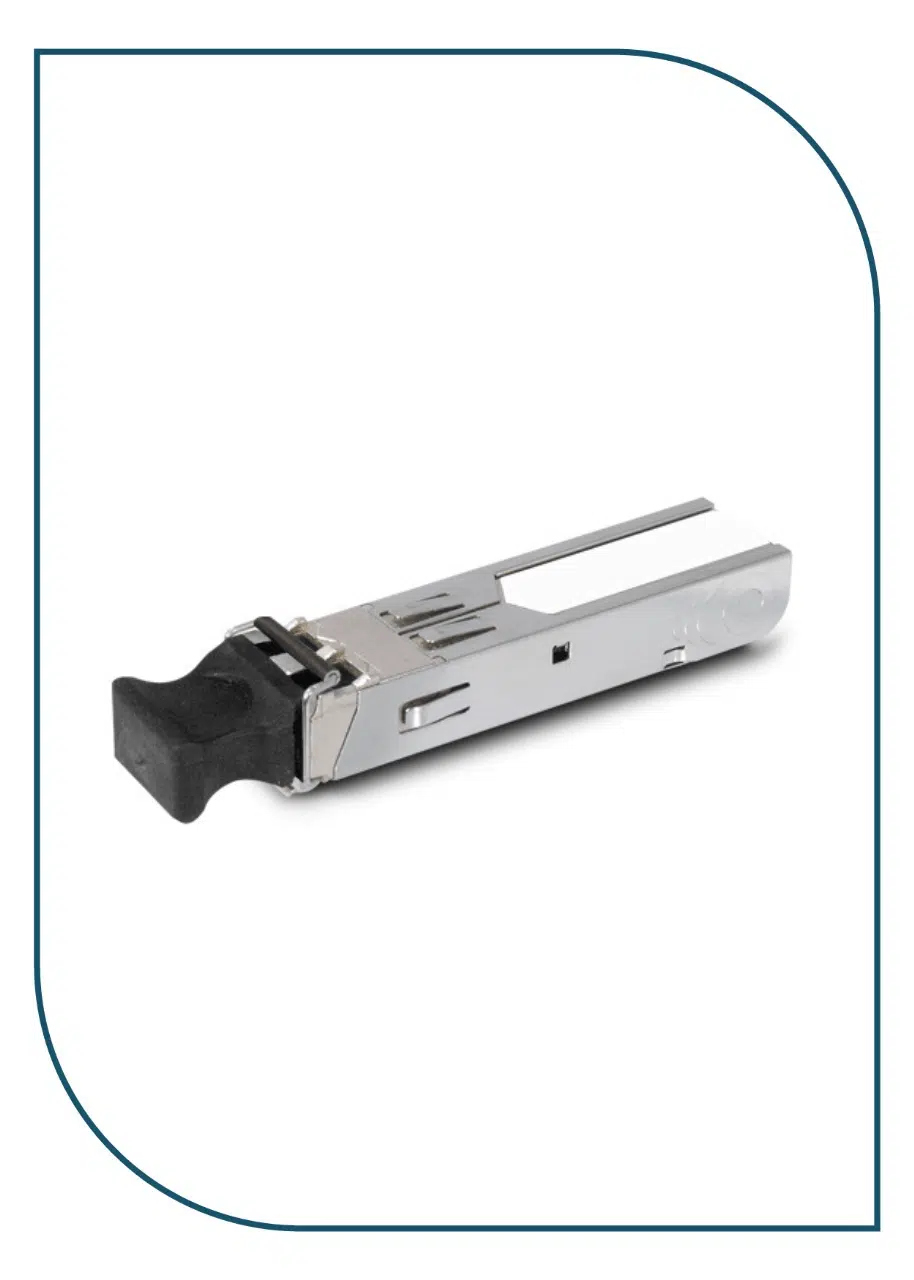

The PLANET MGB-TSX2 is an industrial-grade Mini GBIC (SFP) fiber optic transceiver designed for reliable Gigabit Ethernet transmission over multi-mode fiber.
It supports 1000Base-SX networking with a transmission distance of up to 2km and is ideal for harsh industrial environments thanks to its wide operating temperature range (-40°C to 75°C).
The module supports DDM (Digital Diagnostic Monitoring), allowing real-time monitoring of parameters such as temperature, voltage, and optical power.
It is fully compliant with the SFP MSA standard and compatible with PLANET Technology switches and other standard SFP-enabled networking devices.
| MGB-TSX2 | |
| PHY Type | IEEE 802.3z 1000BASE-SX |
| Fiber Type | Multi-Mode |
| Connector | LC |
| DDM | Yes |
| Wavelength | 1310nm |
| Maximum Distance | 2km |
| Operating Temperature | -40 ~ 75 degrees C |
