Description

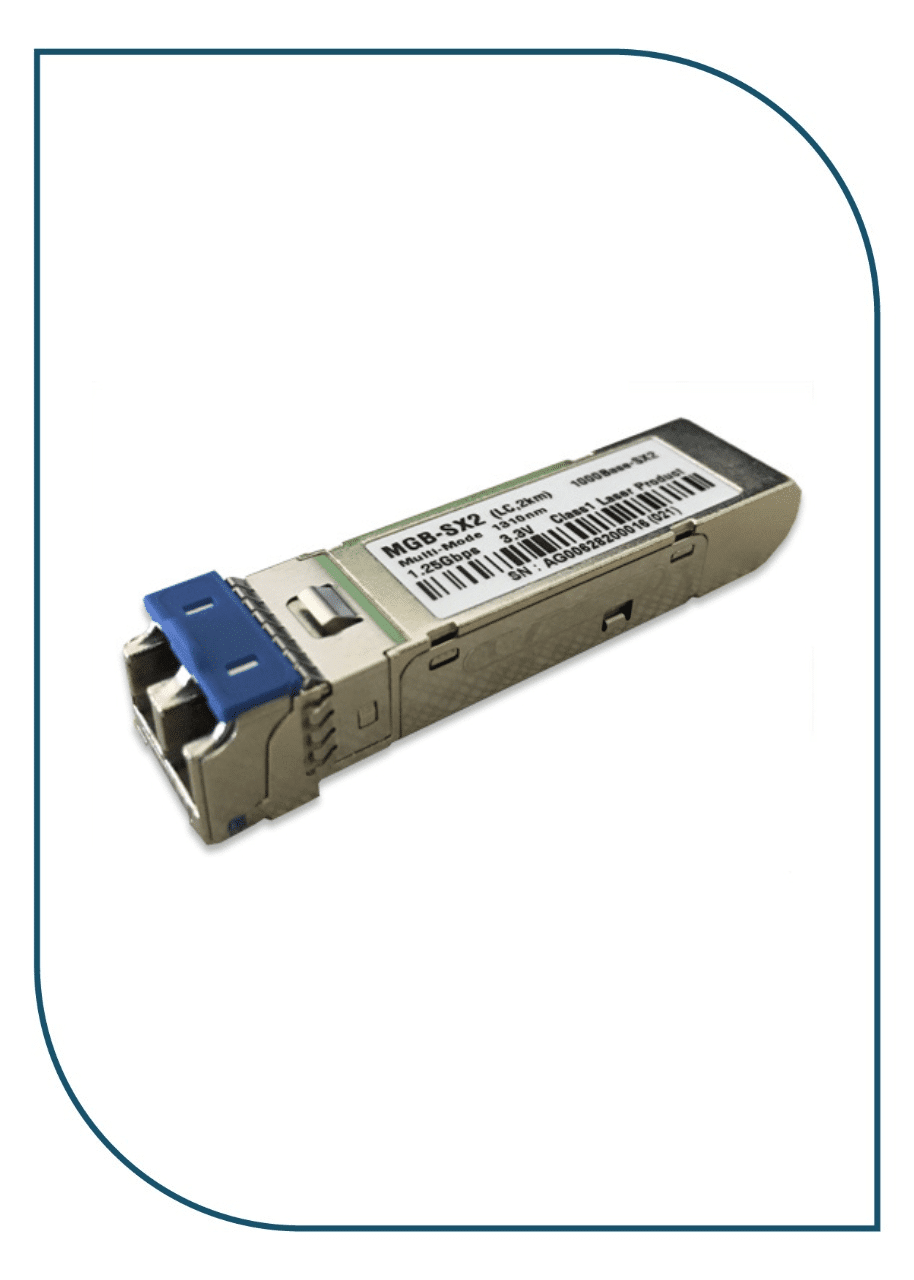

MGB-SX2
Key Features :
- Complies with the IEEE 802.3ab/802.3z Gigabit Ethernet standard
- One 1000Mbps TP/LC fiber port
- Duplex/Single LC connector
- Differential PECL inputs and outputs
- Single power supply 3.3V
- TTL signal detection indicator
- Hot pluggable
- Class 1 laser product complies with EN 60825-1
- Plug and Play Installation
MGB-SX2 Applications :

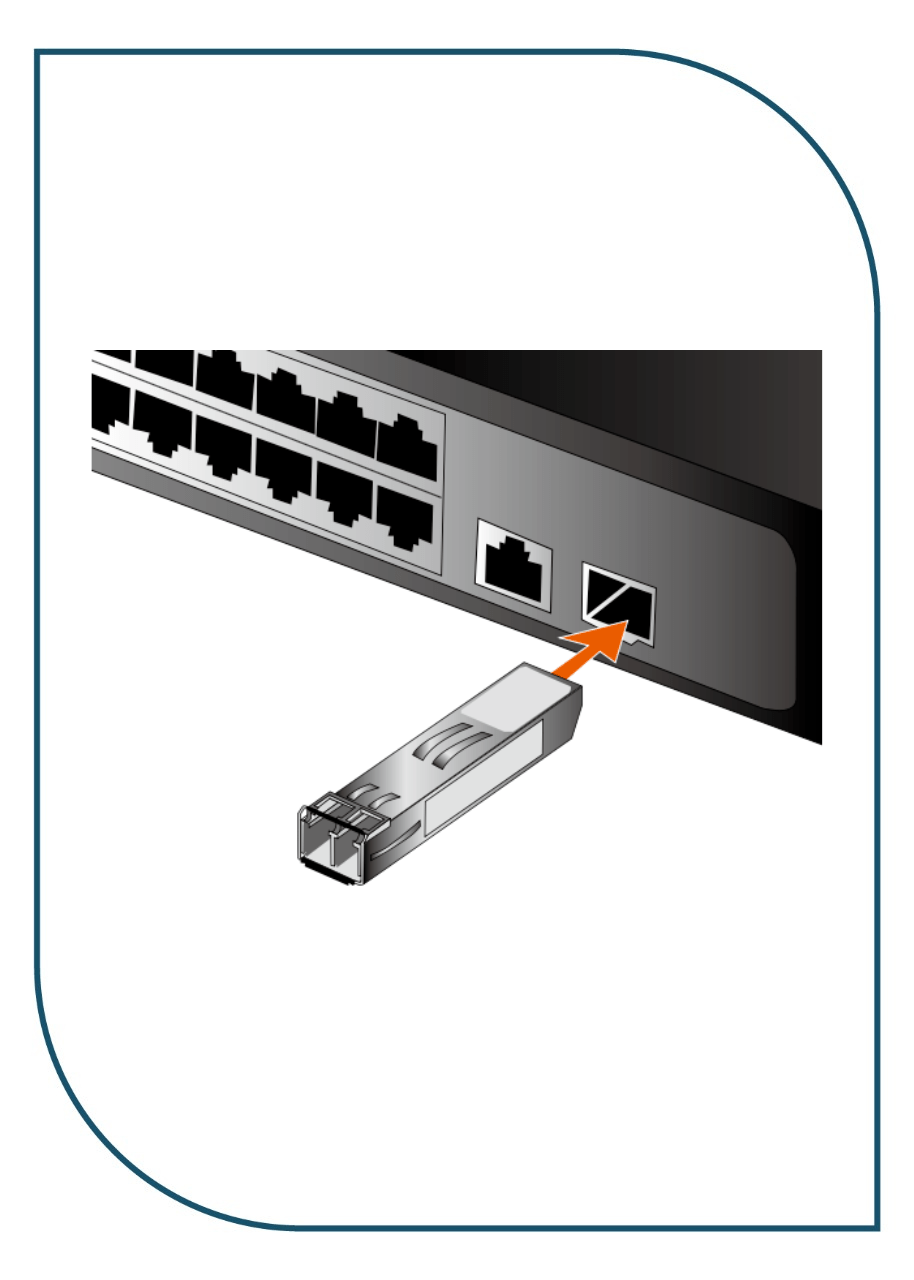

The MGB family of the SFP Gigabit Ethernet module can be installed into PLANET Switch and Media Converter products with 1000BASE-SX/LX/BX SFP interface. The deployment distance can be extended from 550m (Multi-mode, LC) to up to 120 kilometers (Single-mode, LC). The SFP transceivers are hot-pluggable and hot-swappable. You can plug in and pull out the transceivers to/from any SFP port without having to power off the Switch/Media Converter.
The MGB-T series 1000BASE-SX/LX/BX transceiver is an ideal solution for -40℃ to 85℃ wide temperature industrial equipment with 1000BASE-SX/LX/BX SFP interfaces. The deployment distance can be extended from 550m (Multi-mode, LC) to 10/20/40/80 kilometers (Single-mode, LC).
