Description

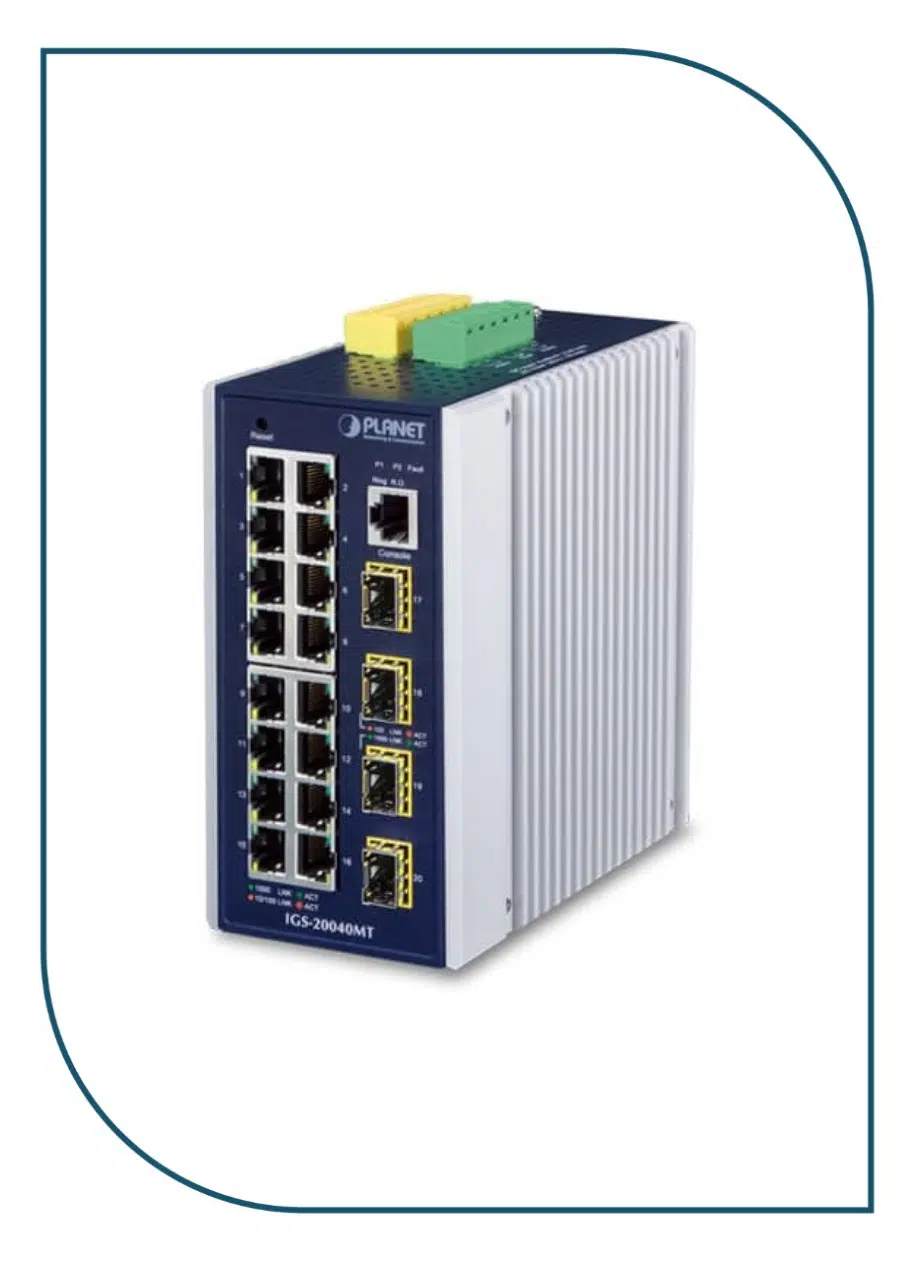

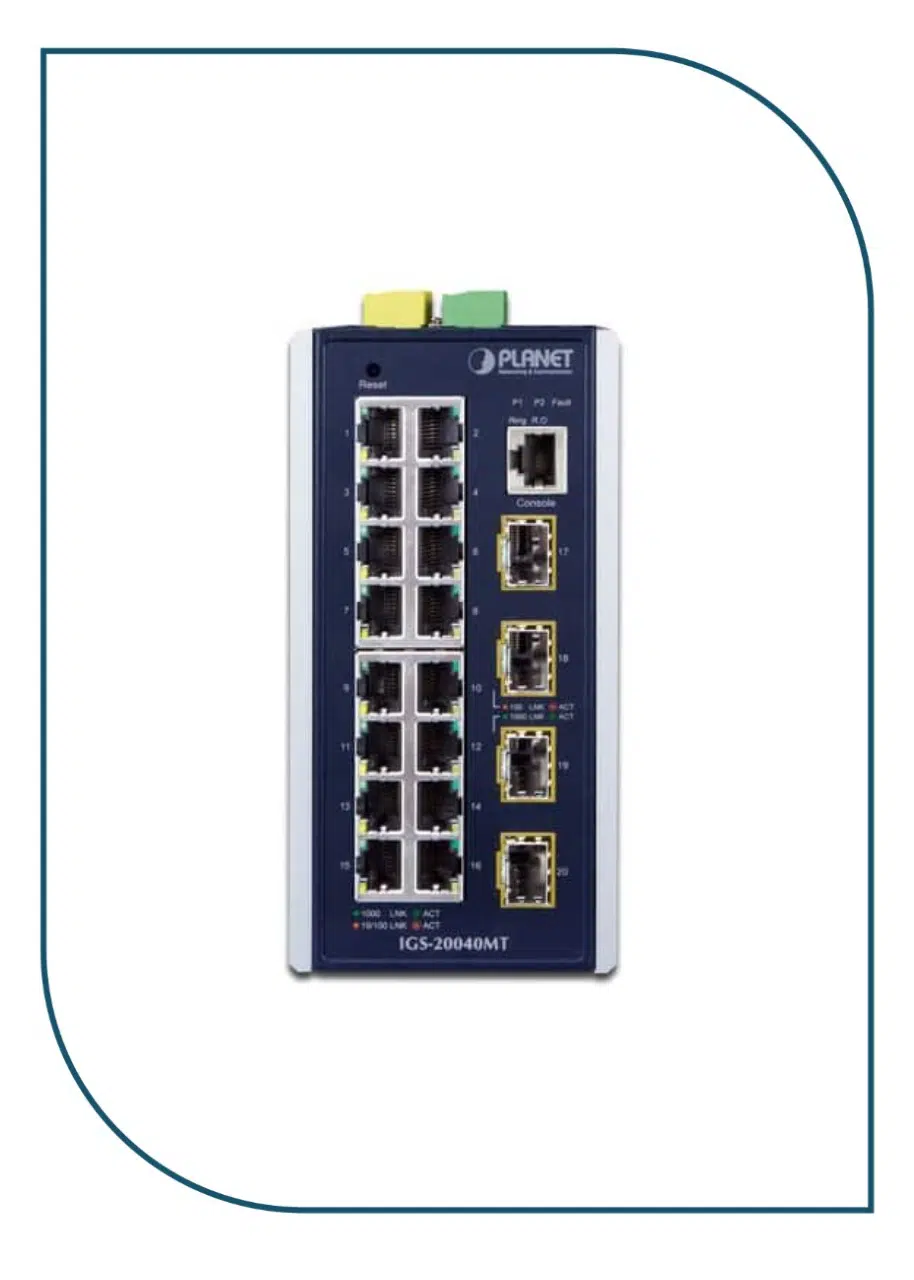

PLANET IGS-20040MT is a fully-managed Gigabit fiber switch usually designed for the industrial network. It features 16 10/100/1000BASE-T copper ports, 4 100/1000BASE-X SFP ports and redundant power system in an IP30 rugged but compact-sized case that can be installed in any difficult environment without space limitation. It provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions and Layer 3 static routing capability. The IGS-20040MT can operate stably under the temperature range from -40 to 75°C and allows either DIN-rail or wall mounting for efficient use of cabinet space. With 4 dual-speed SFP fiber slots, it can be flexibly applied to extend the connection distance.
features:
- Ports: 16 10/100/1000Base-TX + 4 100/1000X SFP
- Type of Switch: Managed
- Switch Fabric: 40Gbps / non-blocking
- Power Consumption: 8W/ 27BTU (system on), 17W/ 57BTU (full loading)

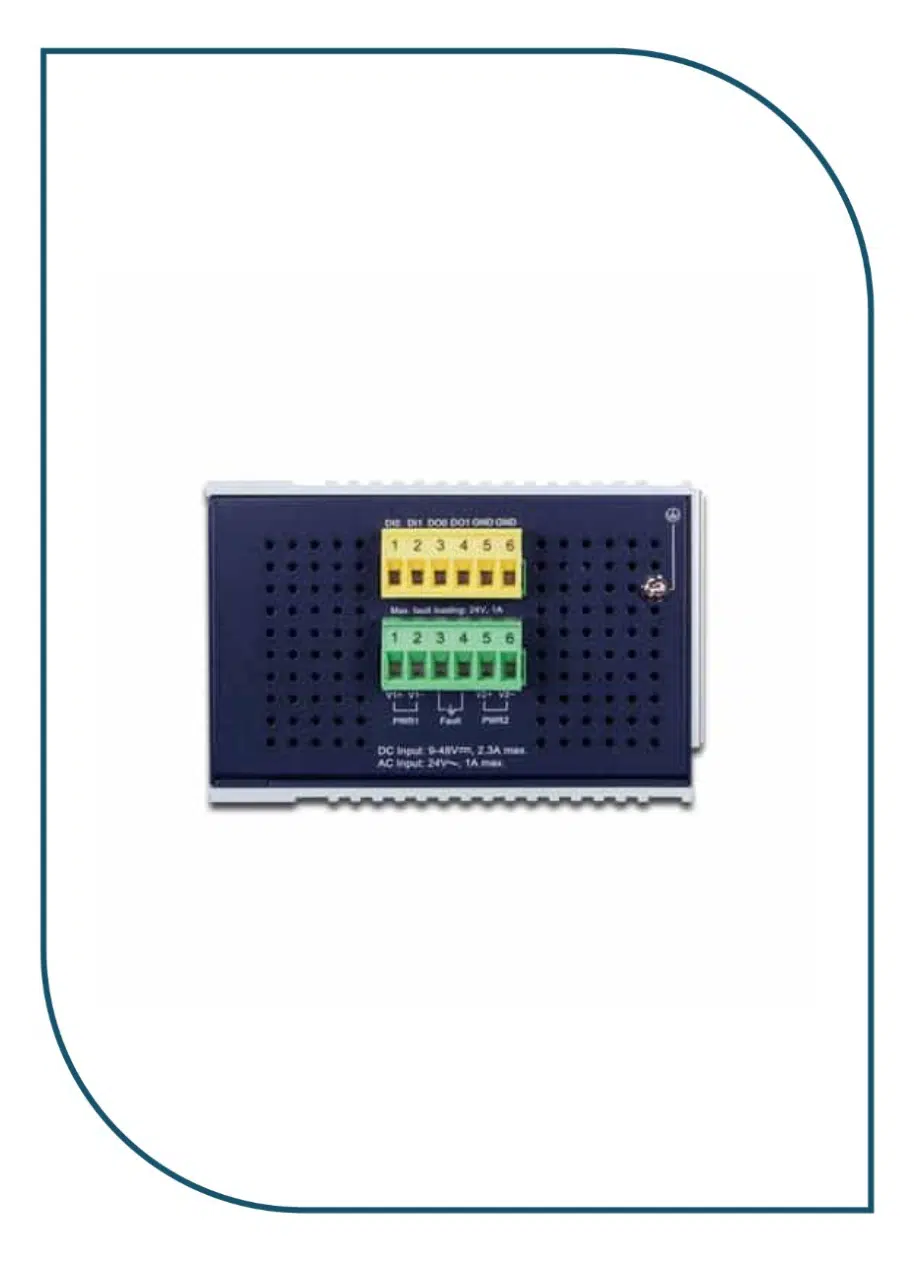

- Power Requirement: 9V – 48V DC, 24V AC
- Throughput: 29.6Mpps@64bytes
- Operating Temperature: -40 to 75°C
- Supports: IEEE 1588v2 Transparency, ERPS Ring, DIDO, Cloudviewer App (more info. below)
- TAA Compliant
Note: ALL Industrial Switches do NOT include a power supply.
