Description
Cost-effective Full PoE+ Power and Gigabit Extension Solution Ideal for Hardened Environment

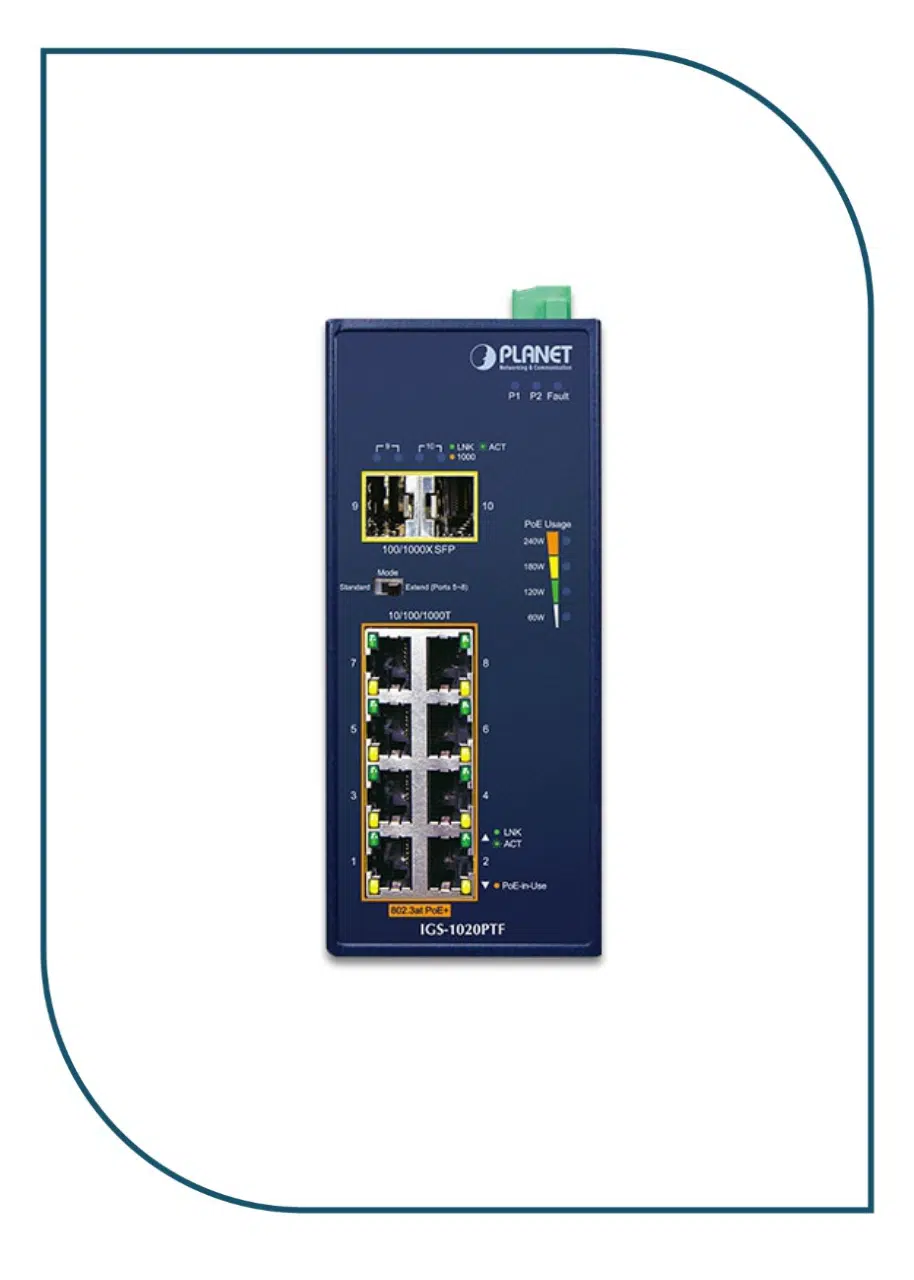

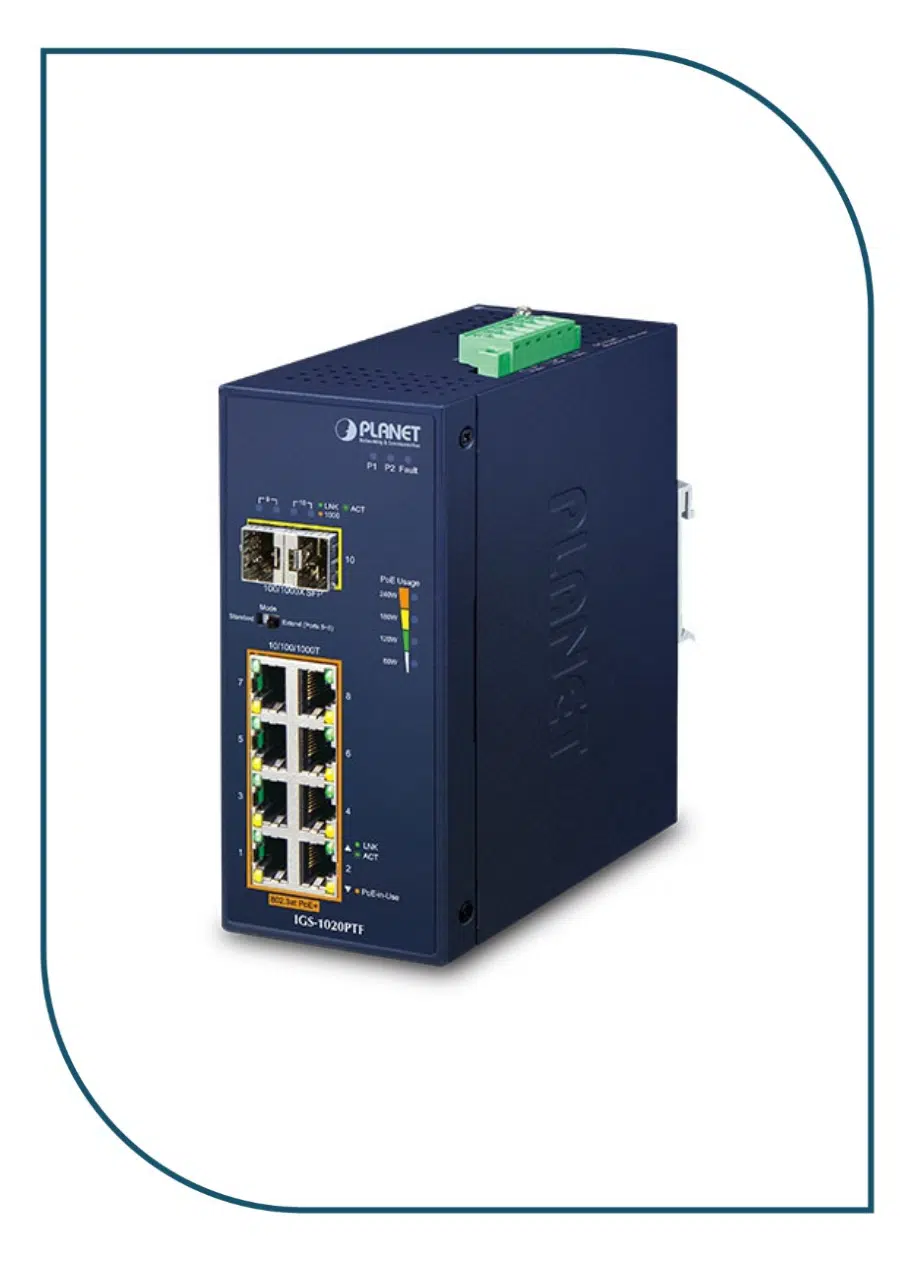

Featuring Plug and Play designed to be installed in heavy industrial demanding environments, PLANET IGS-1020PTF is an Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet PoE+ Switch with eight 10/100/1000BASE-T ports featuring IEEE 802.3at PoE+ and two 100/1000BASE-X fiber optic interfaces for uplink connection.
The IGS-1020PTF is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 240 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75°C in a rugged IP30 metal housing.
Dual Power Input for High Availability Network System

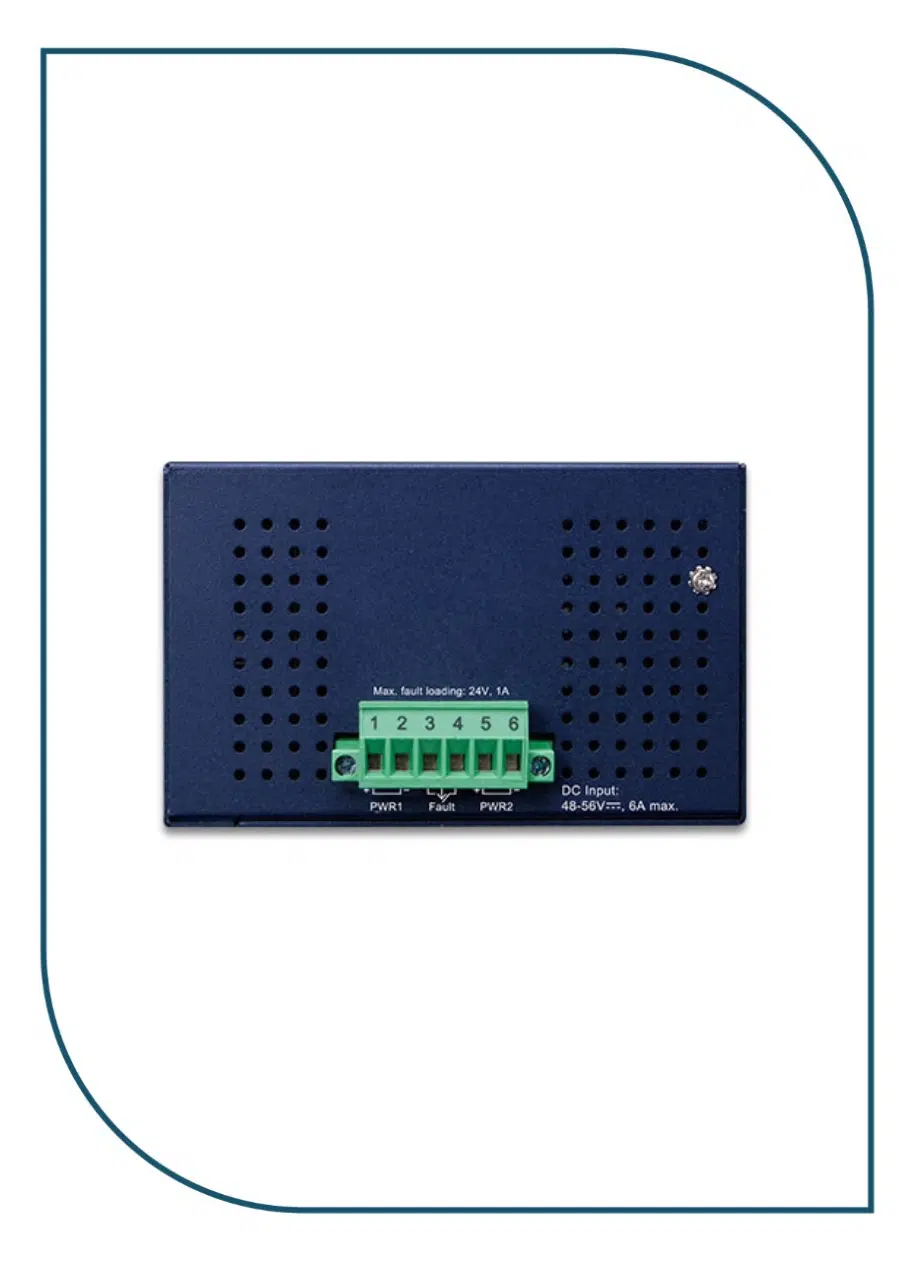

The IGS-1020PTF features a strong dual power input system with wide-ranging voltage (48~54V DC) incorporated into customer’s automation network to enhance system reliability and uptime. When power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-1020PTF via power supply 2 alternatively without any loss of operation.
- Ports: 8 10/100/1000T + 2 100/1000X SFP
- Type: Unmanaged
- PoE Ports: 8
- Max Watts per port: 30W (48~54V DC)
- Standard: 802.3at PoE+
- Operating Temperature: -40 to 75°C
- TAA Compliant
Note: ALL Industrial Switches do NOT include a power supply.
