Description
PL-LC-LC-OM4-10
Applications
- Telecom and Datacom Equipment.
- LAN\WAN
- Device Terminals
PL-LC-LC-OM4-10 Specification
| Connectors type | LC-LC |
| Cable | OM4 Duplex 3M |
| Fiber Type | OM4 50/125 |
| Cable Color | Fuchsia |
| Insertion loss | ≤0.25 dB |
| Return loss | ≥30dB |
| Joint endurance | ＞1000Times |
| Operating Temperature | -40℃～+70℃ |
| Storage Temperature | -25℃～+60℃ |
| ROHS | Meet 2002/95/EC Requirement |
PL-LC-LC-OM4-10

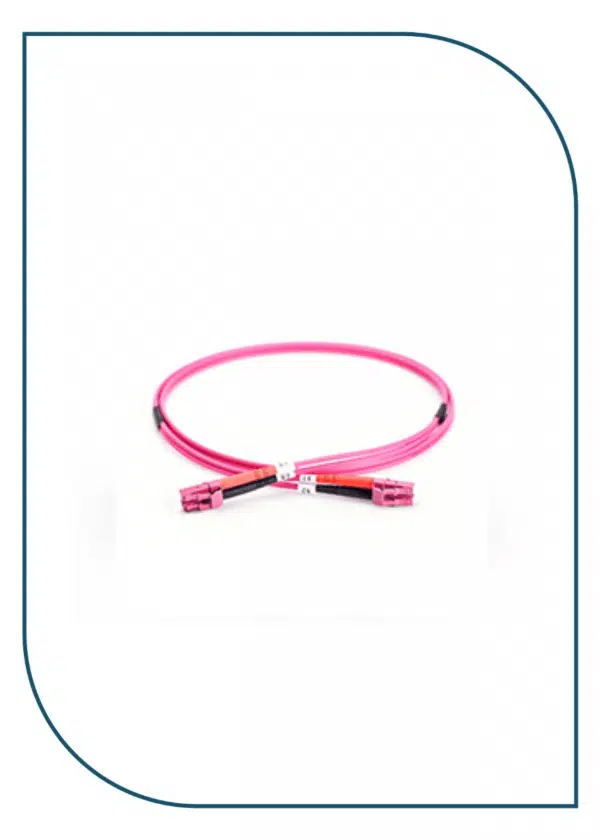

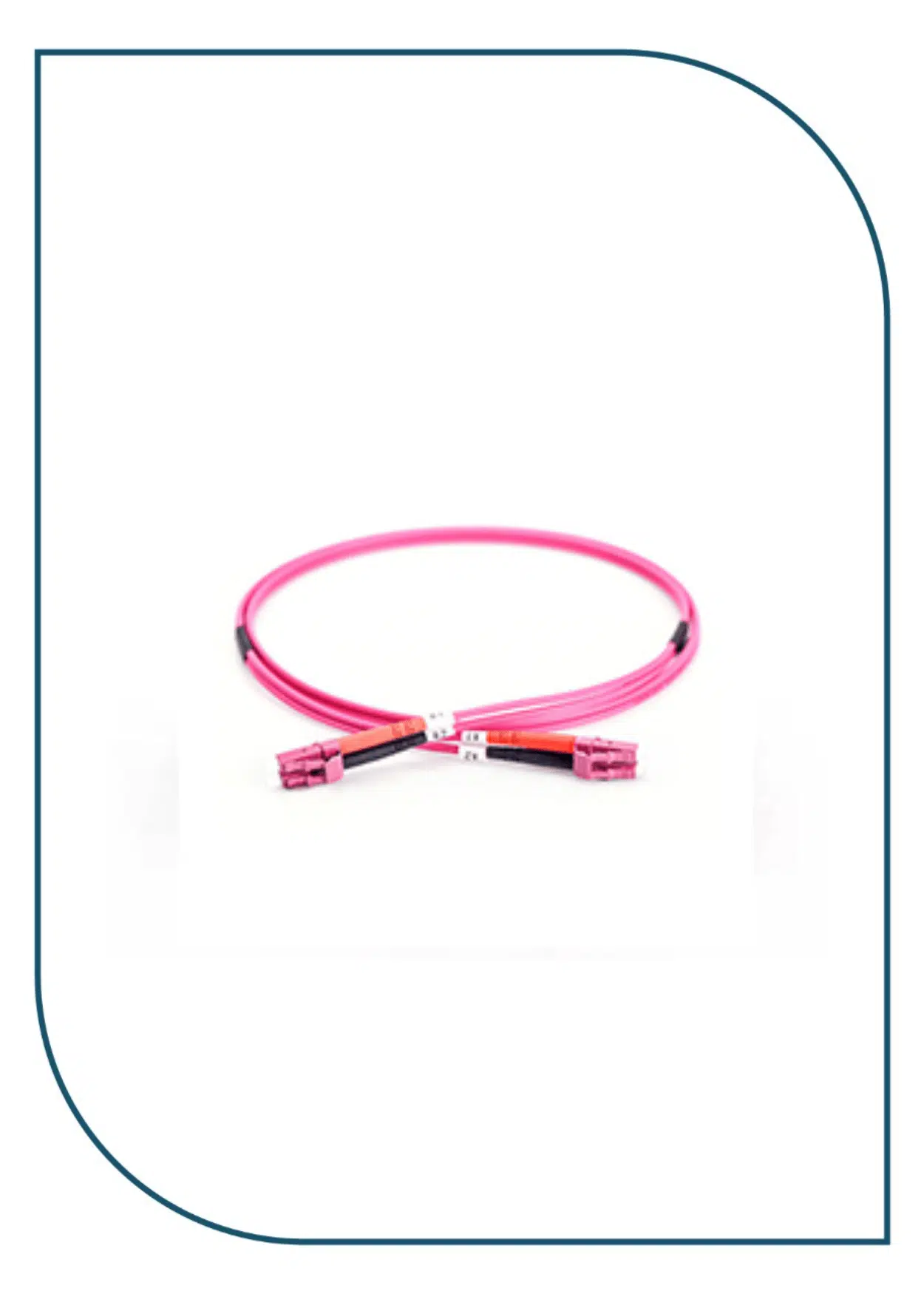

__ProLink F/O JUMPER CORD, LC -LC-MM DUPLEX – OM4,10M __
- Small Size, High Precision. _ Zirconia 1.25mm ceramics ferrule. _ Low insertion Loss. _ High Return Loss._ Duplex is Available.
