Description
PL-FOC12D-OM3
Discerption

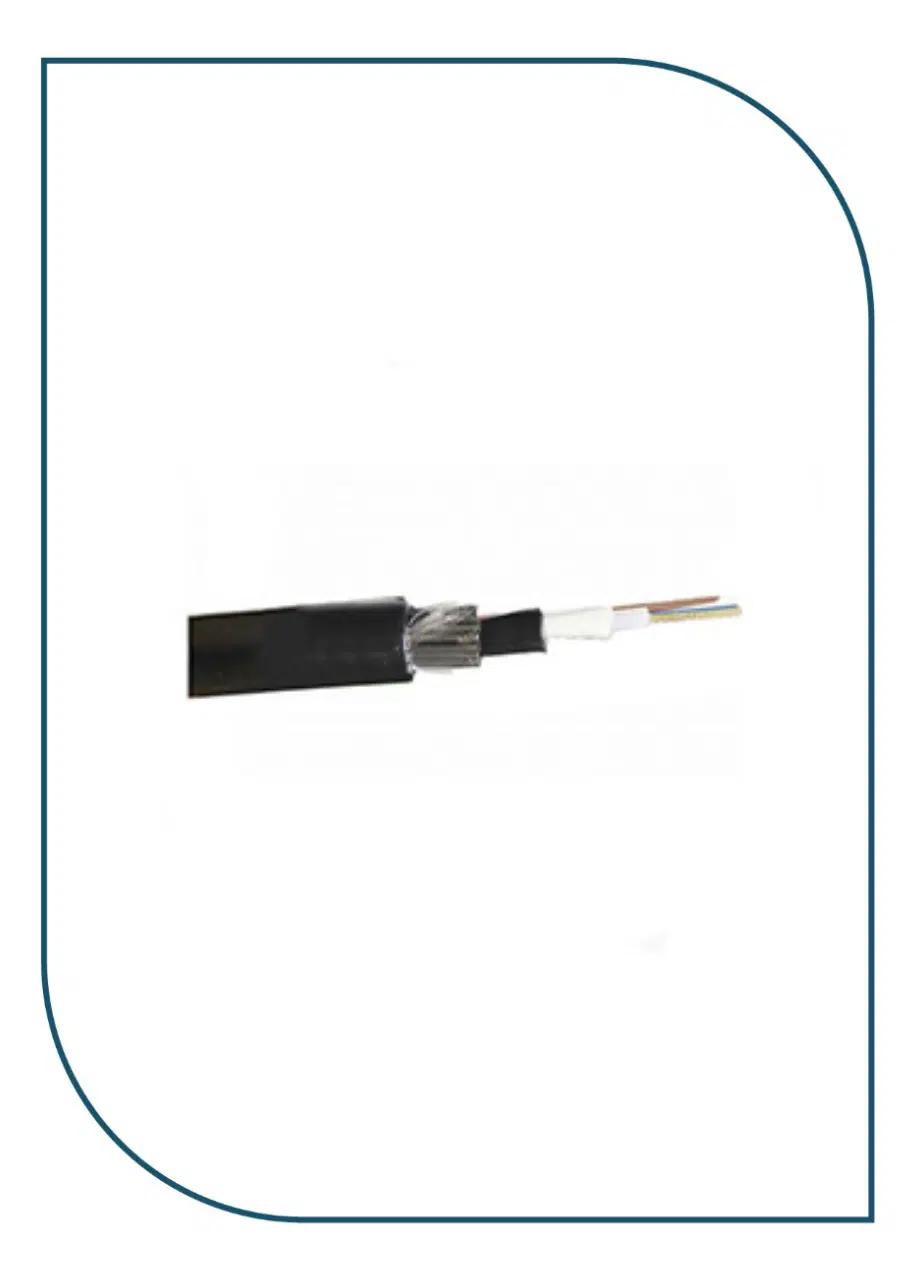

ProLink Double ARMOR Fiber CABLE 12-CORE SM9/125 OD:12.5MM steel wire = Items Unit Specifications 9/125 Cladding Diameter μm 124.8±0.7 Core Non-Circularity % ≤0.7 Core-Cladding Concentricity Error μm ≤0.5 Coating Diameter μm 245±5 Coating Non-Circularity % ≤6.0 Cladding-Coating Concentricity Error μm ≤12.0 Cable Cutoff Wavelength nm ʎcc≤1260 Mode Field Diameter 1310nm μm 9.2±0.4 1550nm μm 10.4±0.5 Attenuation (max.) 1310nm dB/km ≤0.36 1550nm dB/km ≤0.22
