Description
The Panduit P-PUL6X04WH-HEG TX6A™ Category 6A Copper Cable is a premium-performance U/UTP network cable designed for high-speed enterprise and data center infrastructures. Built with 23 AWG solid bare copper conductors, four twisted pairs, and individual Alien Crosstalk (AXT) barrier tape, it delivers exceptional signal integrity while minimizing interference in high-density cable installations.
Engineered to exceed Category 6A / Class EA performance standards, the cable supports frequencies up to 650 MHz and enables reliable 10 Gigabit Ethernet (10GBASE-T) transmission over distances up to 100 meters. It is fully compatible with Gigabit Ethernet, PoE, PoE+, and PoE++ applications, making it ideal for powering IP cameras, wireless access points, VoIP phones, and other network devices over a single cable.

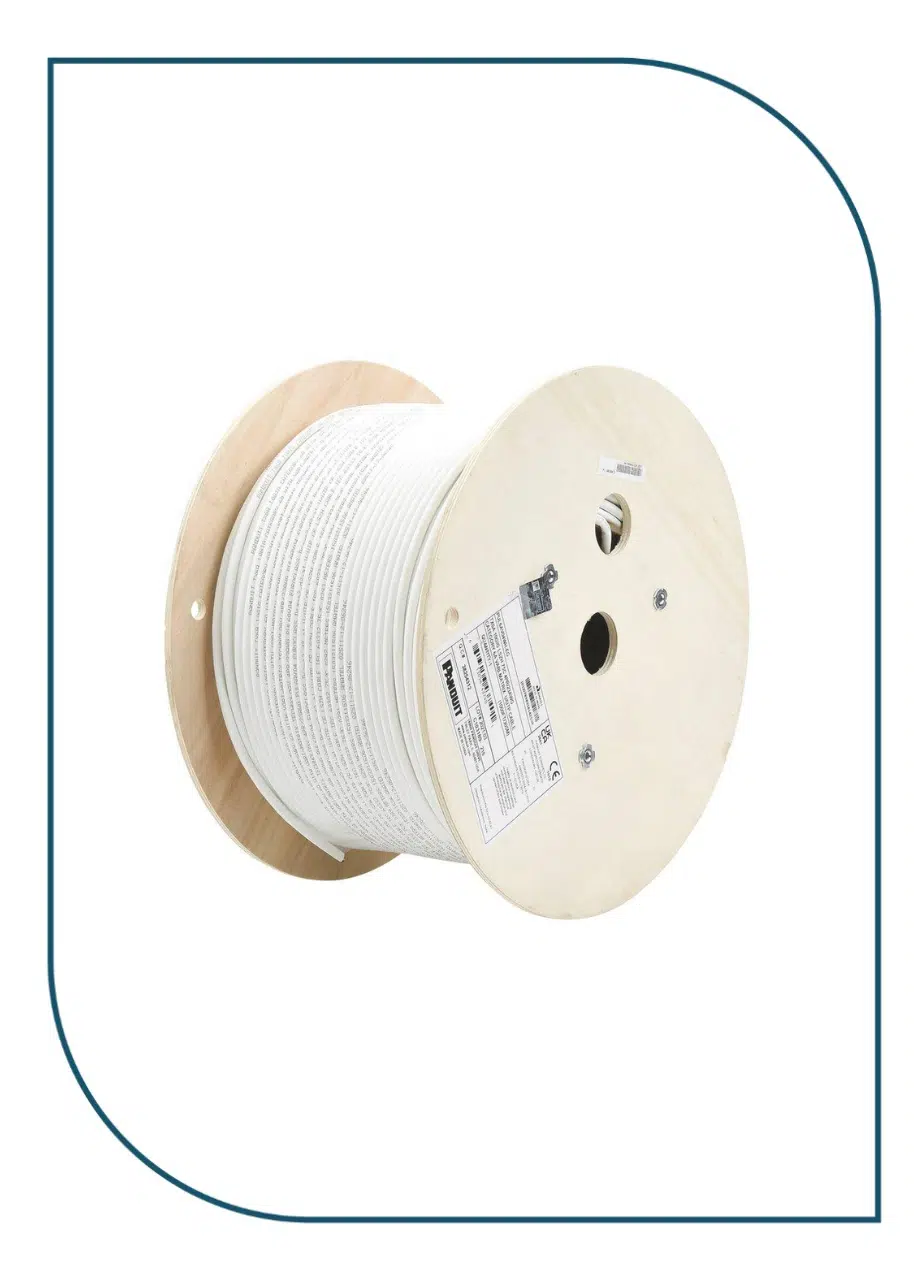

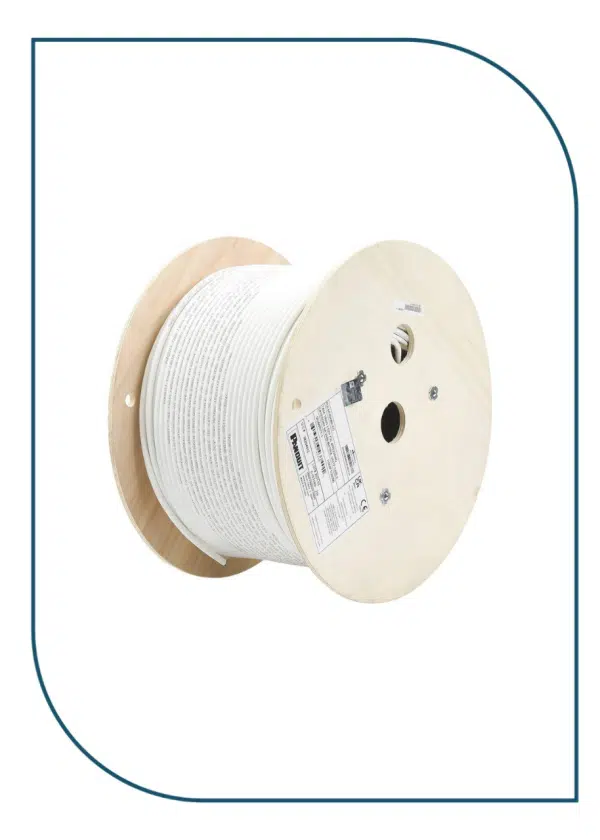

The LSZH-1 (Low Smoke Zero Halogen) white jacket minimizes smoke and toxic gas emissions during fire incidents, making it suitable for hospitals, schools, airports, commercial buildings, and other installations where fire safety is critical. Supplied on a 305-meter reel, the cable is an excellent solution for structured cabling systems, enterprise LANs, and future-ready 10 Gigabit network deployments.
| Specification | Details |
|---|---|
| Model | P-PUL6X04WH-HEG |
| Manufacturer Part Number | PUL6X04WH-HEG |
| Brand | Panduit |
| Product Series | TX6A™ |
| Product Type | Bulk Copper Network Cable |
| Cable Category | Category 6A (Class EA) |
| Cable Construction | U/UTP (Unshielded Twisted Pair) |
| Number of Pairs | 4 Pairs |
| Conductor Material | Solid Bare Copper |
| Conductor Size | 23 AWG |
| Cable Length | 305 Meters (1000 ft) |
| Jacket Material | LSZH-1 (Low Smoke Zero Halogen) |
| Jacket Color | White |
| Insulation | HDPE / SFS-PO |
| Alien Crosstalk Protection | Individual AXT Barrier Tape |
| Bandwidth | Up to 650 MHz |
| Ethernet Support | 10BASE-T, 100BASE-TX, 1000BASE-T, 10GBASE-T |
| PoE Support | IEEE 802.3af, 802.3at & 802.3bt |
| Characteristic Impedance | 100 Ohms |
| Cable Diameter | Approx. 7.0 mm |
| Operating Temperature | -20°C to +60°C |
| Installation Temperature | 0°C to +50°C |
| Standards Compliance | ANSI/TIA-568.2-D, ISO/IEC 11801 Class EA, IEC 61156 |
| Packaging | 305 m Reel |
| Applications | Structured Cabling, Enterprise Networks, Data Centers, IP Cameras, Wi-Fi 6/6E Access Points, VoIP, 10 Gigabit Ethernet |
