Description
NVR304-32E2-P16

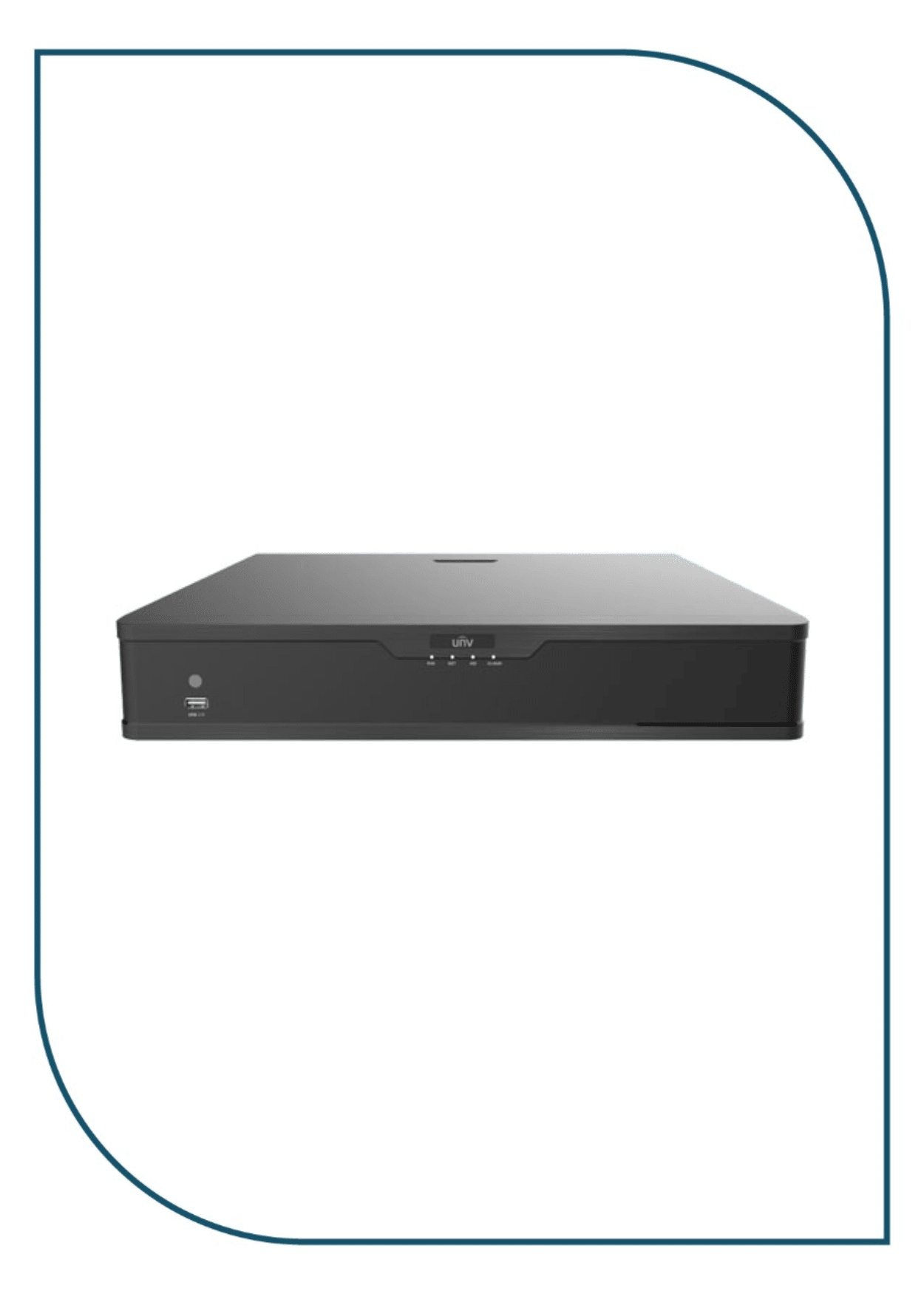

The Uniview NVR304-32E2-P16 is a high-performance Network Video Recorder (NVR) designed for large-scale surveillance systems.
Key Features:
- Channel Support: Manages up to 32 IP cameras simultaneously.
- Recording Resolution: Supports recording up to 12 megapixels (12MP), ensuring high-definition video capture.
- Compression Formats: Compatible with Ultra H.265, H.265, and H.264 video compression standards, optimizing storage and bandwidth usage.
- PoE Ports: Equipped with 16 independent Power over Ethernet (PoE) ports, facilitating easy camera connections and power supply over a single cable.
- Storage Capacity: Features four SATA hard drive bays, each supporting up to 10TB, allowing for a total storage capacity of up to 40TB.
- RAID Support: Supports RAID 1 and RAID 5 configurations, enhancing data redundancy and reliability.
- Video Outputs: Provides HDMI and VGA outputs, with HDMI supporting resolutions up to 4K (3840×2160) at 30Hz.
- Protocols Supported: Compatible with ONVIF profiles S, G, and T, ensuring interoperability with a wide range of IP cameras.
- Additional Features:
- Supports fisheye dewarping for panoramic camera views.
- Includes Automatic Network Replenishment (ANR) technology to enhance storage reliability during network disconnections.
- Supports cloud firmware upgrades for easy maintenance.
Technical Specifications:
- Bandwidth: Incoming and outgoing bandwidth of 320 Mbps each.
- Remote Access: Supports up to 128 remote users.
- Audio: Supports one-way audio input via RCA.
- Dimensions: Rack-mountable design with dimensions of 400 x 363 x 74 mm.
The NVR304-32E2-P16 is ideal for enterprises and large facilities requiring robust surveillance solutions with high-resolution recording, extensive storage, and reliable performance.
