Description

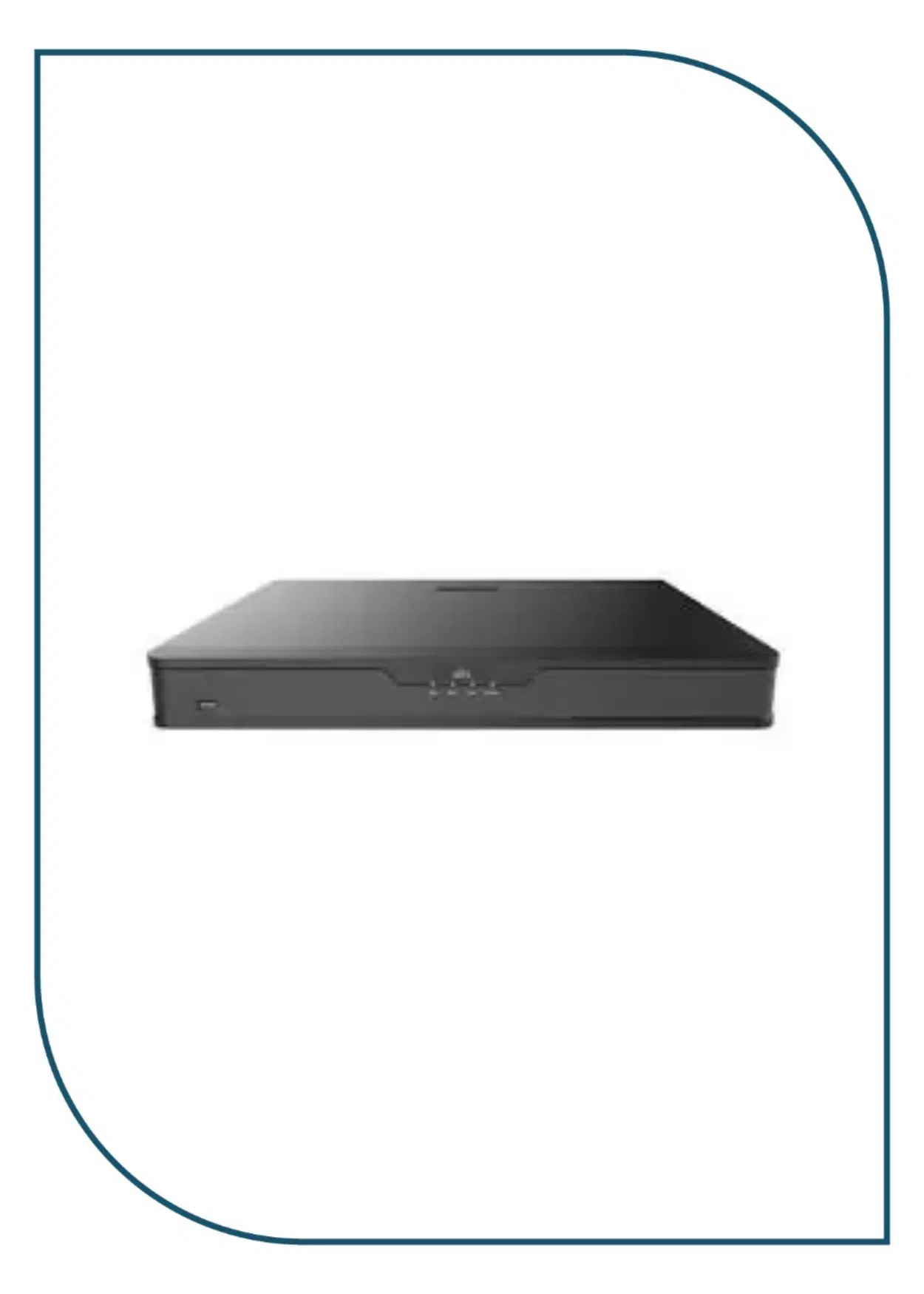

The NVR302-16S2-P16 is a network video recorder (NVR) from Uniview, designed to manage and record video from IP cameras over a network.
NVR302-16S2-P16 Key Specifications:
- Channels Supported: Supports up to 16 channels of IP video input.
- Recording Resolution: Supports video recording up to 8 megapixels (4K).
- Compression Technologies: Supports Ultra H.265, H.265, and H.264 video compression formats, providing reduced file sizes while maintaining video quality.
- PoE Ports: Equipped with 16 independent PoE (Power over Ethernet) ports, allowing for easy connection of cameras and power supply over a single cable.
- Storage: Supports up to 10TB of storage per HDD, providing large capacity for video footage storage.
- Video Output: Supports HDMI and VGA outputs for display on monitors.
- Supported Protocols: Compatible with ONVIF protocols (profiles S, G, T), ensuring compatibility with a wide range of cameras from various manufacturers.
- Additional Features:
- ANR (Automatic Network Replenishment): Improves storage reliability during network downtime.
- Cloud Update: Supports firmware updates via cloud.
NVR302-16S2-P16 Technical Features:
- Device Discovery: Automatically detects cameras on the network.
- Video Search: Advanced video search capabilities for recorded footage.
- Remote Access: Supports up to 128 remote users.
- Audio: Supports two-way audio through RCA input and output.
- Ports: Includes 1 USB 2.0 port and 1 USB 3.0 port.
- Power: Operates on 12V DC power.
- Dimensions: 1U rack-mountable design.
Use Case:
The NVR302-16S2-P16 is ideal for businesses or large-scale installations requiring an advanced and reliable surveillance system, with features such as easy integration with various cameras and large-scale storage capabilities.
