Description
NVR301-04S3

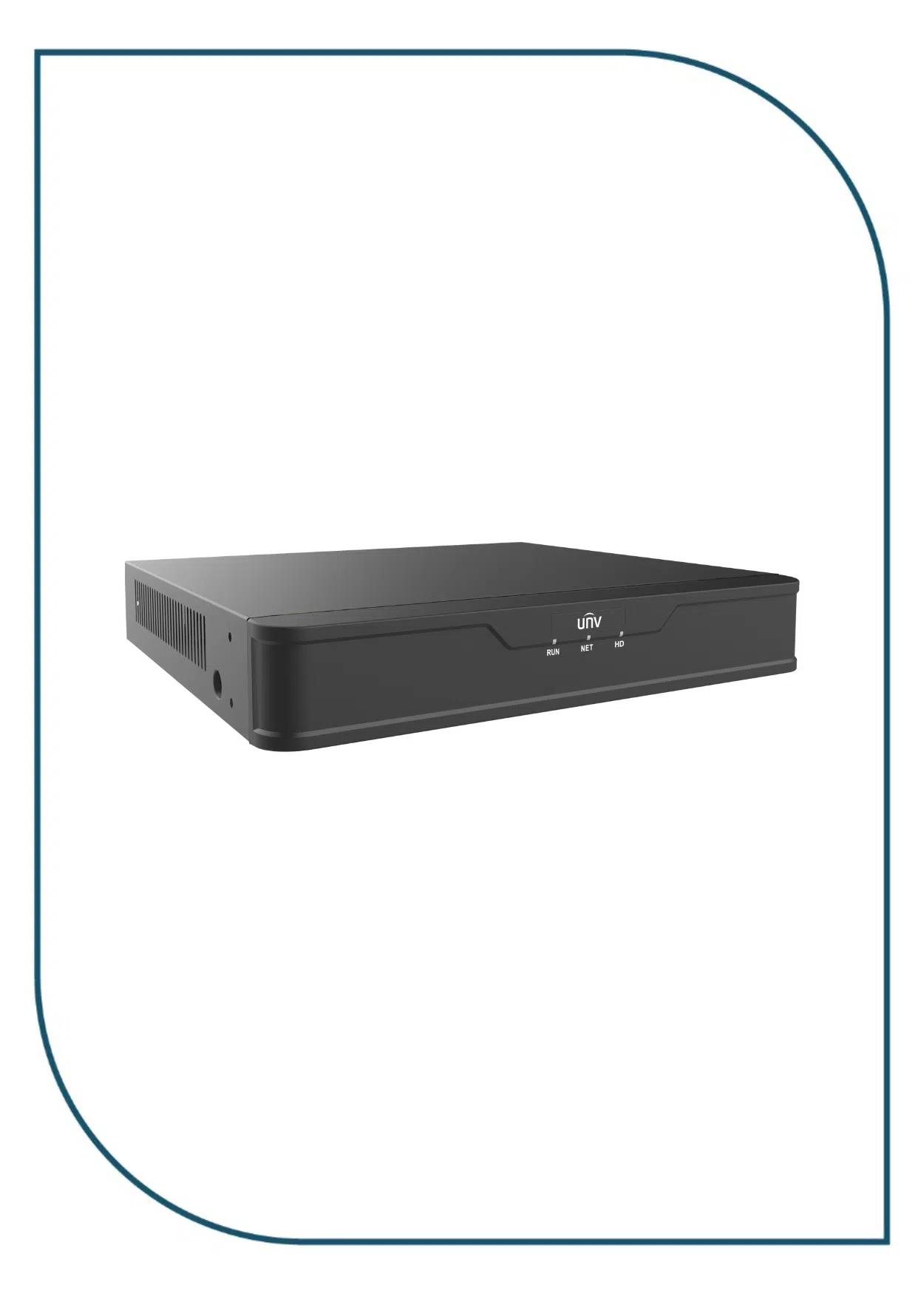

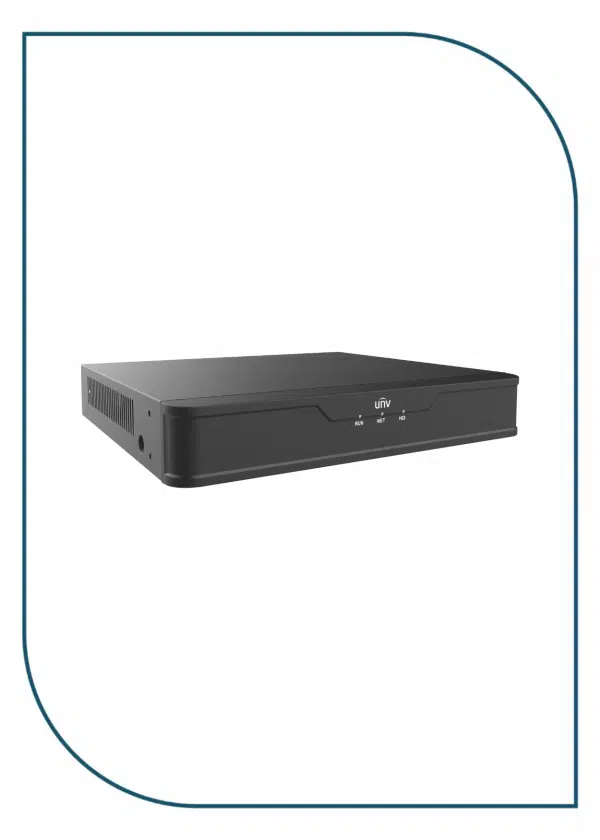

The Uniview NVR301-04S3 is a 4-channel network video recorder (NVR) designed for small to medium-sized surveillance systems. It supports Ultra265, H.265, and H.264 video formats, providing efficient video compression and storage solutions.
Key Features:
- Video Input: Supports up to 4 IP camera channels.
- Bandwidth:
- Incoming: 64 Mbps
- Outgoing: 48 Mbps
- Video Output:
- HDMI: Supports resolutions up to 4K (3840×2160) at 30Hz
- VGA: Supports resolutions up to 1920×1080 at 60Hz
- Recording Resolution: Supports 4K, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF, and CIF resolutions.
- Decoding Capability: Can handle 1 channel at 4K@30fps, 4 channels at 5MP@25fps, or 4 channels at 4MP@25fps.
- Storage: Equipped with 1 SATA interface, supporting a hard drive up to 6TB (hard drive not included).
- Network Interface: 1 RJ-45 10M/100M self-adaptive Ethernet interface.
- USB Ports: 2 USB 2.0 ports located on the rear panel.
- Audio Output: 1 channel, RCA interface.
- Power Supply: 12V DC with a power consumption of ≤5W (without HDD).
- Operating Environment: Temperature range from -10°C to +55°C (+14°F to +131°F); humidity up to 90% RH (non-condensing).
- Dimensions: 260mm × 240mm × 46mm (10.2″ × 9.4″ × 1.8″).
- Weight: ≤1.1kg (2.43lb) without HDD.
This NVR is compatible with mainstream cameras that conform to ONVIF profiles S, G, and T, as well as RTSP protocols, ensuring broad interoperability with various IP camera brands.
