Description

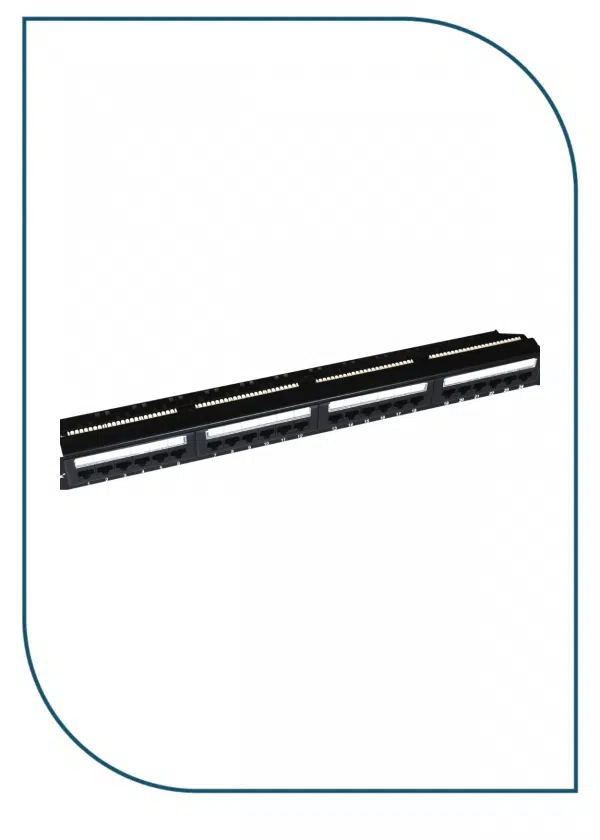

NPP-C61BLK242
- Available in 24 (1U) and 48 (2U) ports
- Six Port RJ45 modules applied
- ID stripes for identifying port allocations
- Improved Cable Management with optional cable management bar
- IDC: suitable for 22-26 AWG stranded and solid wire, compatible with both 110& Krone punch down tools
- Mounts in standard 19” racks
- The Cat6 transmission performance is in compliance with the ANSI/TIA/EIA 568C.2 standard
1. Identification: ID plate, PC, Transparent color with paper
2. Panel: SPCC. 1.6 mm thickness with Black (RAL 9005) Colour painted
3. RJ45 Jack:
- Housing: PBT+ Glass Fiber UL94V-0
- Contact Bracket: PBT+Glass Fiber, UL94V-0, Black Color
4. RJ45 Jack Contact:
- Material: Phosphor Bronze with Nickel Plated
- Finish: 50 micro-inches Gold plated on plug contact area
5. IDC:
- Housing: PC, UL94V-0
- Terminal: phosphor Bronze with Tin plated
6. Jack Bracket Set: ABS
7. Support Bar: SPCC, 1.6 mm thickness with Black (RAL 9005) Colour painted
8. PCB: FR4, UL 94V-0
