Description

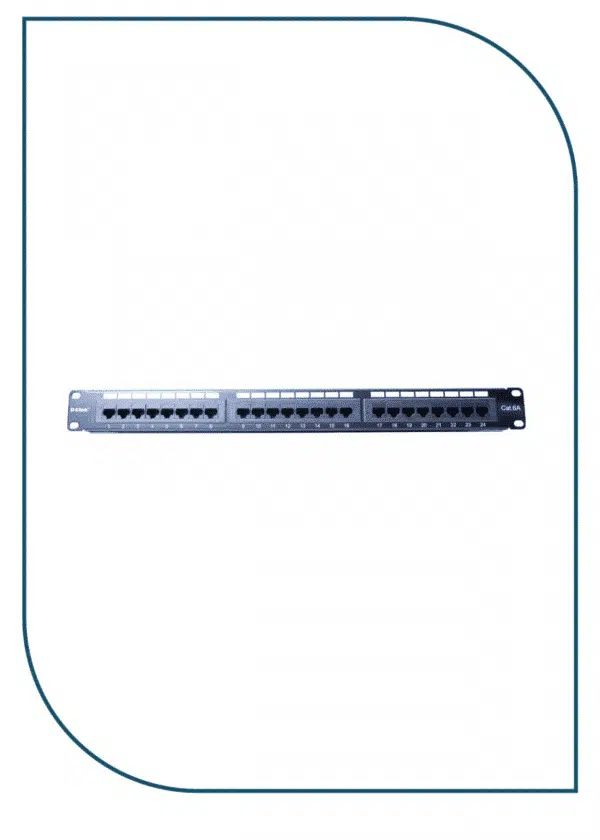

NPP-6A1BLK242
FEATURES
- Eight Port RJ45 modules applied
- ID stripes for identifying port allocations
- IDC: suitable for 22-24 AWG stranded and solid wire
- • Compatible with both 110& Krone punch down tools
- • Improved Cable Management with optional cable management bar • Available in 1U and 2U
SPECIFICATIONS
- Identification: ID plate, OPP, Transparent color with paper
- Panel: SPCC, 1.6mm thickness with Black (RAL 9005) color painted
- RJ45 Jack: Housing: PC UL 94V-2 Contact Brackets: PBT+Glass Fiber, UL 94V-1, Transparent color
- RJ45 Jack Contact: Material: Phosphor Bronze with Nickel Plated Finish: 50 micro-inches Gold plated on plug contact area
- IDC: Housing: PC Terminal: phosphor Bronze with Tin plated
- Jack Bracket Set: ABS
- Support Bar: SPCC, 1.6 mm thickness with Black (RAL 9005) color painted
PERFORMANCE
- T568A & T568B wiring scheme
- Insertion force: 20N max. (IEC 60603-7-4)
- Retention strength: 7.7 kg between jack and plug
- Operating temperature: -10oC to 60oC (ISO/IEC 11801, ANSI/TIA/EIA 568B.2)
- Life (mating cycles): Jack: 750 cycle’s min (ISO/IEC 11801, IEC 60603-7-4) IDC: suitable for 22-24 AWG stranded and solid wire, compatible with both 110& Krone punch down tools
- The Cat6A transmission performance is in compliance with the ANSI/TIA/EIA 568C.2 -1 standard
- Eight port modules applied
