Description
NPG-C61TRA501-100

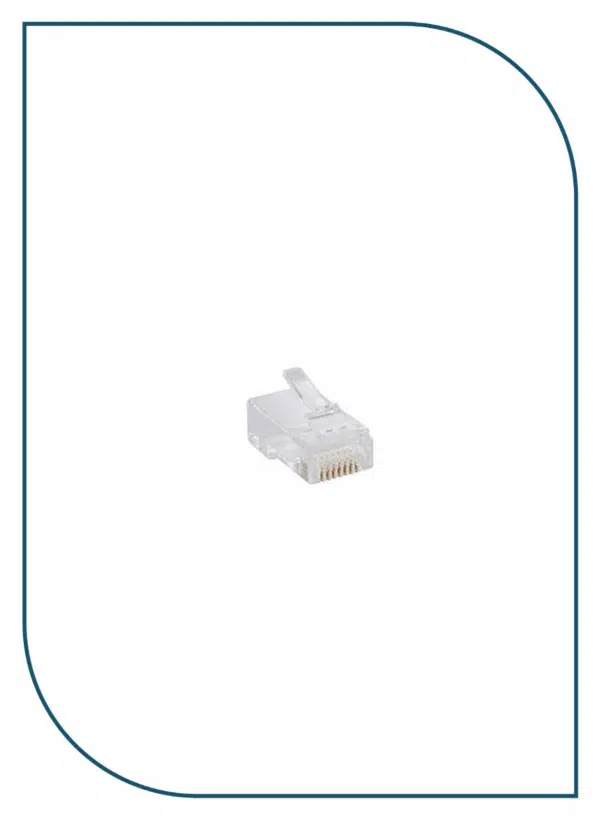

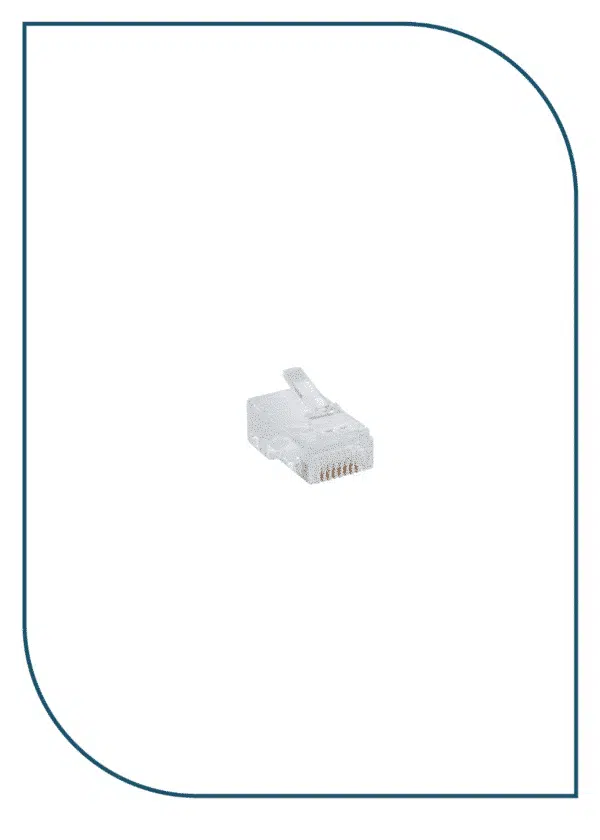

The RJ45 Modular Plug, which functions to connect LAN cables to computers or other network devices, meets CAT6 specifications that have different characteristics from CAT5 and can make output faster, compared to CAT5 UTP LANs.
- RJ45 modular plug supports 4 twisted pairs, meets the cable scheme
- – Housing: polycarbonate, 94V-2, transparent color
- – Contact terminal: phosphor bronze
- – Finished: 50 micro-inch gold plating, over 50 micro-inch Nickel plated on contact area
- – Operating temperature: -40˚C to 80˚C
- – Cable to plug tensile strength: 7.7 kg
- – Termination 24-26 AWG stranded wires, cabling scheme T568A / T568B
