Description

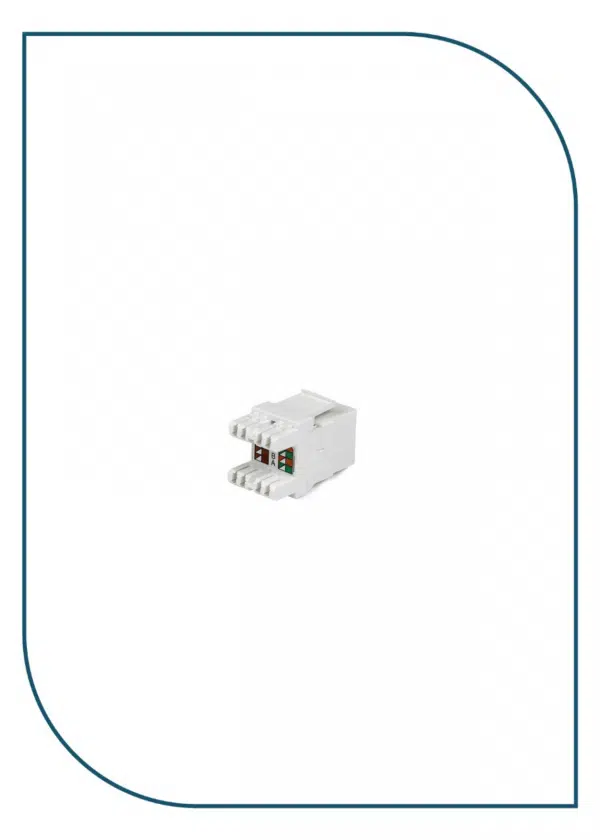

NKJ-C6TWHI1B21
FEATURES:-
- RJ45 8P 8C 180˚C 50u Punch Down Jack
- Terminating 4 pairs, 22-26 AWG Cable
- Universal labels color coded for T568A
- and T568B wiring schemes
- Fitting high density keystone panel
- UL, ETL certified
SPECIFICATIONS:-
- RJ45 Jack:
- Housing: ABS+PC, UL 94V-0, with optional color
- Contact Bracket: PC, UL 94V-2, transparent
- RJ45 Jack Contact:
- Material: Phosphor Bronze with Nickel Plated
- Finish: 50 micro-inch Gold Plated on plug contact area
- IDC:
- Housing: PC + Glass Fiber, UL 94V-2
- Terminal: Phosphor Bronze, Tin Plated
- IDC CAP: ABS, UL 94V-0
PERFORMANCE:-
- T568A & T568B wiring sticker
- Insertion force: 20N max (IEC 60603-7-4)
- Retention strength : 7.7 kg between jack and plug
- Operation temperature : -10˚C to 60̊C (ISO/IEC 11801,
- ANSI/TIA/EIA 568 C.2)
- Life ( Mating Cycles):
- Jack: 750 cycle min (ISO/IEC 11801, IEC 60603-7-4)
- IDC: suitable for 22-26 AWG stranded and solid wire,
- compatible with both 110 & Krone punch down tools
- The Cat6 transmission performance is in compliance
- with the ANSI/TIA/EIA 568 C.2 standard
