Description

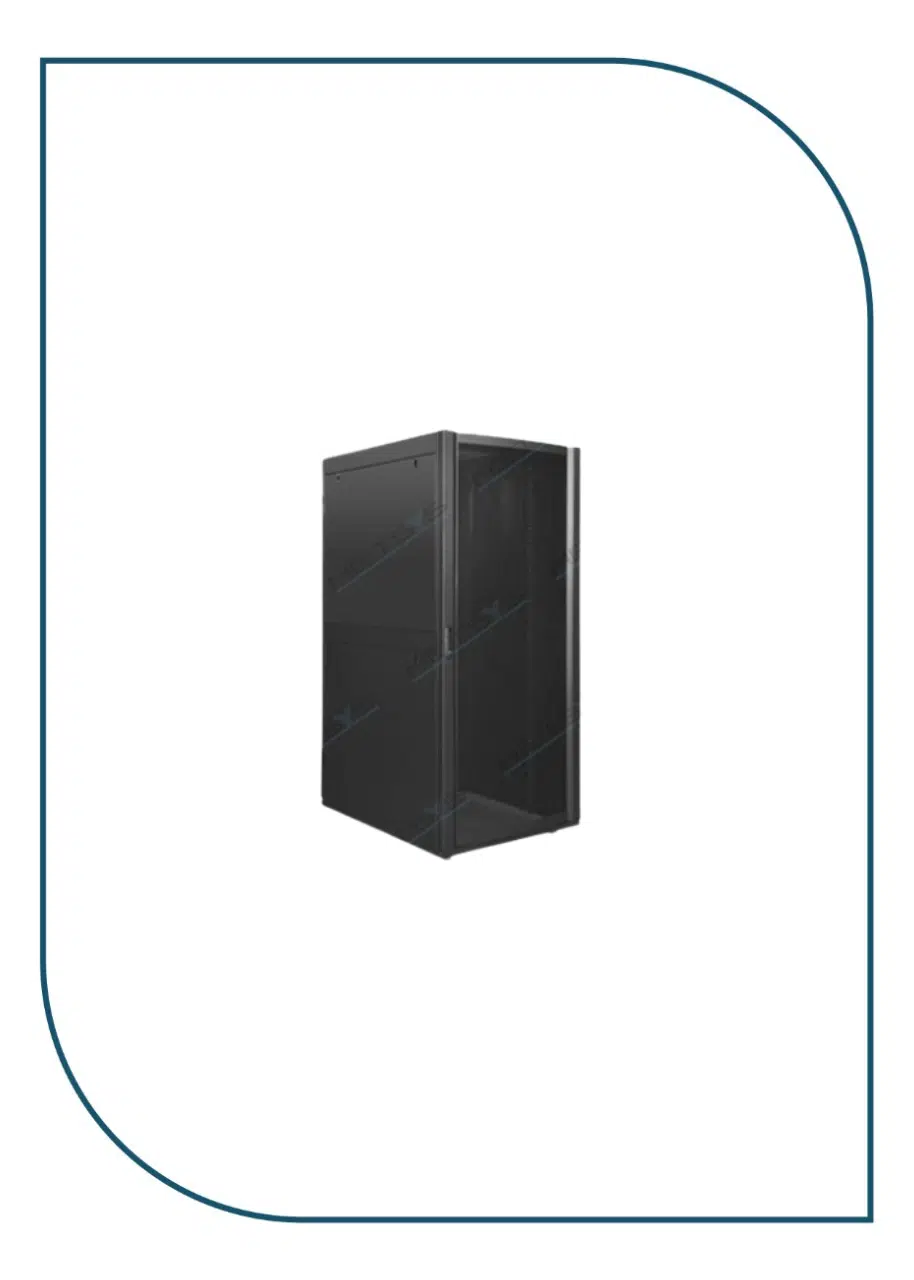

NS-503VN42U80100
Features
-
Structure: Reliable structure with a static loading capacity of 800 KGs.
-
Mobility/Stability: Features adjustable feet and heavy-duty castors (wheels) that can be used simultaneously for both moving and reliable fixing.
-
Doors & Ventilation: Has high density vented front door and rear doors for mechanical protection and ventilation. The front, rear, and side panels can be removed.
-

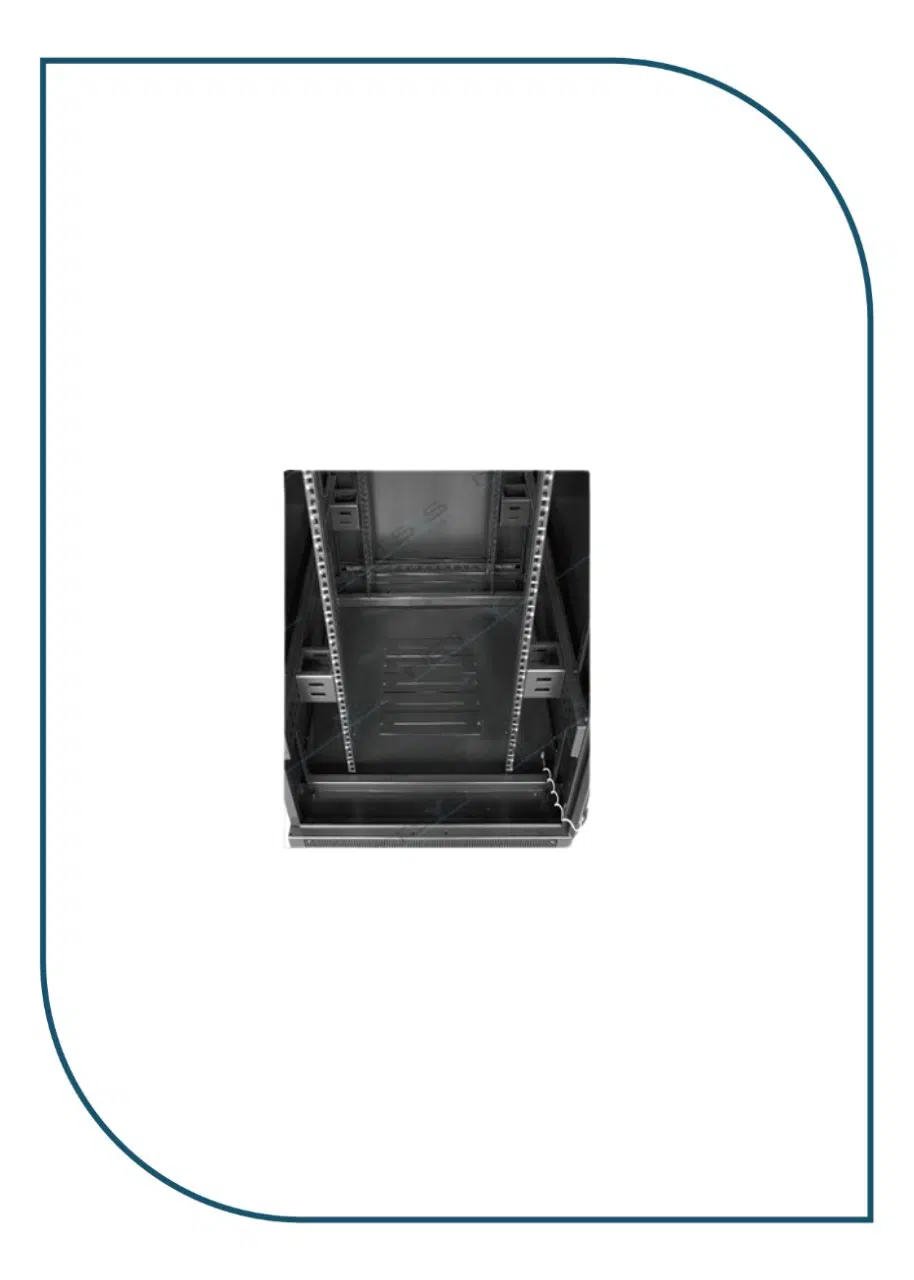

Base: The bottom panel facilitates ventilation and is rat-proof.
-
Cable Management: Offers optional cable entry on the top cover and bottom panel. A 19-inch installation adds a vertical cable management system.
-
Installation Width: Facility installation is adjustable between 19 inches and 27 inches.
-
Expandability: Supports baying together (joining multiple racks) easily, quickly, efficiently, and firmly.
-
Customization: Optional accessories, opening holes, and specifications are available upon customer request.
Sizes and Dimensions
-
Heights (8 options, can customize): 18U, 22U, 24U, 27U, 32U, 37U, 42U, 47U.
-
Depth Options (4 options): 600, 800, 900, and 1000mm.
-
Availability: Multiple sizes available, and customization requests are welcome.
-
Packing: Uses flexible packing methods for convenient stocking and end-user delivery.
Standard and Material
-
Compliance: The product complies with numerous standards, including:
-
ANSI/EIA; RS-310-D; IEC297-2; DIN41494: PART1; DIN41494: PART7; GB/T3047.2-92 standard;
-
19″ international standard, metric system and ETSI standard.
-
Surface Treatment
-
The metal components are processed through: degreasing, pickling, phosphoric, powder coating.
