Description

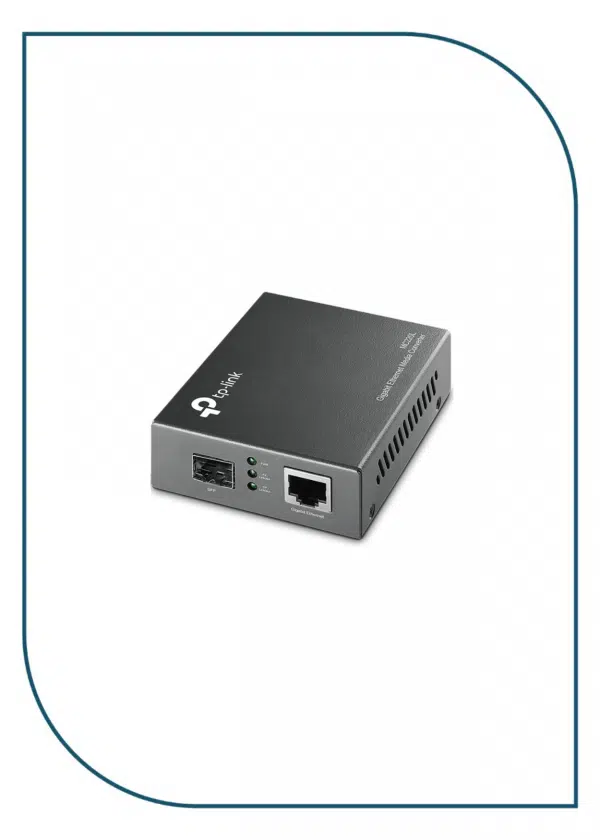

MC220L
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Basic Function | • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Maximum transmission distance depends on the inserting SFP module |
| Ports | • 1× 1000M SFP port
• 1× 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | Depends on the used SFP module |
| Network Media 1000BASE-X | Multi-mode/Single-mode SFP module |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maxium 100m)
EIA/TIA-568 100Ω STP (maximum 100m) |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.7W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents | • MC220L
• Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
