Description

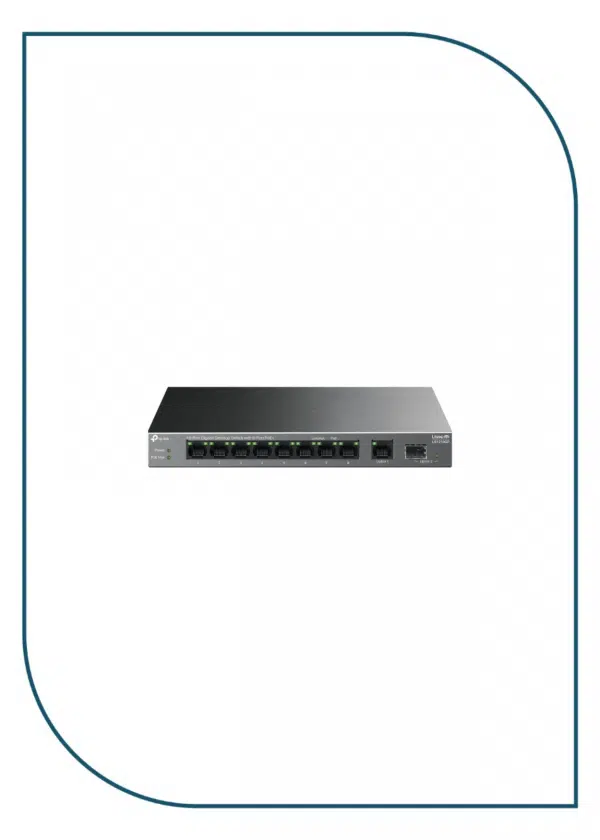

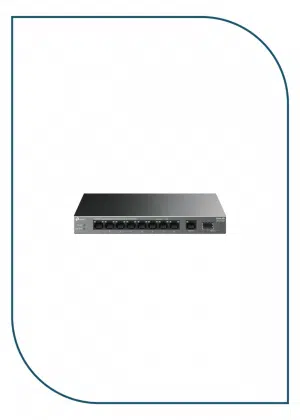

LS1210GP
| HARDWARE FEATURES | |
|---|---|
| Interface | • 9× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 supports PoE+ output)
• 1× Gigabit SFP Port |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Installation | • Desktop
• Wall Mounting |
| Physical Security Lock | Yes |
| Power Supply | External Power Adapter(Output: 53.5VDC / 1.31A) |
| PoE+ Ports(RJ45) | • Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1–8, up to 30 W PoE output per port • PoE Power Budget: 61W |
| Dimensions ( W x D x H ) | 8.2×4.9×1.0 in (209×126×26 mm) |
| Max Power Consumption | • 7.3 W (220/50Hz. no PD connected)
• 76.96 W (220/50Hz. with 61 W PD connected) |
| Max Heat Dissipation | • 24.82 BTU/h (no PD connected)
• 261.66 BTU/h (with 61 W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 4K |
| Jumbo Frame | 16 KB |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
• Isolation Mode Button (Ports 1–8) • PoE Auto Recovery Button (Ports 1–8) • Compatible With IEEE 802.3af/at Compliant PDs • IEEE802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Green Technology |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • LS1210GP
• Power Adapter • Installation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
