Description

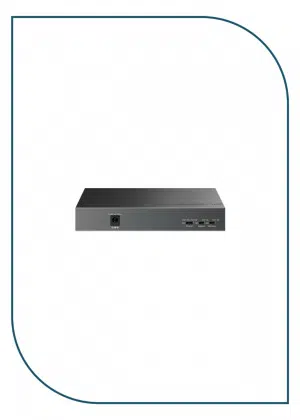

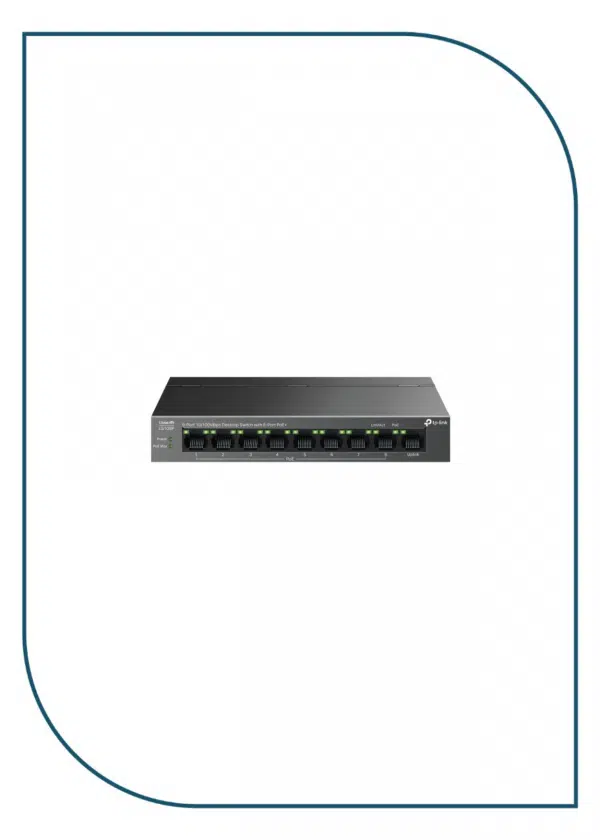

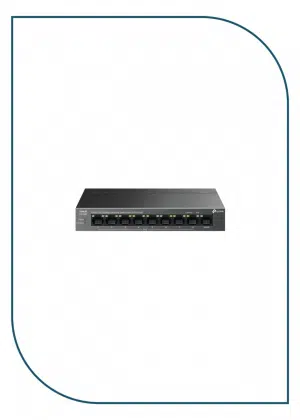

LS109P
| HARDWARE FEATURES | |
|---|---|
| Interface | • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports)
• AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Installation | • Desktop
• Wall Mounting |
| Power Supply | External Power Adapter (Output: 53.5VDC / 1.31A) |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant
PoE Ports: Ports 1–8, up to 30 W PoE output per port • Power Supply: 63 W |
| LED Indicator | • Power
Link/Act PoE Status • PoE MAX |
| Dimensions ( W x D x H ) | 6.7×3.9×1.1 in (171×98×27 mm) |
| Max Power Consumption | • 3.67 W (220 V/50 Hz no PD connected)
• 73.24 W (220 V/50 Hz with 63 W PD connected) |
| Max Heat Dissipation | 12.48 BTU/h (220 V/50 Hz no PD connected)
249 BTU/h (220 V/50 Hz with 63 W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 1.8 Gbps |
| Packet Forwarding Rate | 1.3392 Mpps |
| MAC Address Table | 2K |
| Jumbo Frame | 1.5 KB |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission)
Isolation Mode Button (Ports 1–8) PoE Auto Recovery Button (Ports 1–8) Compatible With IEEE 802.3af/at Compliant PDs Mac Address Auto-Learning and Auto-Aging IEEE 802.3x Flow Control • Green Technology |
| Transfer Method | Store and Forward |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • LS109P
Power Adapter Installation Guide • Rubber Feet |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensin • Storage Humidity: 5–90% RH non-condensing |
