Description

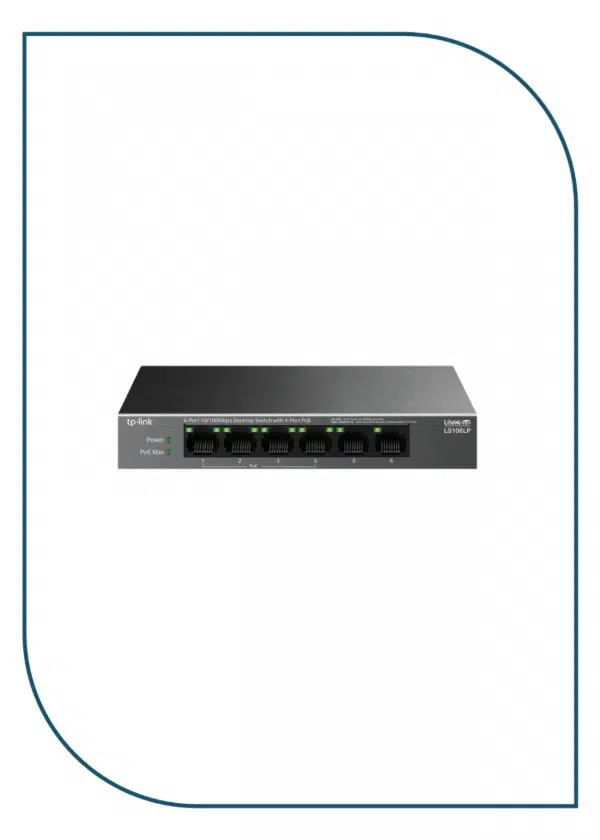

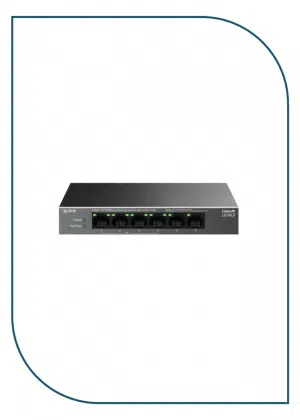

LS106LP
| HARDWARE FEATURES | |
|---|---|
| Interface | • 6× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports) • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Installation | • Desktop • Wall Mounting |
| Power Supply | External Power Adapter (Output: 53.5VDC / 0.81A) |
| PoE Ports (RJ45) | • Standard: 802.3 af compliant • PoE Ports: Ports 1–4, up to 15.4 W PoE output per port • Power Supply: 41 W |
| LED Indicator | • Power • Link/Act • PoE Status • PoE MAX |
| Dimensions ( W x D x H ) | 6.2×4.0×1.0 in (158×101×25 mm) |
| Max Power Consumption | • 2.53 W (220 V/50 Hz no PD connected) • 47.76 W (220 V/50 Hz with 41 W PD connected) |
| Max Heat Dissipation | • 8.61 BTU/h (220 V/50 Hz no PD connected) • 162.38 BTU/h (220 V/50 Hz with 41 W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 1.2 Gbps |
| Packet Forwarding Rate | 0.8928 Mpps |
| MAC Address Table | 2K |
| Jumbo Frame | 2 KB |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery Button (Ports 1-4) • Compatible With IEEE 802.3af Compliant PDs • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • Green Technology |
| Transfer Method | Store and Forward |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • LS106LP • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
