Description

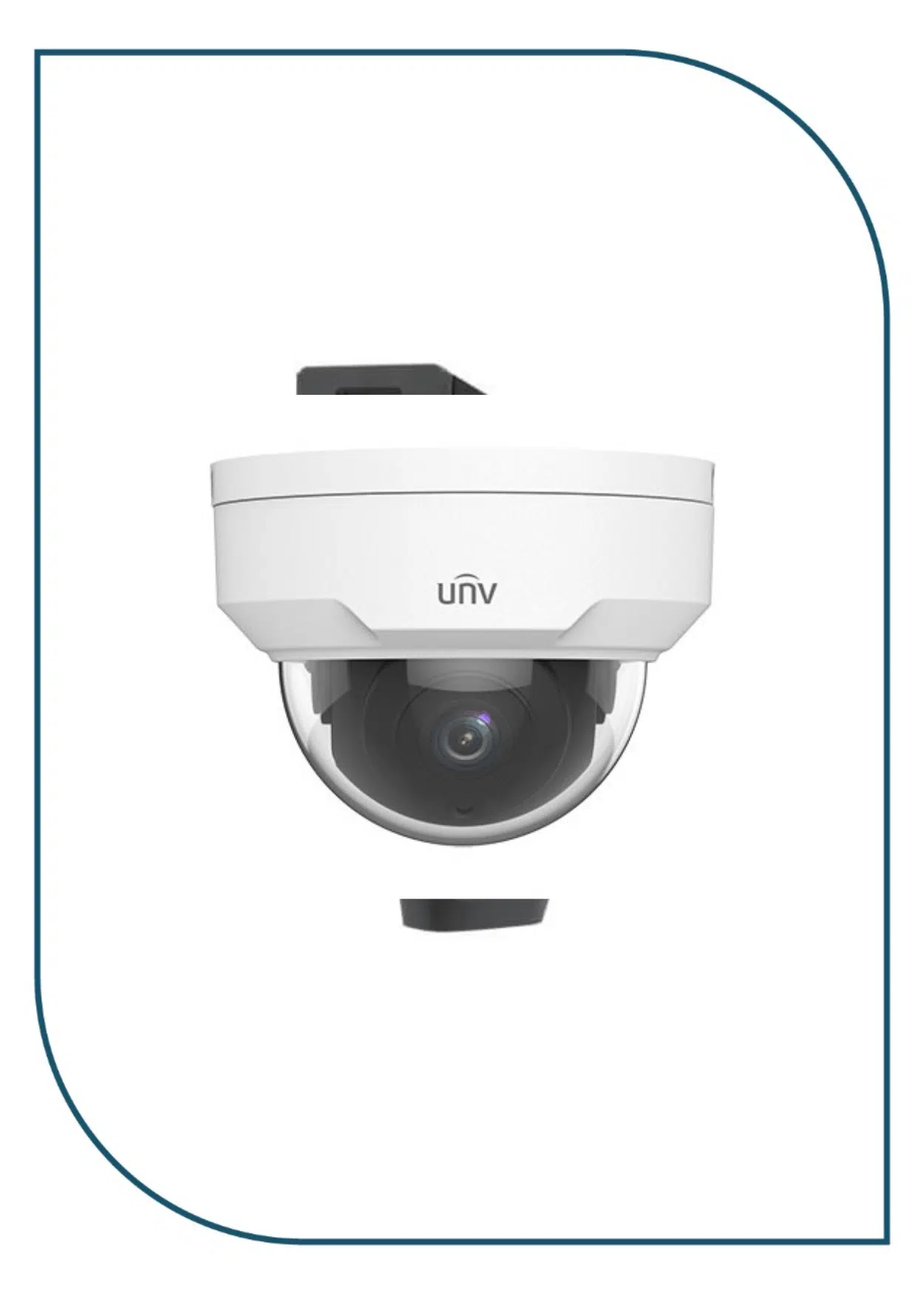

IPC322LB-SF28-A
This camera is ideal for applications requiring reliable surveillance with high-definition imaging, robust protection against environmental factors, and resistance to vandalism.
Key Features:
- High-Quality Imaging: Equipped with a 1/2.8″ progressive scan CMOS sensor, delivering 2MP (1920×1080) resolution at 30/25fps for clear and detailed footage.
- Lens: Features a 2.8mm fixed lens with an aperture of F2.0, providing a horizontal field of view of approximately 106.7°.
- Infrared Capability: Smart IR technology with an IR range of up to 30 meters (98 feet) ensures visibility in low-light conditions.
- Compression Formats: Supports Ultra 265, H.265, and H.264 video compression standards, optimizing storage and bandwidth usage.
- Day/Night Functionality: Automatic IR-cut filter enables seamless transition between day and night modes for continuous monitoring.
- Digital Noise Reduction: Incorporates 2D/3D DNR to minimize noise in various lighting conditions, enhancing image clarity.
- Weather and Vandal Resistance: Rated IP67 for dust and water protection and IK10 for vandal resistance, making it suitable for outdoor and high-risk installations.
- Power over Ethernet (PoE): Supports PoE for simplified installation and reduced cabling requirements.
- Adjustability: 2-axis adjustment (Pan: 3°–360°, Tilt: 0°–75°) allows flexible positioning to cover desired surveillance areas.
Specifications:
- Image Sensor: 1/2.8″, 2.0 megapixel, progressive scan CMOS.
- Minimum Illumination: Color: 0.01 Lux (F2.0, AGC ON); 0 Lux with IR on.
- Shutter Speed: Auto/Manual, 1–1/100000s.
- Signal-to-Noise Ratio (S/N): Greater than 52dB.
- IR Wavelength: 850nm.
- Video Compression: Ultra 265, H.265, H.264 with support for Baseline, Main, and High profiles.
- Frame Rate: Main Stream: 1080P (1920×1080) at up to 30fps; 720P (1280×720) at up to 30fps.
- Operating Conditions: Designed to operate in a wide range of environmental conditions, ensuring reliability in various climates.
