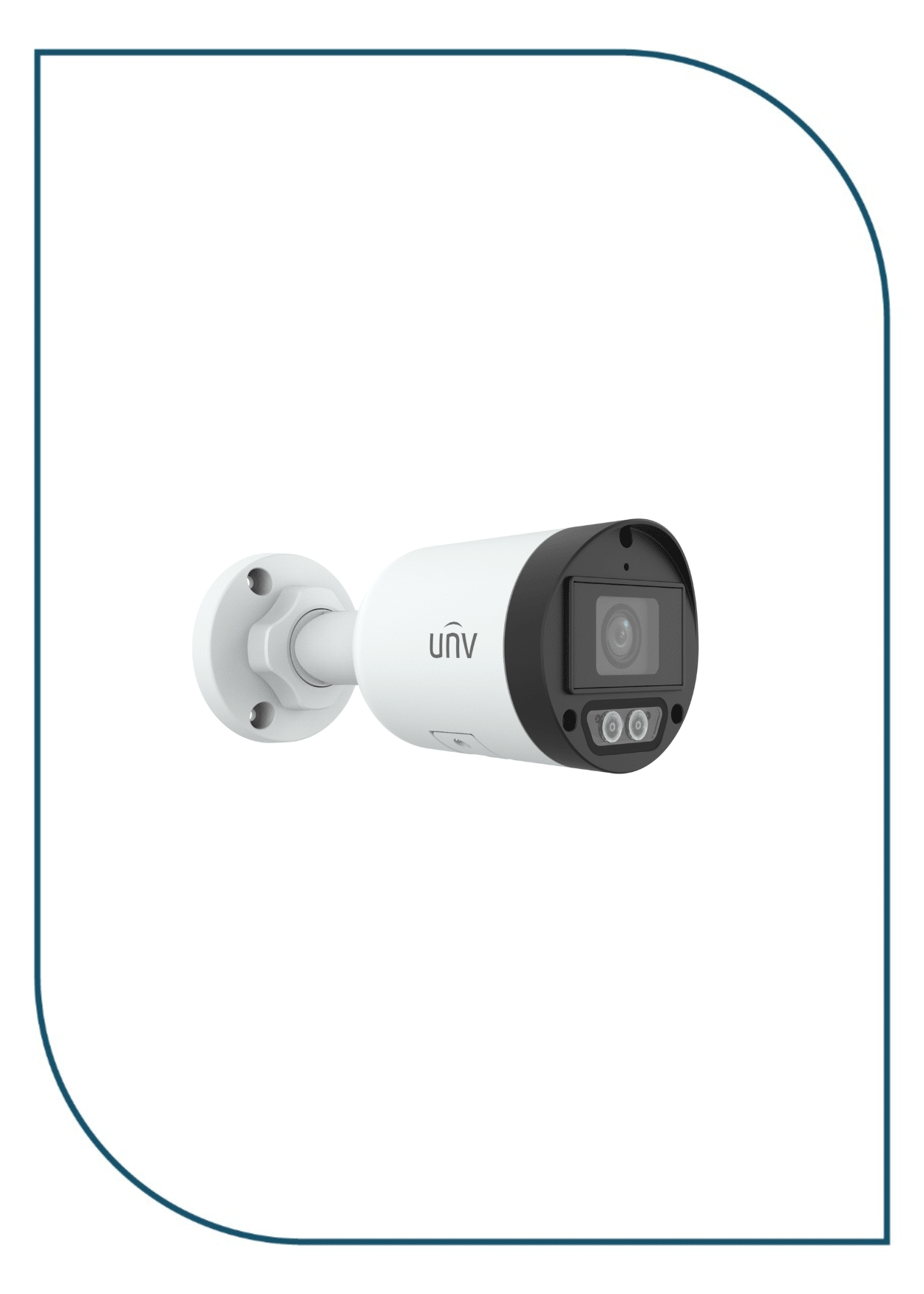

IPC2122LB-AF28K-WL
The IPC2122LB-AF28K-WL is a 2MP HD ColorHunter Mini Fixed Bullet Network Camera from Uniview, designed for high-quality surveillance applications.
Key Features:
- High-Resolution Imaging: Equipped with a 1/2.9″ CMOS sensor, it delivers clear images at 2MP (1920×1080) resolution at 30/25 frames per second (fps).
- Advanced Video Compression: Supports Ultra H.265, H.265, and H.264 compression standards, optimizing storage and bandwidth usage.
- Built-in Microphone: Features an integrated microphone for audio recording capabilities.
- Warm Light Illumination: Provides warm light illumination up to 30 meters (98 feet), enhancing night-time surveillance.
- Digital Noise Reduction: Utilizes 2D/3D DNR (Digital Noise Reduction) to enhance image clarity in low-light environments.
- Local Storage Support: Supports micro SD cards up to 128GB for local storage options.
- Power Options: Operates on DC12V or Power over Ethernet (PoE) (IEEE 802.3af) for flexible installation.
- Durability: Boasts IP67-rated weatherproofing, making it suitable for various environmental conditions.
- Adjustable Mounting: Offers 3-axis adjustment (pan: 0° ~ 360°, tilt: 0° ~ 90°, rotation: 0° ~ 360°) for flexible installation and optimal coverage.
Specifications:
- Lens Options: 2.8mm @F1.6 or 4.0mm @F1.6.
- Field of View:
- 2.8mm lens: Horizontal: 101.1°, Vertical: 56.5°, Diagonal: 117°.
- 4.0mm lens: Horizontal: 82.5°, Vertical: 44.5°, Diagonal: 93°.
- DORI Distances:
- 2.8mm lens: Detect: 45.0m, Observe: 18.0m, Recognize: 9.0m, Identify: 4.5m.
- 4.0mm lens: Detect: 64.3m, Observe: 24.8m, Recognize: 12.4m, Identify: 6.2m.
- Video Output: Main Stream: 2MP (1920×1080) at up to 30fps; Sub Stream: D1 (720×576) at up to 30fps.
- Minimum Illumination: Color: 0.005 lux (F1.6, AGC ON); 0 lux with warm light on.
- Shutter Speed: Auto/Manual, 1 ~ 1/100000s.
- Signal-to-Noise Ratio (S/N): >52dB.
- Wide Dynamic Range (WDR): Digital WDR (DWDR) technology enables clear images in strong light scenes.
- Power Supply: DC12V ±25% or PoE (IEEE 802.3af).
- Power Consumption: Max 7.8W.
- Operating Conditions: Temperature: -30°C to 60°C (-22°F to 140°F); Humidity: ≤ 95% RH (non-condensing).
- Dimensions: 162mm (H) × 67mm (W) × 67mm (D).
- Weight: 240g.
This camera is ideal for both indoor and outdoor surveillance, offering high-definition video and advanced features for reliable security monitoring.
