Description

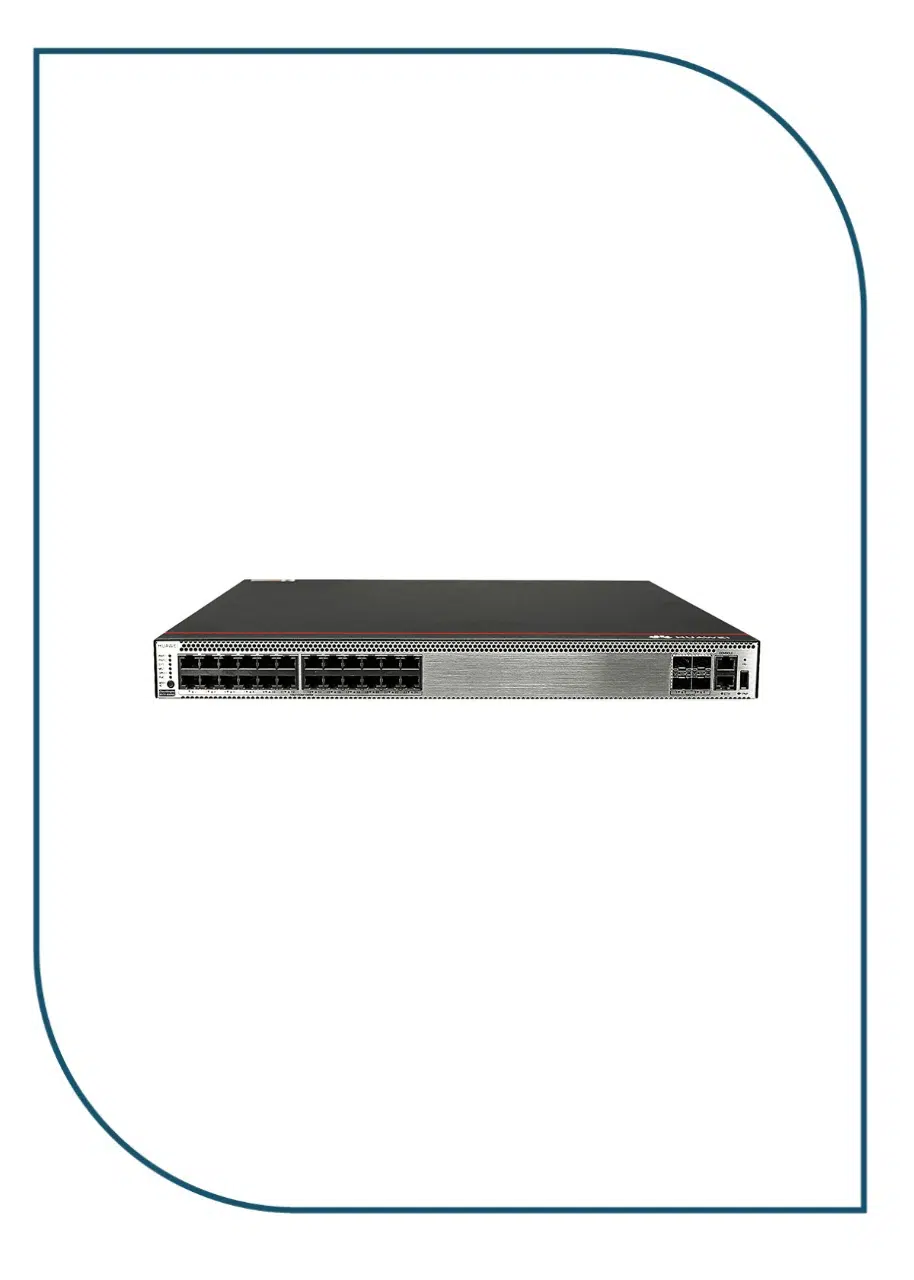

The Huawei CloudEngine S5731-S24P4X is an enterprise-class Layer 3 managed Gigabit PoE+ switch designed for campus networks, enterprise offices, hotels, hospitals, schools, retail stores, and surveillance deployments. It delivers 24 Gigabit PoE+ Ethernet ports and 4 × 10GE SFP+ uplink ports, providing high-speed connectivity and flexible network expansion.

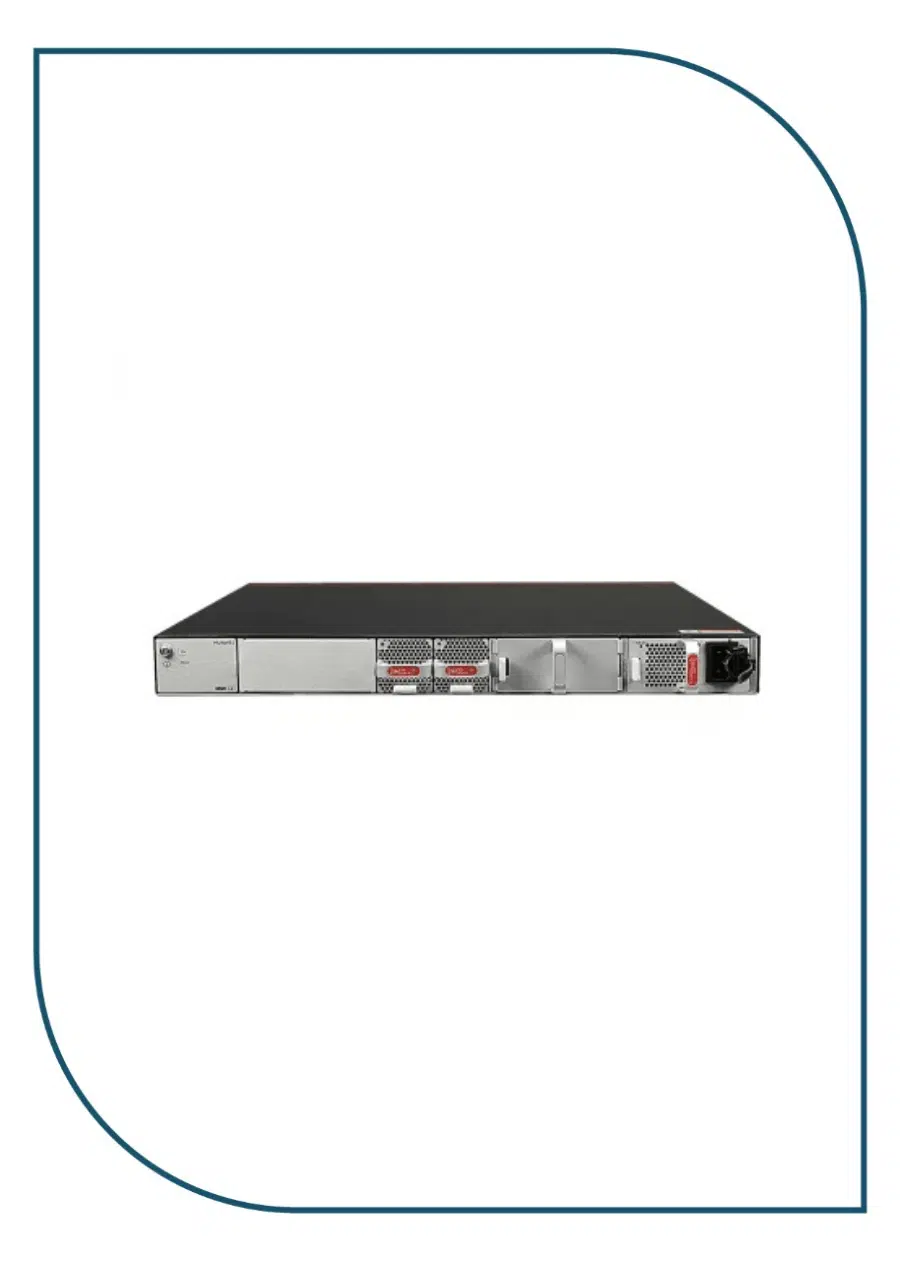

Built on Huawei’s Versatile Routing Platform (VRP), the S5731-S24P4X supports advanced Layer 2 and Layer 3 features including static routing, IPv4/IPv6, VLANs, ACLs, QoS, multicast, and intelligent stacking (iStack). The switch supports dual hot-swappable power supplies (1+1 redundancy) and modular fan design for maximum reliability and continuous operation.
Its PoE+ capability powers IP phones, wireless access points, and IP cameras through the Ethernet cable, reducing installation costs while simplifying deployment. The switch is ideal for organizations that require secure, scalable, and high-performance network infrastructure.
Specifications
| Feature | Specification |
|---|---|
| Model | Huawei CloudEngine S5731-S24P4X |
| Switch Type | Layer 3 Managed PoE+ Switch |
| Fixed Ports | 24 × 10/100/1000Base-T PoE+ RJ45 |
| Uplink Ports | 4 × 10GE SFP+ |
| PoE Standard | IEEE 802.3af / IEEE 802.3at (PoE+) |
| Maximum PoE Power | Up to 600 W (depending on installed power module) |
| Switching Capacity | 128 Gbps / 672 Gbps |
| Forwarding Rate | 96 Mpps |
| MAC Address Table | 32K Entries |
| Layer 3 Features | Static Routing, IPv4, IPv6 |
| VLAN Support | 4K VLANs |
| QoS | Yes |
| ACL | Yes |
| IPv6 | Full Support |
| Link Aggregation | LACP |
| STP | STP, RSTP, MSTP |
| Multicast | IGMP Snooping, MLD Snooping |
| DHCP | DHCP Snooping, Relay |
| Stacking | Huawei iStack |
| Security | 802.1X, Port Security, MAC Authentication, ACL |
| Management | CLI, SNMP, Web, SSH, NETCONF |
| Redundant Power | Dual Hot-swappable (1+1) |
| Cooling | Modular Hot-swappable Fans |
| Mounting | 1U Rack Mount |
| Typical Deployment | Enterprise, Campus, CCTV, Wi-Fi, VoIP |
