Description

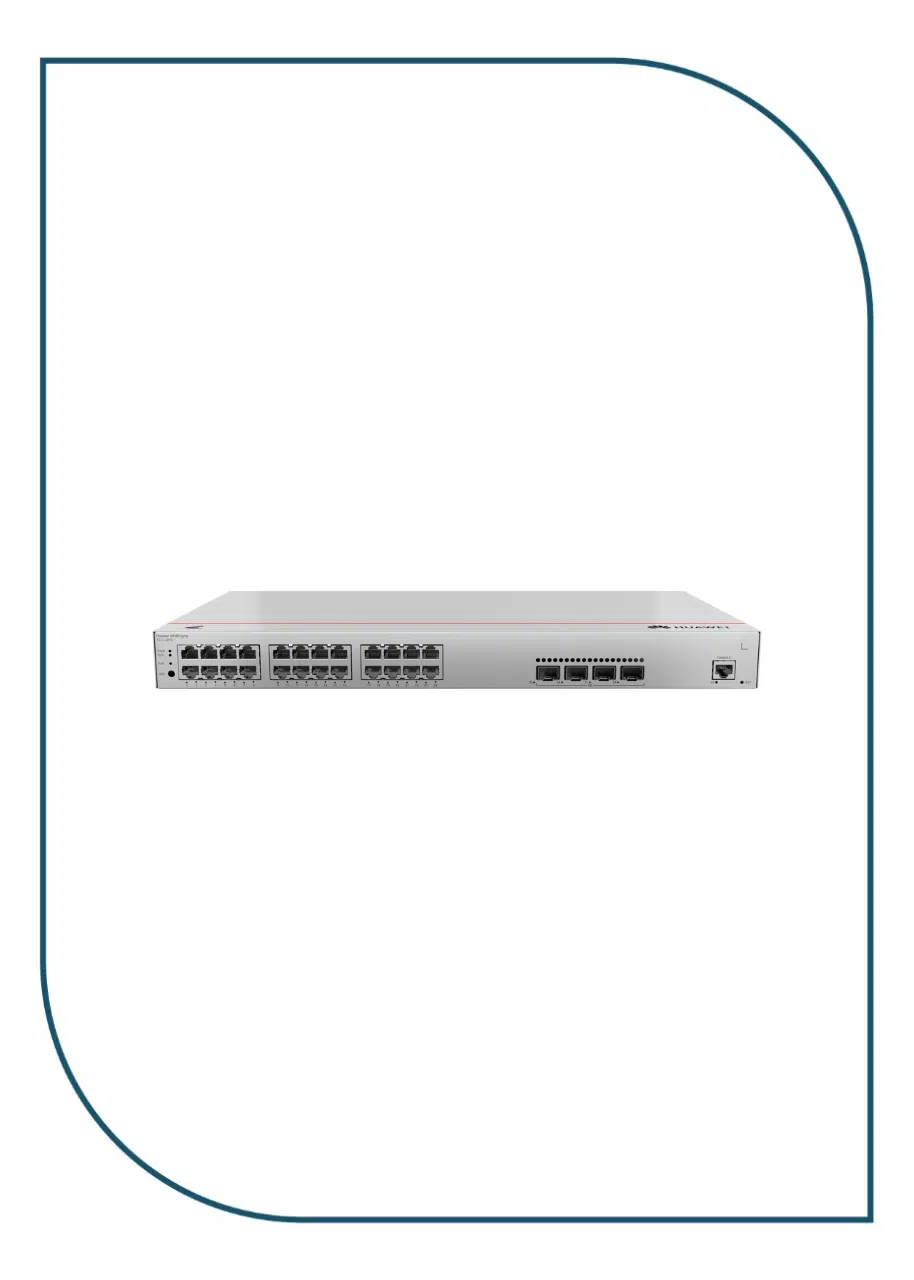

The Huawei eKitEngine S310-24P4S is a Layer 3 Smart Managed PoE+ Gigabit Switch designed for small and medium-sized businesses, enterprise offices, schools, hotels, retail stores, and IP surveillance networks. It features 24 Gigabit PoE+ RJ45 ports and 4 Gigabit SFP uplink ports, delivering reliable connectivity and flexible fiber uplinks for business-critical applications.
With a 400W PoE power budget, the switch can simultaneously power IP cameras, wireless access points, VoIP phones, and other IEEE 802.3af/at compliant devices through Ethernet cables, reducing deployment costs and simplifying installation.
The S310-24P4S supports advanced Layer 2 and Layer 3 capabilities, including Static Routing, VLAN, QoS, ACL, IPv6, Link Aggregation, STP/RSTP/MSTP, ERPS ring protection, and IGMP Snooping. It also supports Huawei eKit Cloud Management, enabling centralized configuration, monitoring, and maintenance through the Huawei eKit App or Web interface.
Its built-in AC power supply, intelligent fan cooling, and 1U rack-mount design make the S310-24P4S an ideal networking solution for growing organizations that require secure, scalable, and easy-to-manage network infrastructure.
Specifications
| Feature | Specification |
|---|---|
| Model | Huawei eKitEngine S310-24P4S |
| Switch Type | Layer 3 Smart Managed PoE+ Switch |
| Downlink Ports | 24 × 10/100/1000BASE-T RJ45 (PoE+) |
| Uplink Ports | 4 × 1GE SFP |
| PoE Standard | IEEE 802.3af / IEEE 802.3at (PoE+) |
| Total PoE Budget | 400 W |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 42 Mpps |
| MAC Address Table | 16K Entries |
| Layer 3 Features | Static Routing, IPv4, IPv6 |
| VLAN | Up to 4K VLANs |
| QoS | Supported |
| ACL | Supported |
| Link Aggregation | Supported |
| Spanning Tree | STP / RSTP / MSTP |
| Ring Protection | ERPS |
| Multicast | IGMP Snooping |
| Stacking | Huawei iStack (Up to 4 Switches) |
| Management | Web GUI, CLI, SNMP, Huawei eKit App, Cloud Management |
| Power Supply | Built-in AC |
| Cooling | Intelligent Fan Cooling (2 Built-in Fans) |
| Mounting | Rack Mount, Desktop, Wall Mount |
| Chassis Material | Metal |
| Dimensions | 43.6 × 442 × 220 mm |
| Weight | 2.92 kg (without packaging) |
| Operating Temperature | -5°C to +50°C |
