Description
specifications :

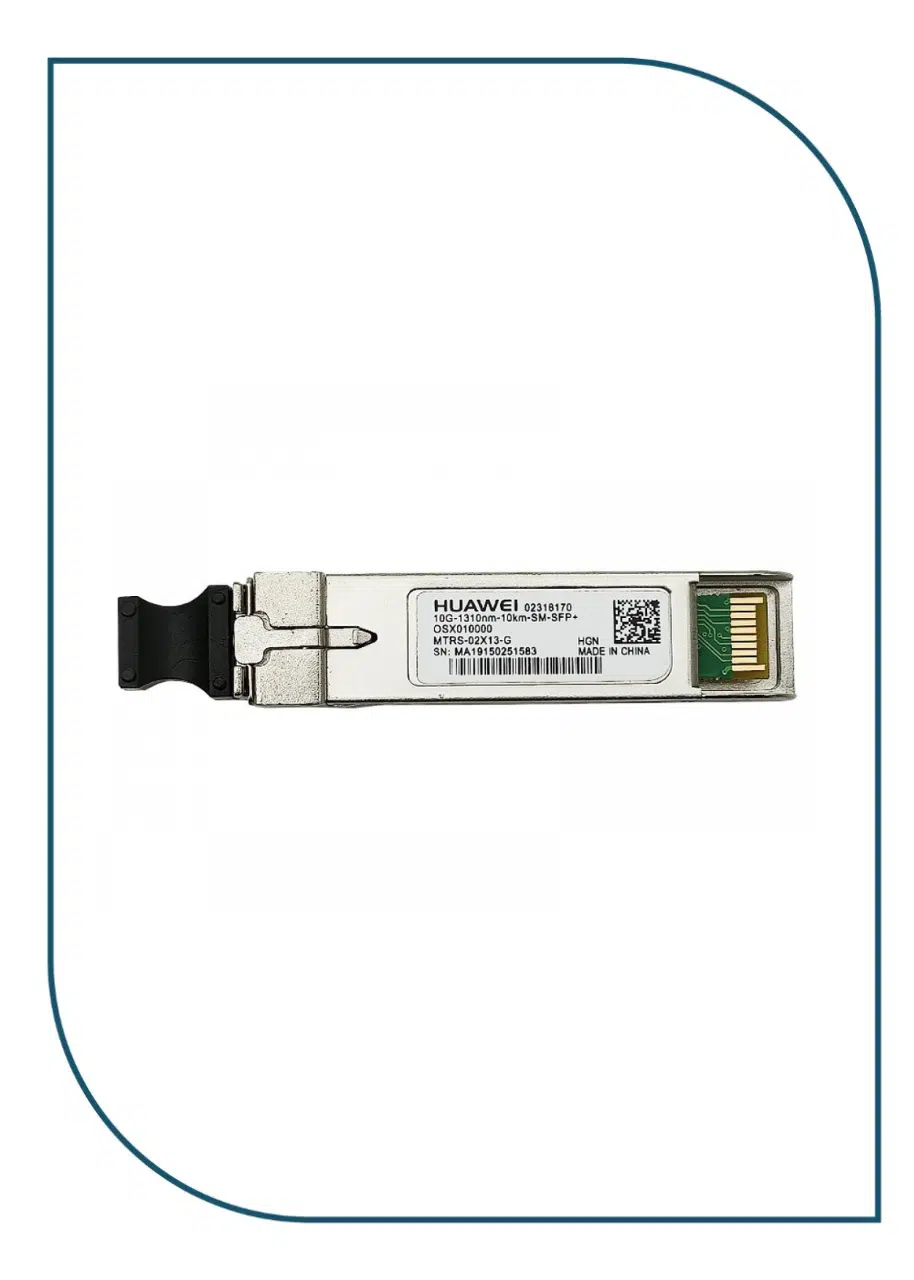

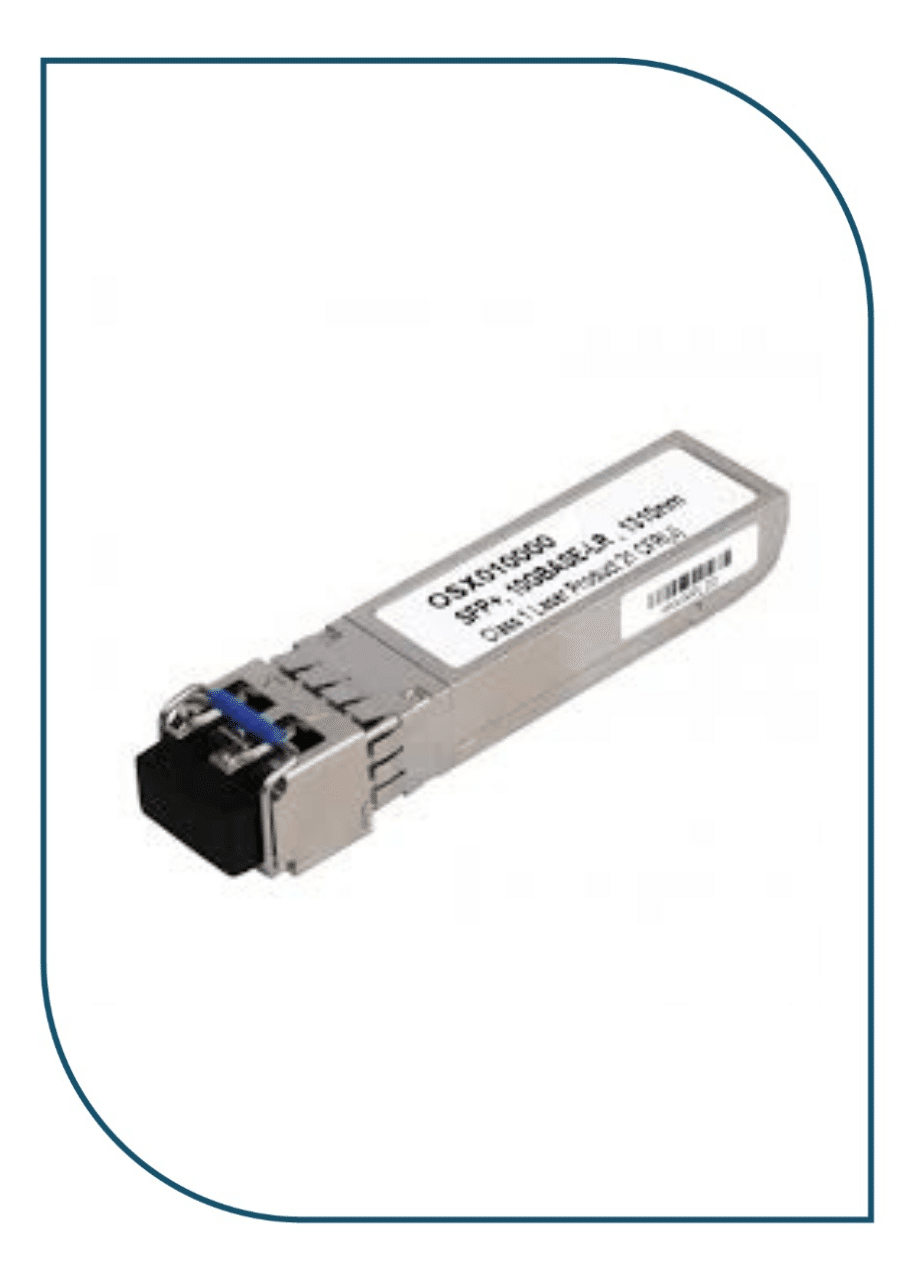

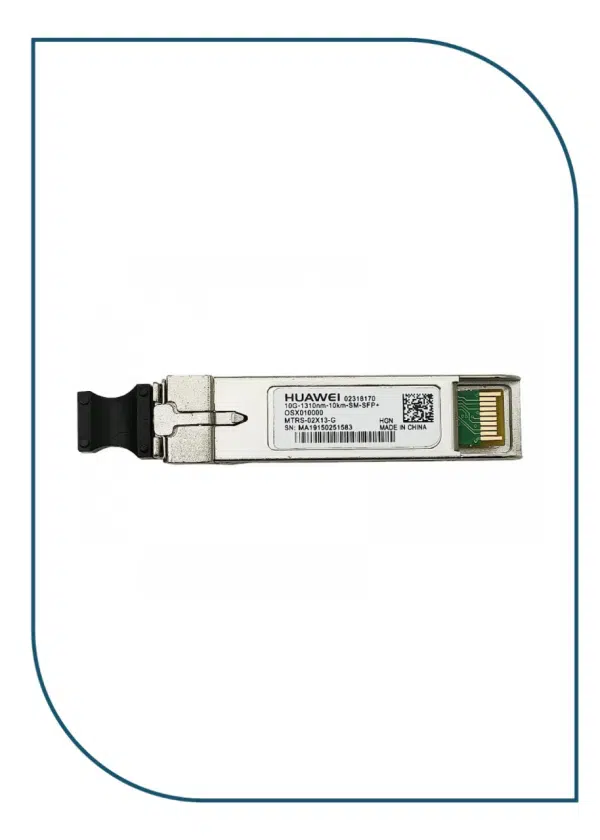

The Huawei OSX010000 is a 10 Gbps SFP+ optical transceiver designed for high-speed data transmission in enterprise and service-provider networks. It is used for fiber uplink connections between switches, routers, and network devices, delivering stable performance, low latency, and reliable optical communication. The module is fully compatible with Huawei SFP+ interfaces and is suitable for data centers and backbone network links
| Item | Value |
|---|---|
| Basic Information | |
| Part Number | 02318170 |
| Model | OSX010000 |
| Form factor | SFP+ |
| Application standard | 10GBASE-LR |
| Connector type | LC |
| Optical fiber type | SMF |
| Working case temperature [°C(°F)] | 0°C to 70°C (32°F to 158°F) |
| Digital diagnostic monitoring (DDM) | Supported |
| Transmission rate [bit/s] | 10 Gbit/s |
| Target transmission distance [km] | Single-mode fiber: 10 km |
| Transmitter Optical Characteristics | |
| Center wavelength [nm] | 1310 nm |
| Maximum Tx optical power [dBm] | 0.5 dBm |
| Minimum Tx optical power [dBm] | -8.2 dBm |
| Minimum extinction ratio [dB] | 3.5 dB |
| Receiver Optical Characteristics | |
| Rx sensitivity [dBm] | -12.6 dBm |
| Overload power [dBm] | 0.5 dBm |
