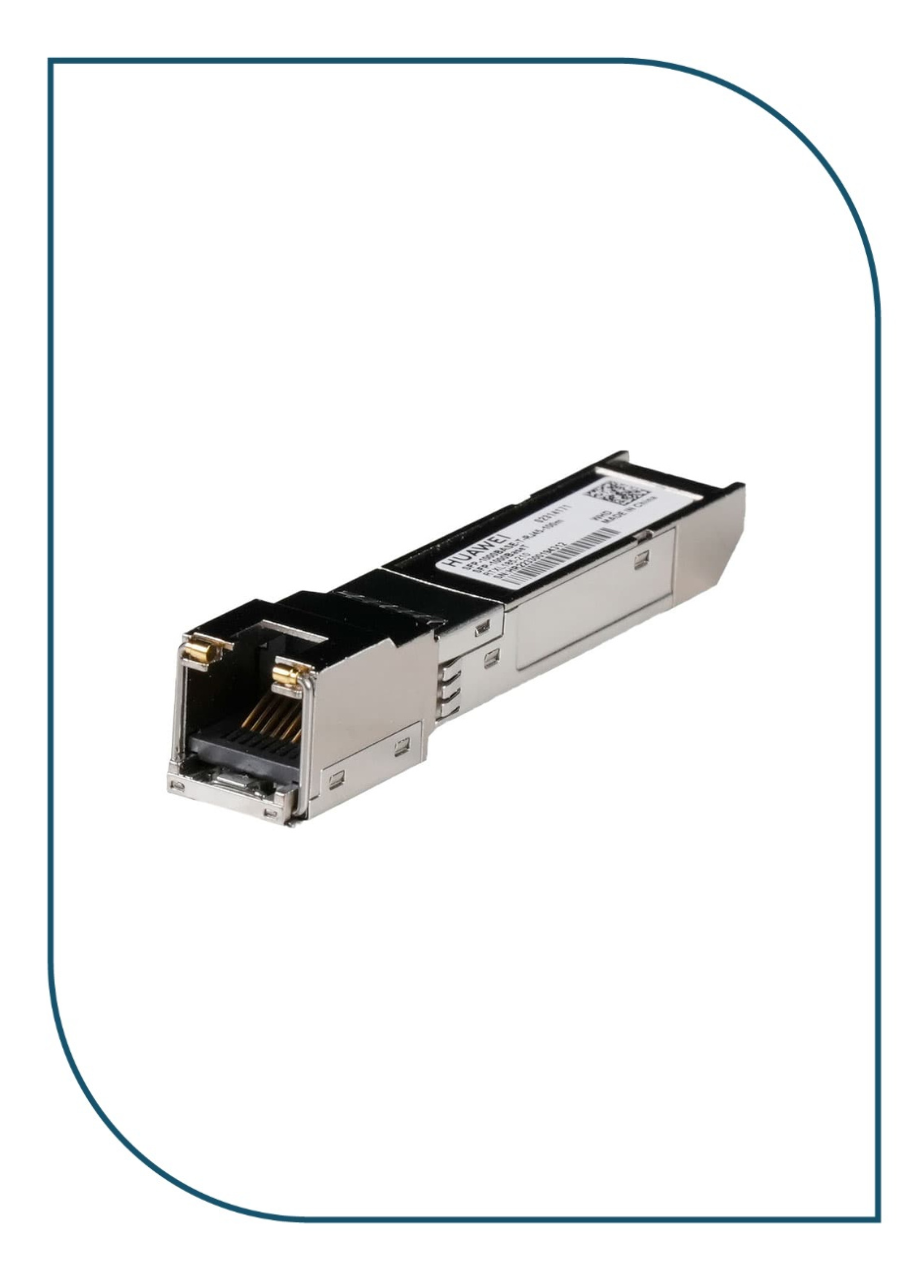

Huawei Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) (SFP-1000BaseT)
SFP-1000BaseT 1000base-t sfp module is a cost-effective and flexible solution that allows users to connect devices over long distances using existing copper infrastructure.
Description
specifications
The Huawei SFP-1000BaseT is a Gigabit Ethernet electrical SFP transceiver designed to provide 1 Gbps copper connectivity over Cat5e/Cat6 Ethernet cables. It supports transmission distances of up to 100 meters using an RJ45 interface, making it ideal for connecting switches, routers, and network devices where fiber is not required. The module is hot-swappable, energy-efficient, and fully compatible with Huawei SFP ports, ensuring reliable and stable network performance.
| Item | Value |
|---|---|
| Basic Information | |
| Module name | SFP-1000BaseT |
| Part Number | 02314171 |
| Model | SFP-1000BaseT |
| Form factor | SFP |
| Application standard | 1000BASE-T |
| Connector type | RJ45 |
| Optical fiber type | – |
| Digital diagnostic monitoring (DDM) | Not supported |
| Transmission rate [bit/s] | 10 Mbit/s
100 Mbit/s 1 Gbit/s |
| Target transmission distance [km] | Ethernet cable: 0.1 km |
| Transmitter Optical Characteristics | |
| Center wavelength [nm] | – |
| Maximum Tx optical power [dBm] | – |
| Minimum Tx optical power [dBm] | – |
| Minimum extinction ratio [dB] | – |
| Receiver Optical Characteristics | |
| Rx sensitivity [dBm] | – |
| Overload power [dBm] | – |
