Huawei eKitEngine AP266
Make SME Networks Easier and Smarter
Product Overview

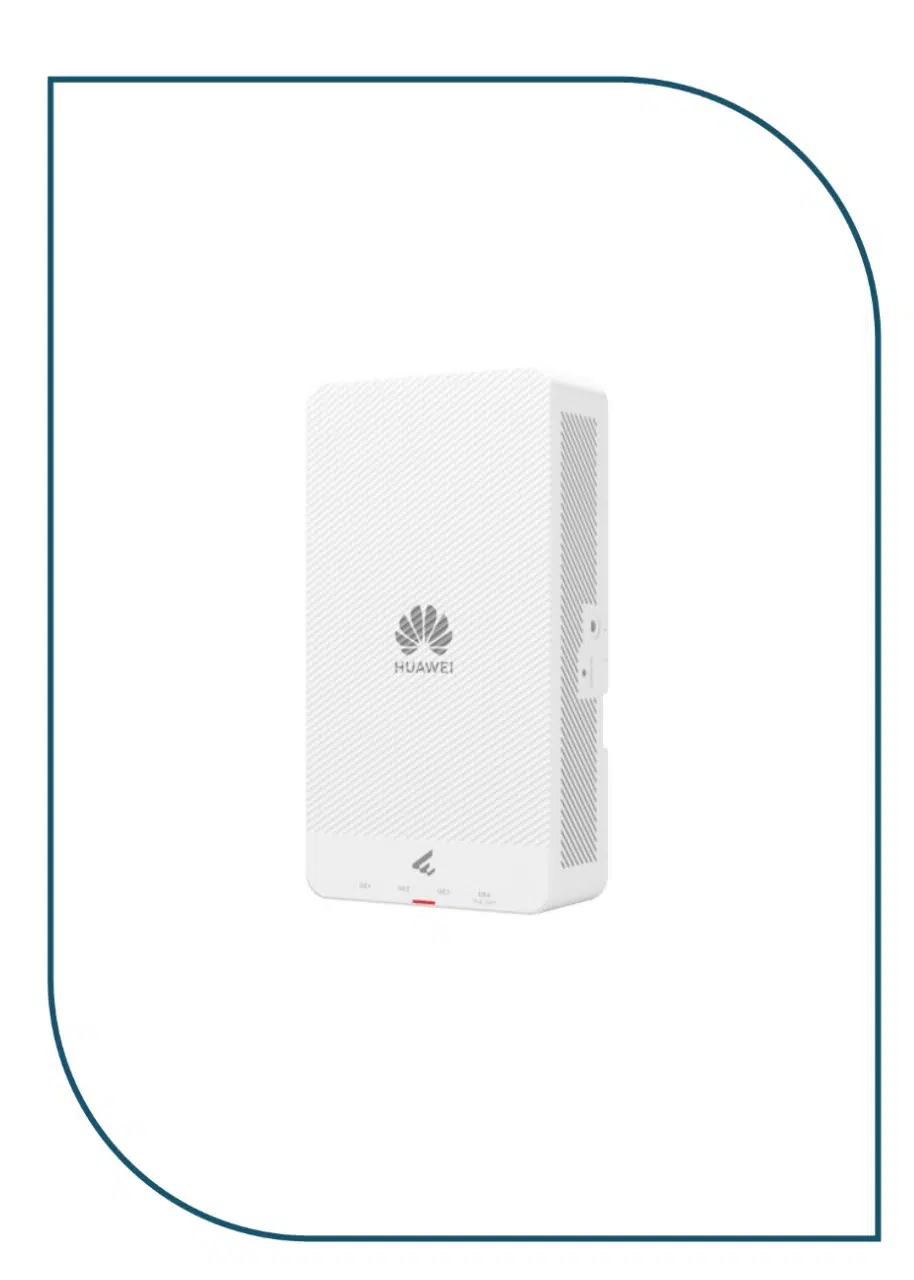

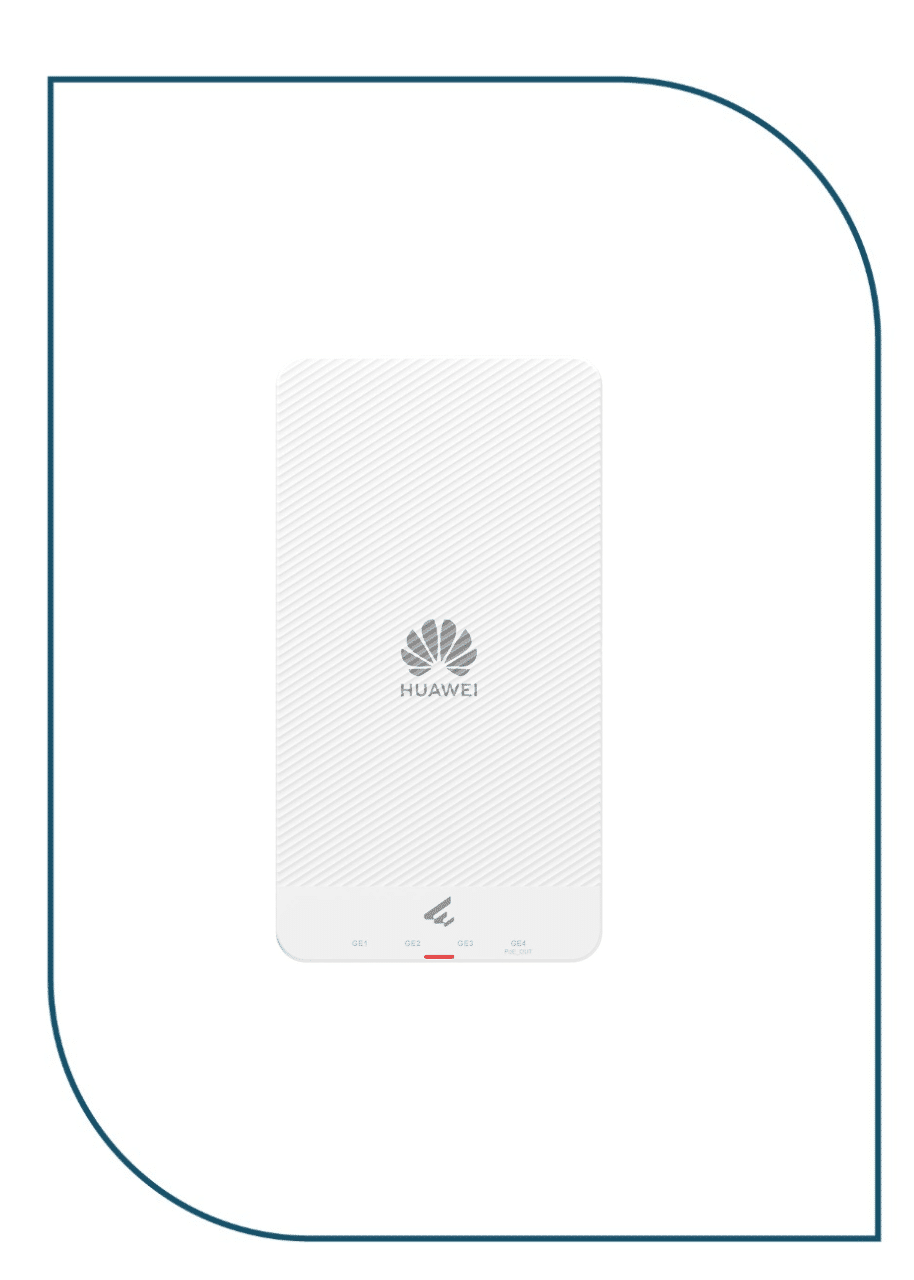

The Huawei eKitEngine AP266 is a slim indoor wall plate access point (AP) that complies with the Wi-Fi 6 (802.11ax) standard. It supports simultaneous dual-band operation on 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) with four spatial streams, achieving a data rate of up to 2.975 Gbps.

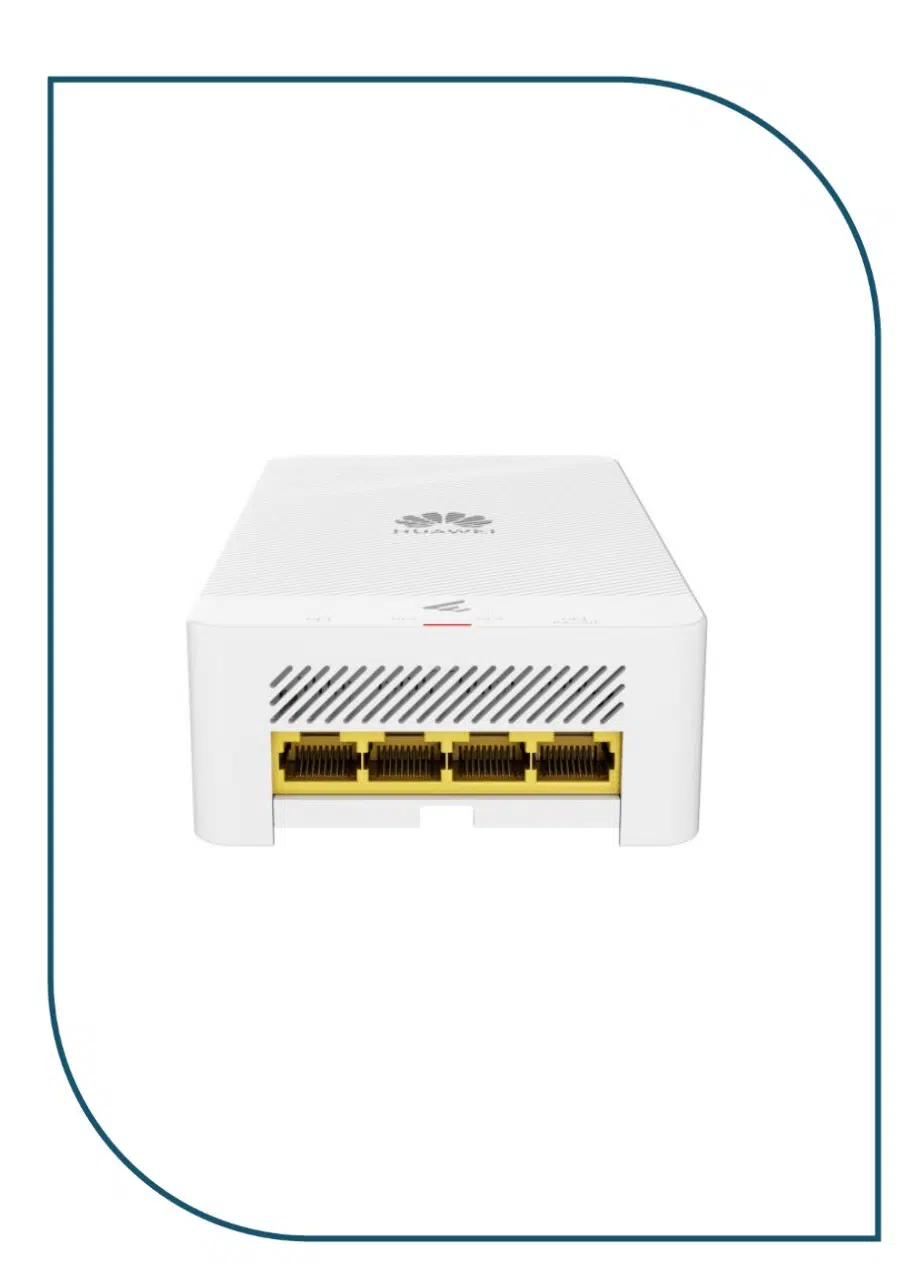

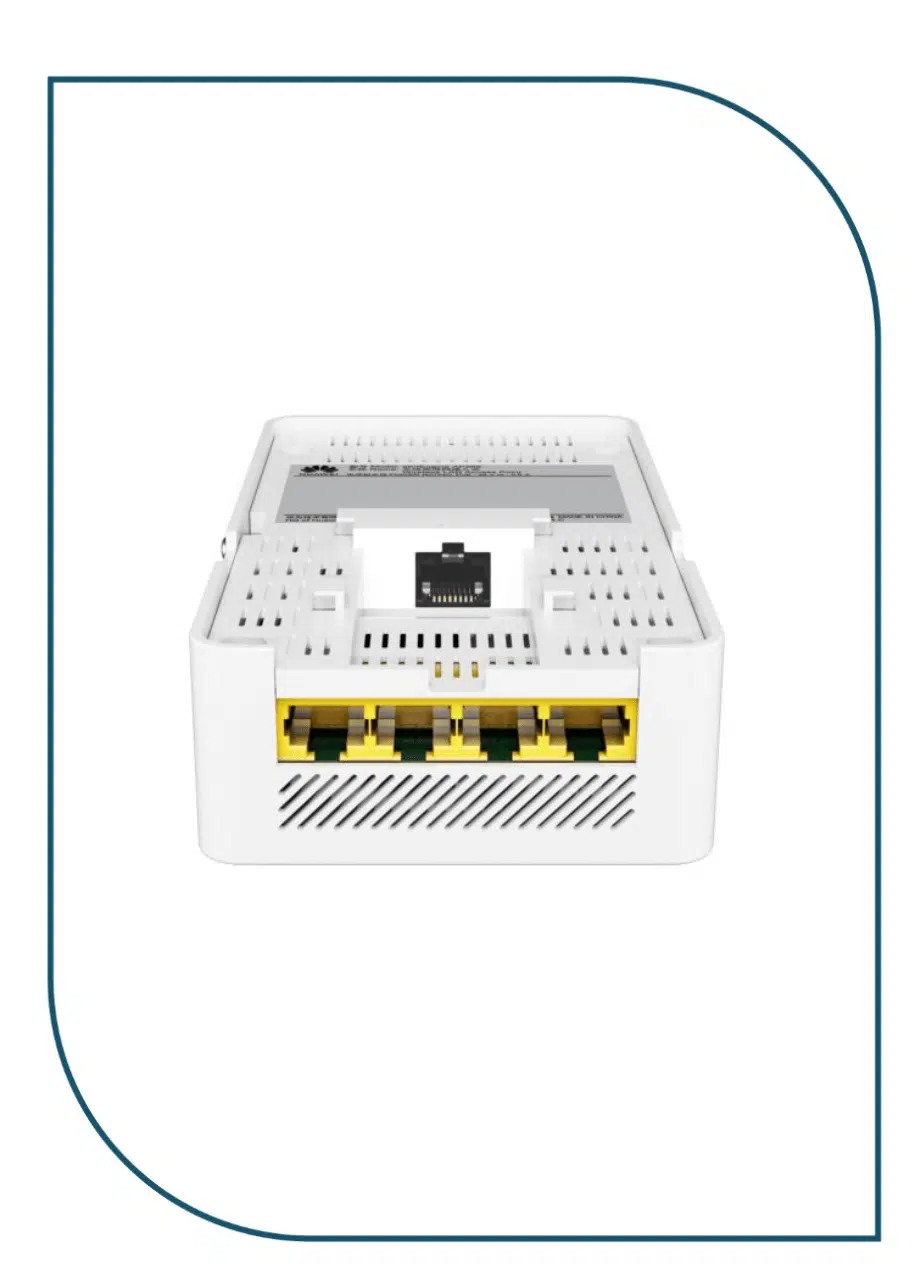

With one GE uplink port and four GE downlink ports (one supporting PoE OUT), this AP offers flexible deployment options, including installation on desks, walls, ceilings, or junction boxes. It is ideal for indoor environments such as budget hotels, hospitals, commercial stores, and schools.
The AP can be locally managed using EasyWeb or a wireless access controller (WAC) or remotely managed via the HUAWEI eKit App & SNC platform, simplifying network operations and maintenance.
Key Features
Wi-Fi 6 (802.11ax) Standard
- Enhances user access capacity and bandwidth in high-density scenarios, reducing latency and improving user experience.
- Multi-user multiple-input multiple-output (MU-MIMO) support on both 2.4 GHz and 5 GHz, allowing simultaneous data transmission to multiple stations (STAs).
- 1024-QAM modulation increases data transmission efficiency by 25% compared to 802.11ac (256-QAM).
MU-MIMO Technology
- Supports a maximum of four spatial streams (two on 2.4 GHz and two on 5 GHz).
- Enables simultaneous data transmission to multiple STAs, doubling radio spectrum efficiency and improving performance in high-density environments.
High-Speed Access
- Supports 160 MHz bandwidth for expanded transmission channels.
- Uses 1024-QAM and MU-MIMO to achieve up to 575 Mbps on 2.4 GHz and 2.4 Gbps on 5 GHz, totaling 2.975 Gbps.
Smart Antenna Technology
- Features dual-band smart antenna array technology and an intelligent switchover algorithm.
- Optimizes Wi-Fi coverage, reduces interference, and enhances signal quality for seamless connectivity.
Wired and Wireless Security
- Wireless security: Supports WEP, WPA/WPA2-PSK, WPA3-SAE, WPA/WPA2-PPSK, and WPA/WPA2/WPA3-802.1X authentication/encryption.
- Wired security: Includes AP access control, CAPWAP link protection, and Datagram Transport Layer Security (DTLS) encryption to enhance data transmission security.
Automatic Radio Calibration
- Collects signal strength and channel data from surrounding APs to build an optimized network topology.
- Automatically adjusts transmit power and channel selection based on interference and network load for optimal performance.
Cloud Management
- Supports cloud-based management with built-in authentication functions (PSK, Portal authentication) without requiring a WAC or authentication server.
- Can be integrated with the Huawei SNC platform for cloud-based network planning, deployment, and maintenance.
Easy Deployment & O&M via HUAWEI eKit App
- Wi-Fi-based deployment: Quickly connects to the AP’s management Wi-Fi for network setup and remote management.
- Barcode scanning-based deployment: Uses a mobile phone to scan the device serial number (SN) for seamless onboarding and management.
Product Features
| Description | AP266(11ax indoor,2+2 dual bands,smart antenna,PSE) |
| Part Number | 50087274 |
| Model | AP266 |
| First supported version | V200R024C00 |
| Technical Specifications | |
| Installation Type | Desk,Wall,Ceiling,Junction Box |
| Dimensions without packaging (H x W x D) [mm(in.)] | 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 187 mm x 108 mm x 68 mm (7.36 in. x 4.25 in. x 2.68 in.) |
| Weight without packaging [kg(lb)] | 0.23 kg (0.51 lb) |
| Weight with packaging [kg(lb)] | 0.42 kg (0.93 lb) |
| Storage | NAND Flash 256 MB |
| Console port | Not supported |
| Maximum power consumption [W] | 9.4 W (excluding PoE out) |
| Maximum heat dissipation [BTU/hour] | 32.07 |
| Power supply mode | PoE |
| Rated input voltage [V] | NA |
| Input voltage range [V] | PoE: 802.3at/af |
| Service port surge protection | PoE ports: |
| Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B | |
| Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B | |
| Non-PoE ports: | |
| Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B | |
| PoE OUT | Supported |
| Maximum PoE output power [W] | 15 W |
| Maximum number of physical ports on the entire device | GE (RJ45) x 5, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| USB | Not supported |
| IoT slot | Not supported |
| BLE | Not supported |
| Radio number | 2 |
| Operating frequency band | 2.4GHz,5GHz |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2×2 |
| Radio 1 (5 GHz): 2×2 | |
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax |
| 5 GHz: 802.11a/n/ac/ac Wave 2/ax | |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G: |
| 4 dBi/chain (peak value) | |
| 2 dBi (combined gain) | |
| 5G: | |
| 4 dBi/chain (peak value) | |
| 1 dBi (combined gain) | |
| Maximum transmit power | 2.4G: |
| 20 dBm/chain | |
| 23 dBm (combined power) | |
| 5G: | |
| 20 dBm/chain | |
| 23 dBm (combined power) | |
| MTBF [year] | 235.46 |
| MTTR [hour] | 2 |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description | The power supply mode is negotiated to 802.3at, and no function is restricted. |
| 802.3at power supply description | The power supply mode is negotiated to 802.3at, and no function is restricted. |
| 802.3af power supply description | The power supply mode is negotiated to 802.3af, and the PSE out function is unavailable. |
| DC power supply description | Not supported |
