Description

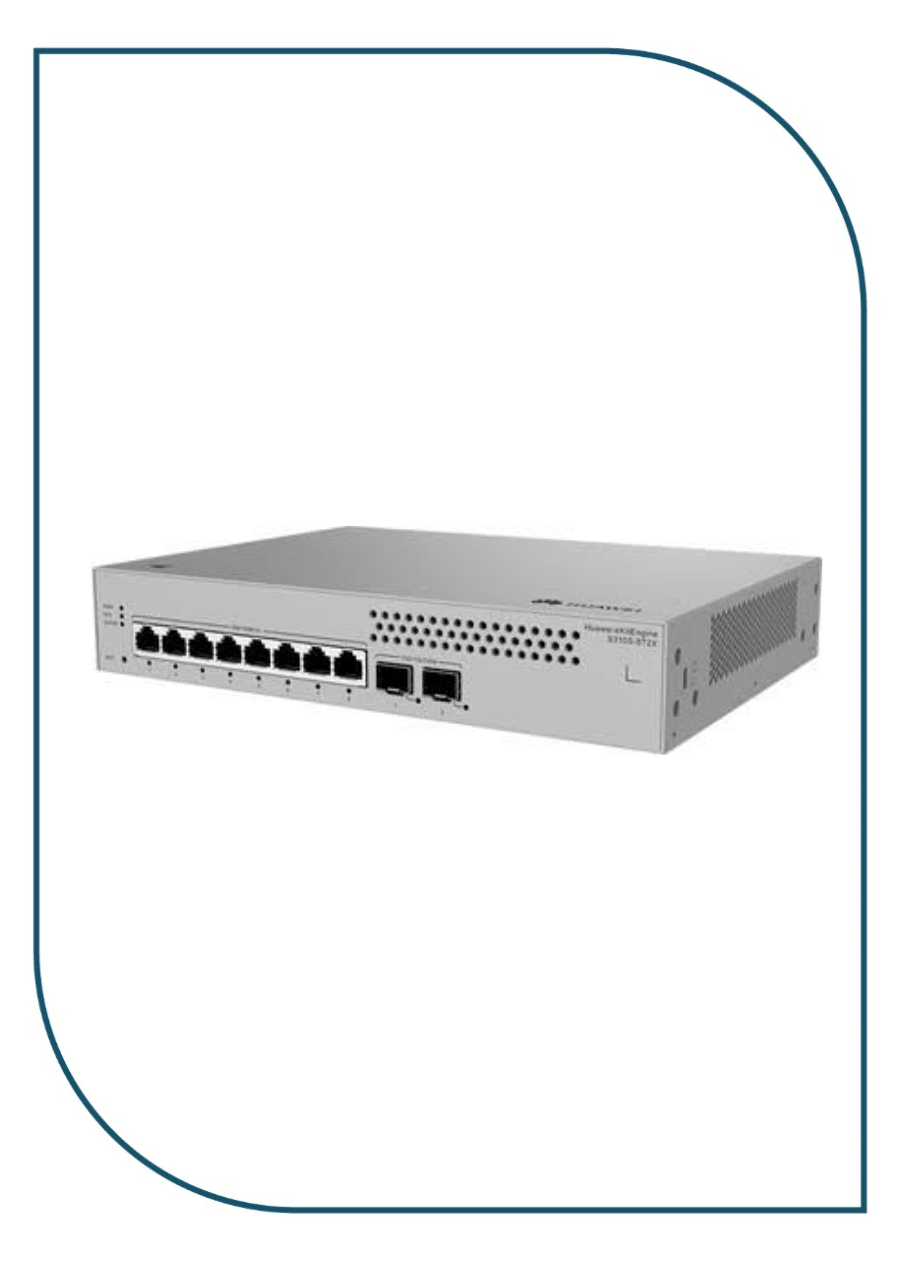

S310S-8T2X
| Specification | Details |
|---|
| Model | S310S-8T2X |
| Switch Type | Managed |
| Switch Layer | L2+ |
| Downlink Ports | 8 × 10/100/1000BASE-T (RJ-45) ports |
| Uplink Ports | 2 × 10GE SFP+ ports |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 42 Mpps |
| MAC Address Table | 16,000 entries |
| Dimensions (H × W × D) | 43.6 mm × 250 mm × 180 mm (1.72 in. × 9.84 in. × 7.09 in.)
Huawei Support
|
| Chassis Height | 1U |
| Chassis Material | Metal |
| Weight Without Packaging | 1.97 kg (4.34 lb) |
| Weight With Packaging | 2.76 kg (6.08 lb) |
| Typical Power Consumption | 21.32 W |
| Typical Heat Dissipation | 72.75 BTU/hour |
| Maximum Power Consumption | 21.9 W |
| Maximum Heat Dissipation | 74.72 BTU/hour |
| Static Power Consumption | 11.14 W |
| MTBF (Mean Time Between Failures) | 59.31 years |
| Availability | > 0.99999 |
| Operating Temperature | –5°C to +40°C (23°F to 104°F) at 0–1800 m (0–5905.44 ft.) |
| Storage Temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating Relative Humidity | 5% RH to 95% RH (non-condensing) |
| Operating Altitude | 0–5000 m (0–16404 ft.) |
| Storage Altitude | 0–5000 m (0–16404 ft.) |
| Power Supply Mode | AC built-in |
| Rated Input Voltage | 100–240 V AC; 50/60 Hz |
| Input Voltage Range | 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum Input Current | 0.8 A |
| Power Supply Surge Protection | ±4 kV in differential mode and ±4 kV in common mode |
| Ingress Protection Level (Dustproof/Waterproof) | IP20 |
| Heat Dissipation Mode | Fanless, natural heat dissipation |
| Airflow Direction | Not applicable (fanless design) |
| PoE Support | Not supported |
| Management Features | Web-based management, Cloud-managed |
| Security Features | – DHCP client, DHCP snooping – Access Control List (ACL) – IGMP snooping – Security algorithms: HTTPS, SSH |
| LED Indicators | Supported |
