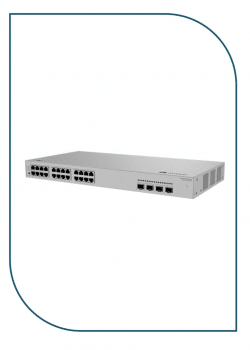

Huawei ekit S310S-24P4JX SWITCH
S310S-24P4JX
“24 x 10/100/1000BASE-T PoE+ port2 x 10GE SFP+ ports
2 x 2.5GE SFP ports | PoE |
Packet forwarding rate: 73 Mpps
Switching capacity: 98 Gbit/s”
20.478,00 EGP
Buy NowDescription
S310S-24P4JX
| Specification | Details |
|---|---|
| Model | S310S-24P4JX |
| Switch Type | Managed |
| Switch Layer | L2+ |
| Downlink Ports | 24 × 10/100/1000BASE-T (RJ-45) ports with PoE+ support |
| Uplink Ports | – 2 × 2.5GE SFP ports – 2 × 10GE SFP+ ports |
| PoE Standard | IEEE 802.3at (PoE+) |
| PoE Budget | 400 W |
| Switching Capacity | 98 Gbps |
| Packet Forwarding Rate | 66 Mpps |
| MAC Address Table | 16,000 entries |
| Dimensions (H × W × D) | 43.6 mm × 442 mm × 220 mm (1.72 in. × 17.40 in. × 8.66 in.)
support.huawei.com
|
| Chassis Height | 1U |
| Chassis Material | Metal |
| Weight Without Packaging | 3.75 kg (8.27 lb) |
| Weight With Packaging | 4.86 kg (10.71 lb) |
| Typical Power Consumption | 33.33 W |
| Typical Heat Dissipation | 113.68 BTU/hour |
| Maximum Power Consumption | – Without PoE: 38.58 W – Full PoE load: 438.58 W (PoE: 400 W) |
| Maximum Heat Dissipation | – Without PoE: 131.63 BTU/hour – Full PoE load: 1496.63 BTU/hour |
| Static Power Consumption | 18.93 W |
| MTBF (Mean Time Between Failures) | 42.47 years |
| Availability | > 0.99999 |
| Operating Temperature | –5°C to +45°C (23°F to 113°F) at 0–1800 m (0–5905.44 ft.) |
| Storage Temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating Relative Humidity | 5% RH to 95% RH (non-condensing) |
| Operating Altitude | 0–5000 m (0–16404 ft.) |
| Storage Altitude | 0–5000 m (0–16404 ft.) |
| Power Supply Mode | AC built-in |
| Rated Input Voltage | 100–240 V AC; 50/60 Hz |
| Input Voltage Range | 90 V AC to 290 V AC; 45 Hz to 65 Hz |
| Maximum Input Current | 6 A |
| Power Supply Surge Protection | ±6 kV in differential mode and ±6 kV in common mode |
| Ingress Protection Level (Dustproof/Waterproof) | IP20 |
| Heat Dissipation Mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow Direction | Air intake from left and front, air exhaustion from right |
| Management Features | Web-based management, Cloud-managed |
| Security Features | – DHCP client, DHCP snooping – Access Control List (ACL) – IGMP snooping – Security algorithms: HTTPS, SSH |
| LED Indicators | Supported |
