Description

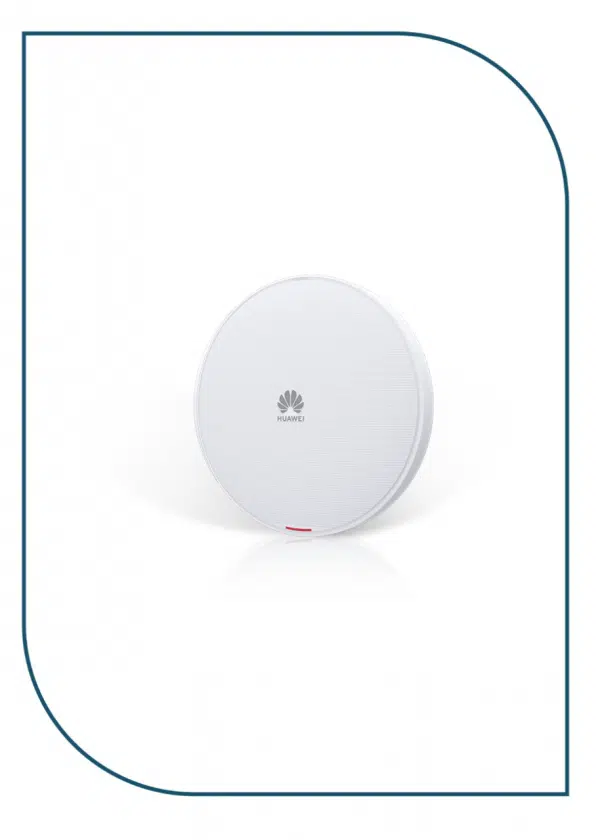

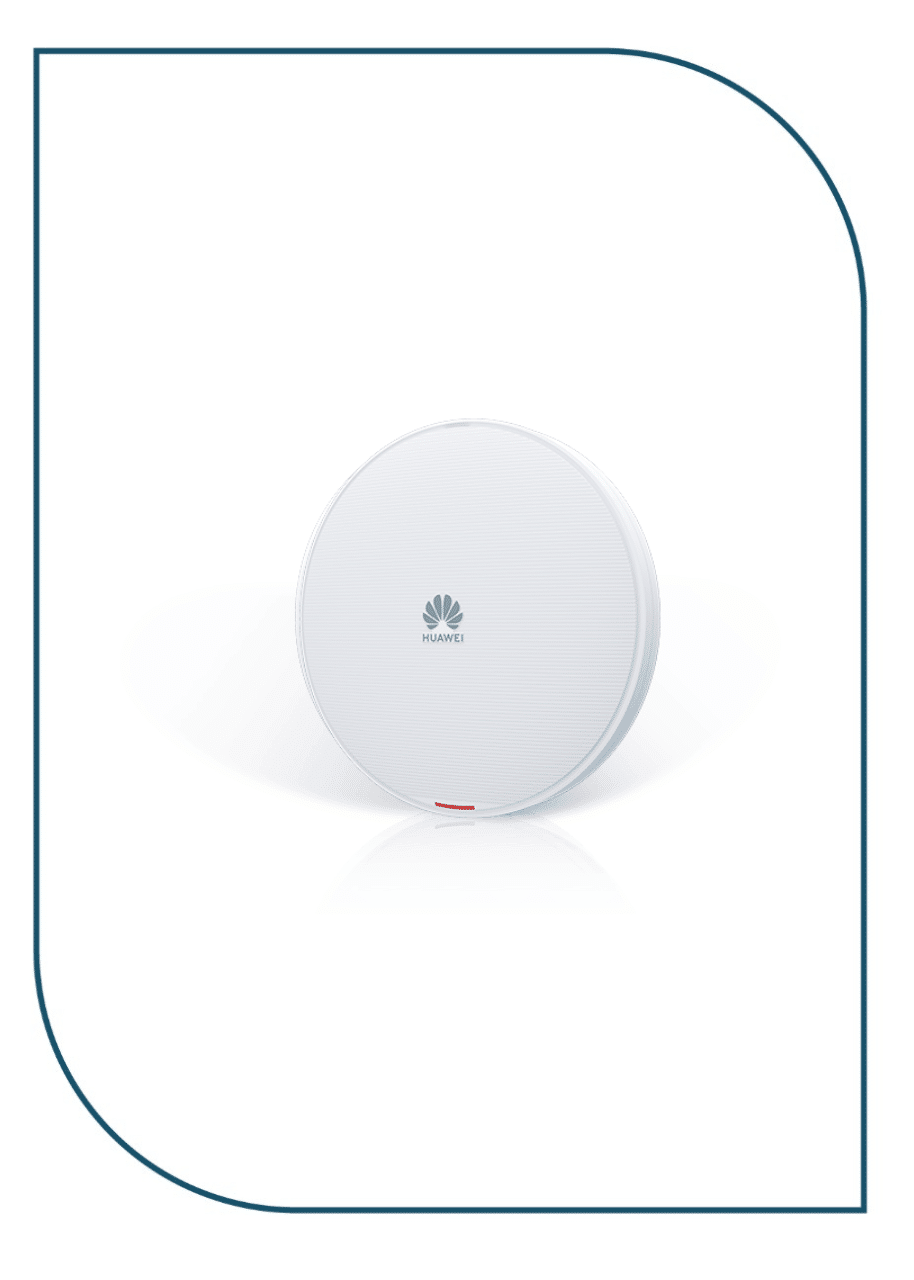

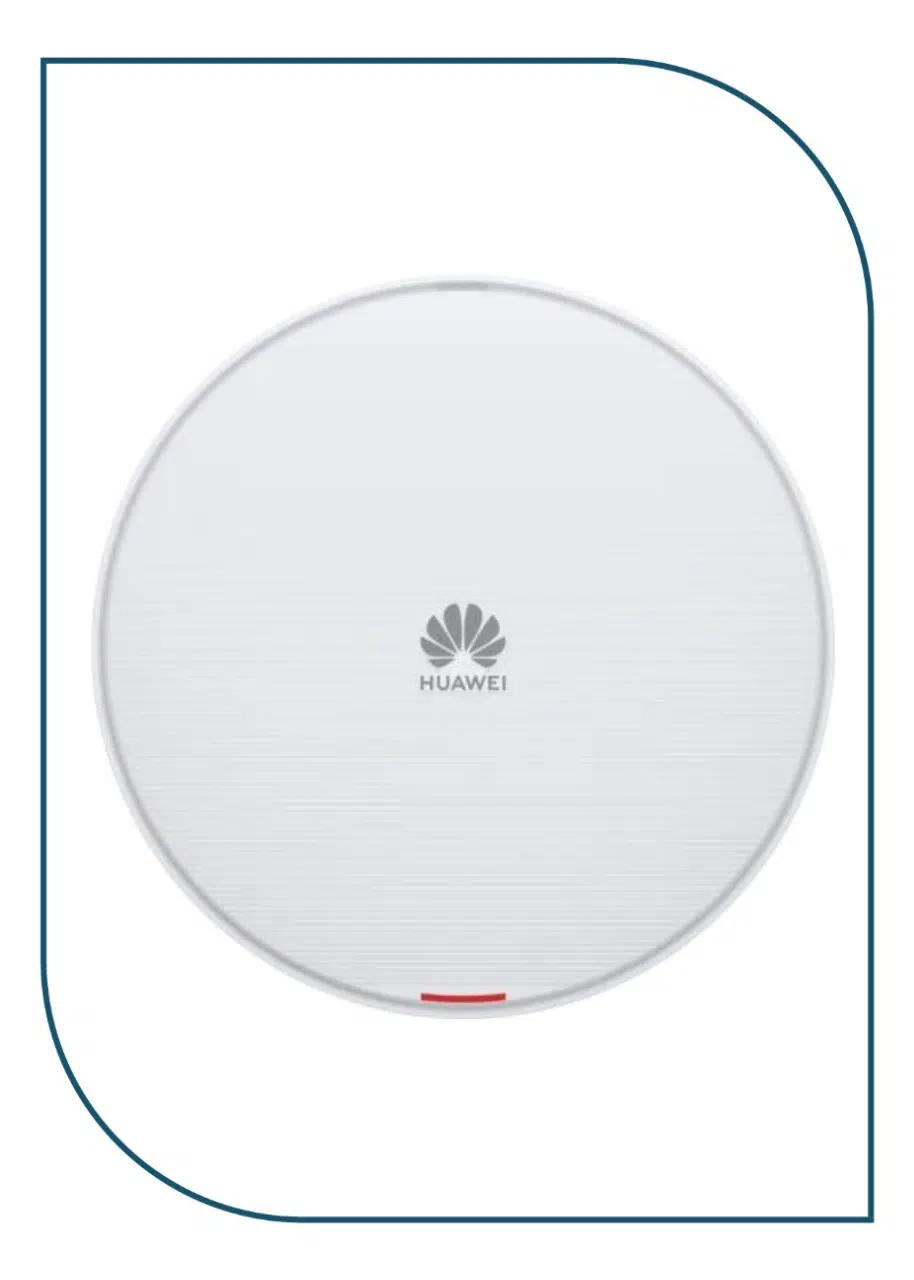

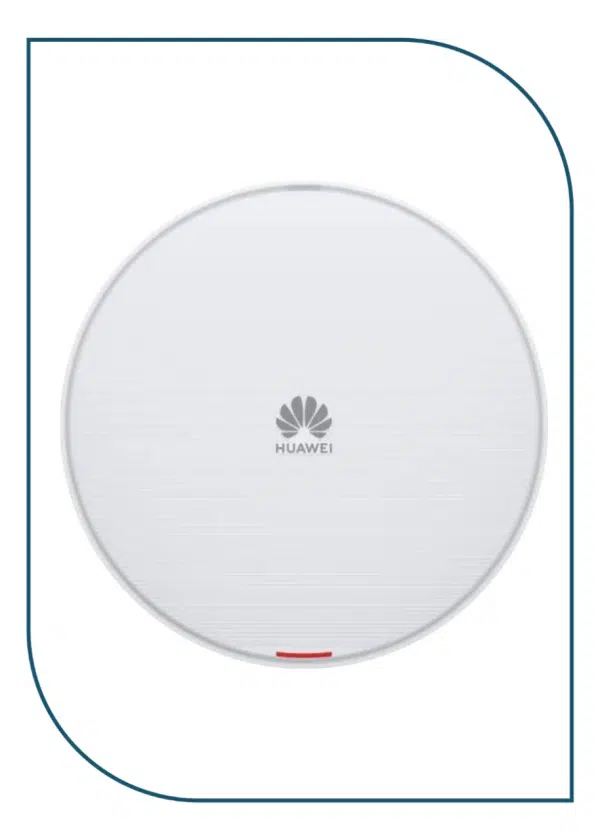

The Huawei AirEngine 5761-11 is a next-generation Wi-Fi 6 (IEEE 802.11ax) indoor Access Point designed to deliver high-speed, reliable wireless connectivity for small and medium-sized businesses, offices, hotels, hospitals, retail stores, cafés, and educational institutions.
Featuring dual-band 2×2 MU-MIMO, built-in Smart Antennas, and an aggregate wireless throughput of up to 1.775 Gbps, the AirEngine 5761-11 automatically optimizes signal coverage, minimizes interference, and improves user experience in high-density environments. Wi-Fi 6 technologies such as OFDMA, MU-MIMO, 1024-QAM, BSS Coloring, and Target Wake Time (TWT) increase network efficiency, reduce latency, and extend battery life for connected devices.
The access point includes a Gigabit Ethernet uplink with PoE support, a USB port for IoT expansion (such as ZigBee or RFID modules), and integrated Bluetooth for simplified deployment and maintenance through the Huawei CloudCampus App. It supports Fat, Fit, and Cloud operating modes, allowing flexible deployment for networks of any size.
Specifications
| Feature | Specification |
|---|---|
| Model | Huawei AirEngine 5761-11 |
| Product Type | Indoor Wi-Fi 6 Access Point |
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
| Backward Compatibility | 802.11a/b/g/n/ac/Wave 2 |
| Frequency Bands | 2.4 GHz & 5 GHz |
| MIMO | 2×2:2 @ 2.4 GHz + 2×2:2 @ 5 GHz |
| Spatial Streams | 4 |
| Maximum Wireless Speed | Up to 1.775 Gbps |
| 2.4 GHz Speed | Up to 575 Mbps |
| 5 GHz Speed | Up to 1.2 Gbps |

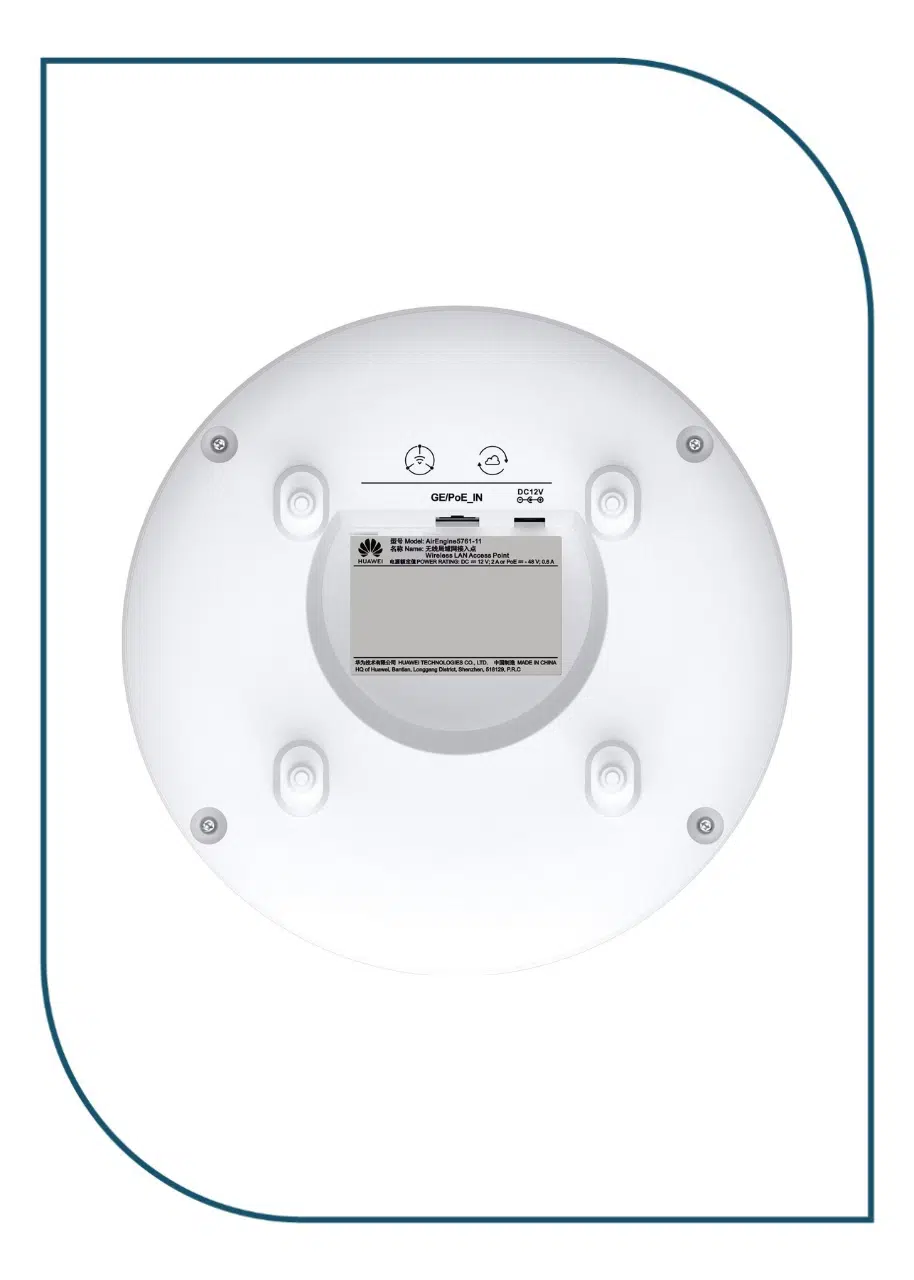

| Ethernet Port | 1 × 10/100/1000 Mbps GE (PoE In) |
| Power Supply | IEEE 802.3af/at PoE or 12V DC |
| USB Port | USB 2.0 for IoT Expansion |
| Bluetooth | Built-in BLE for O&M |
| Antennas | Built-in Smart Antennas |
| Maximum Users | Up to 1,024 (environment dependent) |
| Management | Web, CloudCampus, Controller, App |
| Operating Modes | Fat, Fit, Cloud |
| Maximum Power Consumption | 15.3 W (excluding USB devices) |
| Dimensions | Ø220 × 50 mm |
| Weight | Approx. 1.05 kg |
| Operating Temperature | -10°C to +50°C |
| Typical Applications | Offices, Hotels, Schools, Hospitals, Retail Stores, Cafés |
