HPE (JD119A) Compatible 1000BASE-LX SFP 1310nm 10km Duplex LC/UPC SMF Transceiver Module

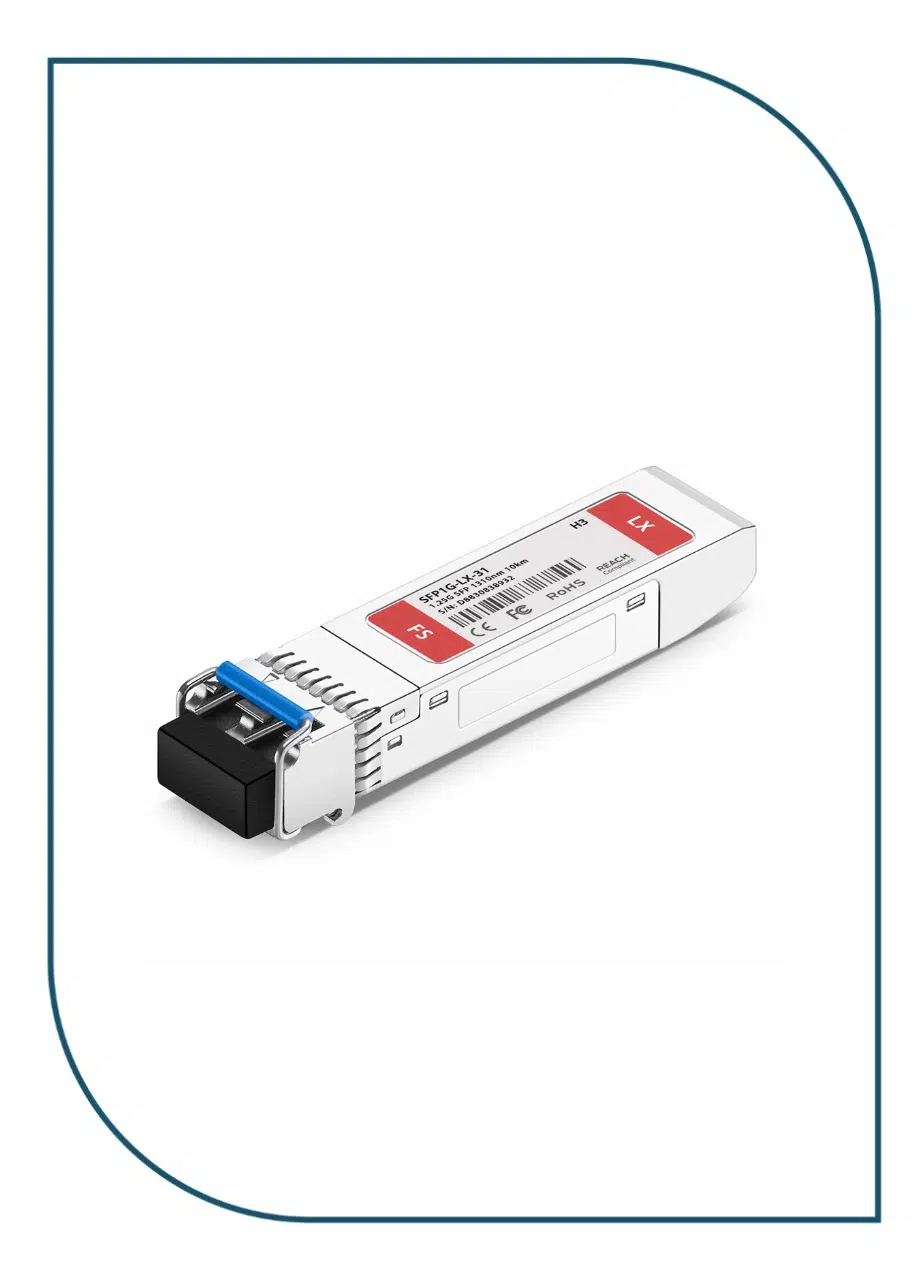

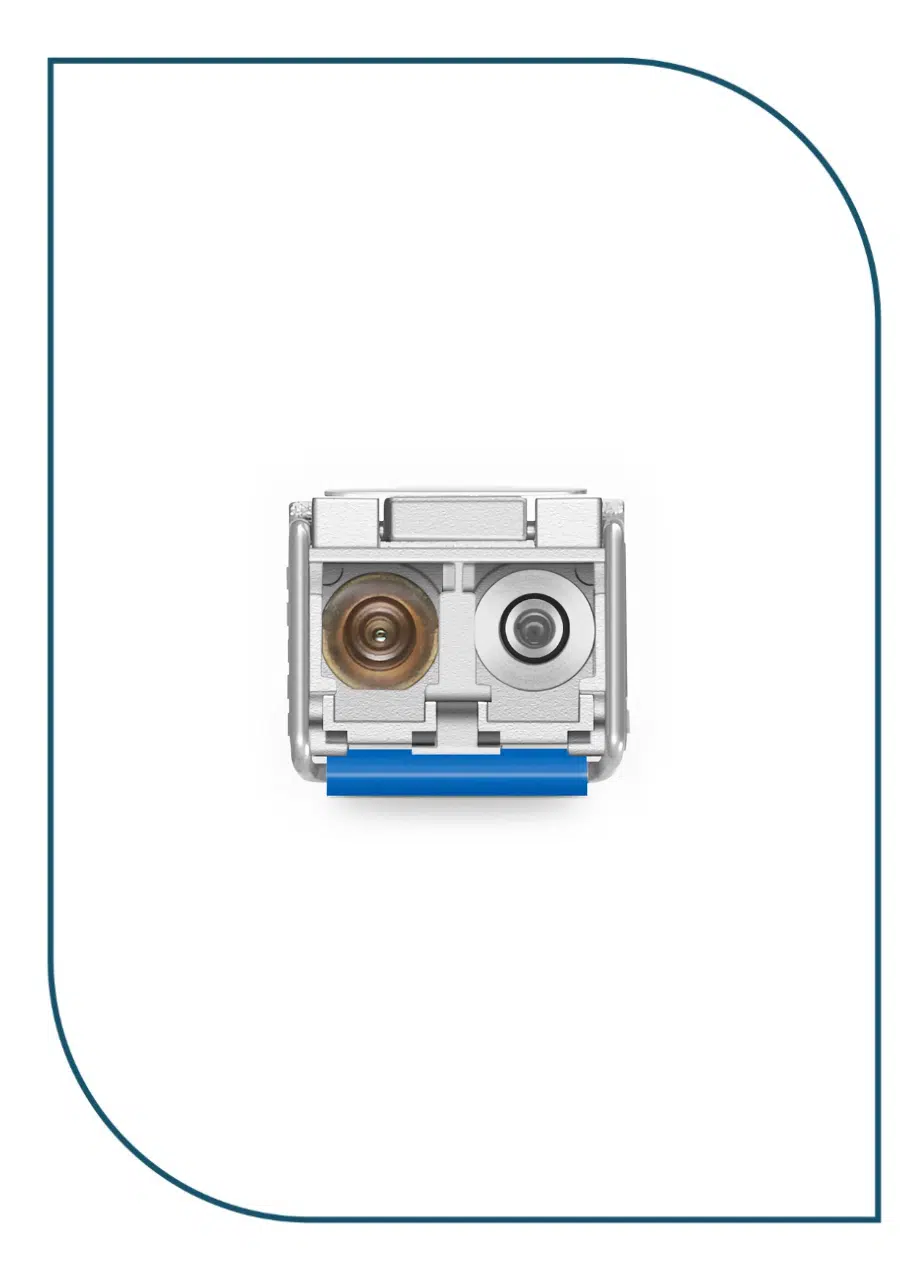

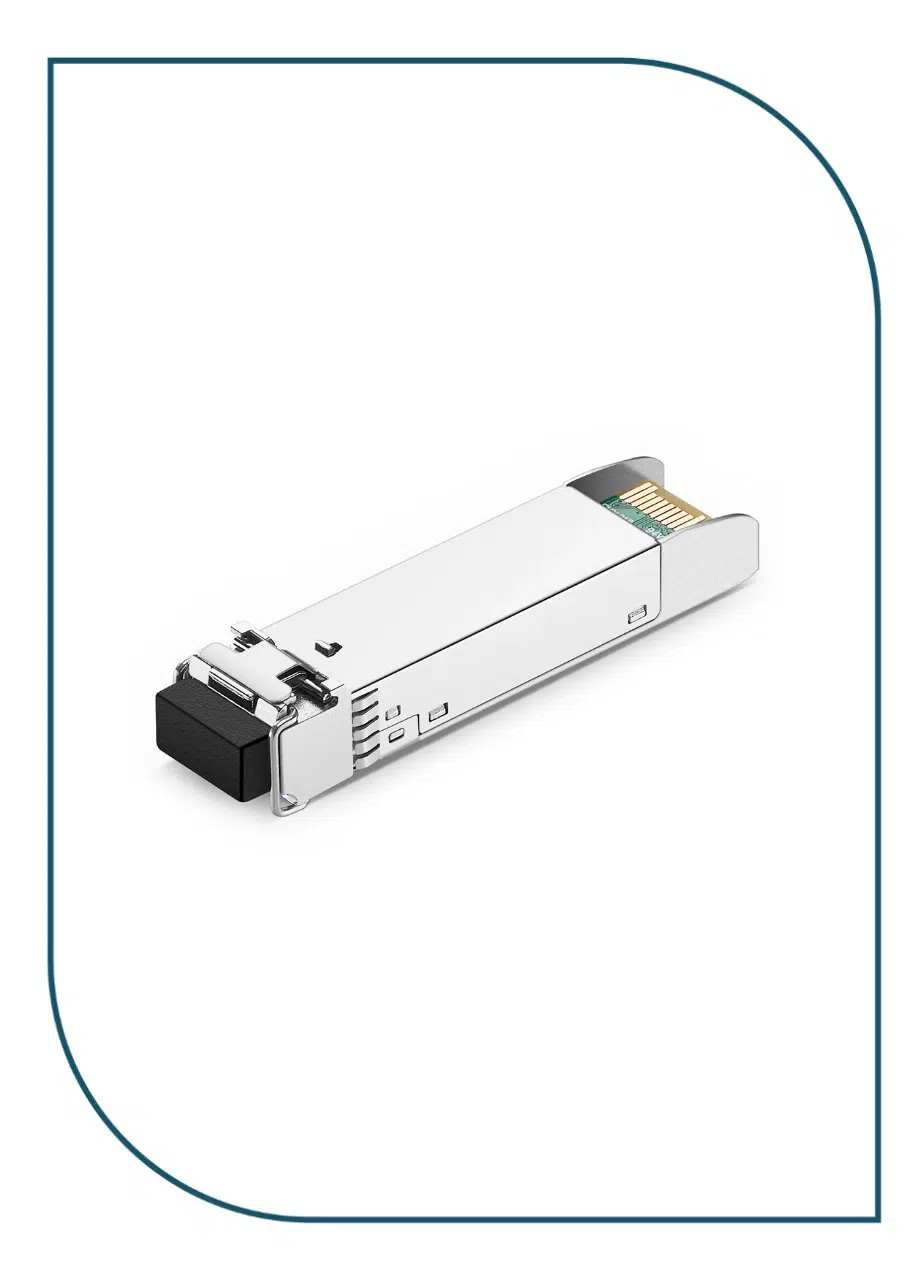

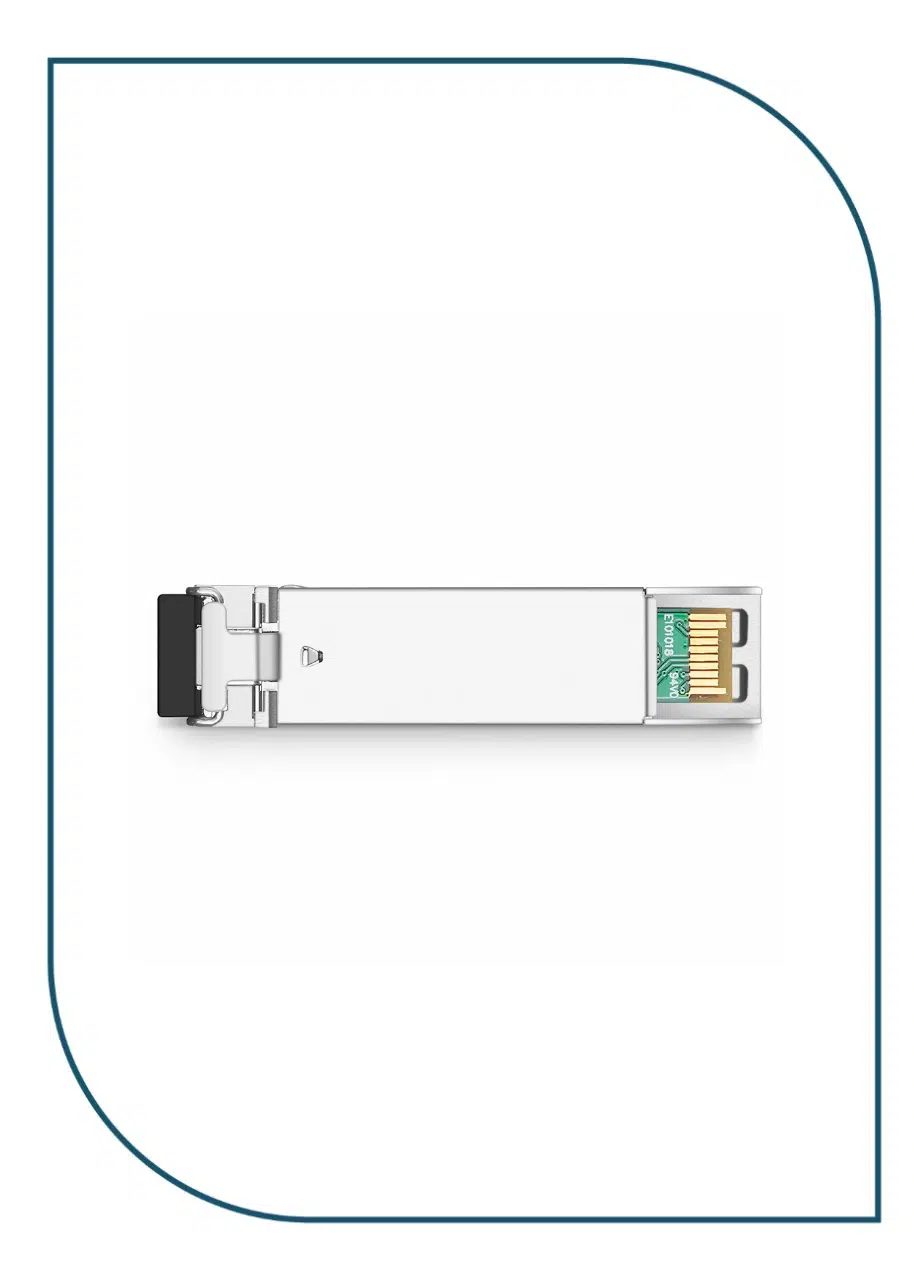

The HPE (JD119A/JD119B Compatible) 1000BASE-LX SFP Transceiver Module is a high-performance Gigabit fiber optic module designed for reliable long-distance network connectivity. Operating at a 1310nm wavelength, it supports data transmission speeds up to 1.25 Gbps over single-mode fiber (SMF) for distances of up to 10km. Featuring a Duplex LC/UPC connector, hot-swappable design, and broad compatibility with HPE and Aruba networking equipment, it is an ideal solution for enterprise networks, campus environments, and fiber backbone deployments.

Buy Now

Availability: In Stock

SKU:JD119A

Categories:Transceivers

Brands:Aruba

Brand: Aruba

Description

Specifications

Specification	Details
Model	HPE JD119A / JD119B Compatible
Product Type	SFP Fiber Optic Transceiver
Form Factor	SFP (Small Form-Factor Pluggable)
Ethernet Standard	1000BASE-LX
Data Rate	1.25 Gbps
Connector Type	Duplex LC/UPC
Fiber Type	Single-Mode Fiber (SMF)
Wavelength	1310 nm
Maximum Distance	Up to 10 km
Optical Interface	LC Duplex
Transmission Mode	Full Duplex
Digital Diagnostic Monitoring	Supported (DDM/DOM)
Hot Swappable	Yes
IEEE Standard	IEEE 802.3z 1000BASE-LX
Power Consumption	≤ 1W
Operating Temperature	0°C to 70°C
Compatibility	HPE, Aruba, HP Networking Switches and Routers with SFP Ports
Applications	Enterprise Networks, Campus Networks, Fiber Backbone Links, Data Centers

The module supports Gigabit Ethernet over single-mode fiber using a 1310nm wavelength and transmission distances up to 10km through LC duplex connectors. -swappable SFP form factor** enables easy installation and replacement without interrupting network operations. make it an ideal solution for extending Gigabit Ethernet connections across buildings, campuses, and fiber backbone infrastructures. seeking scalable and high-performance network infrastructure.
