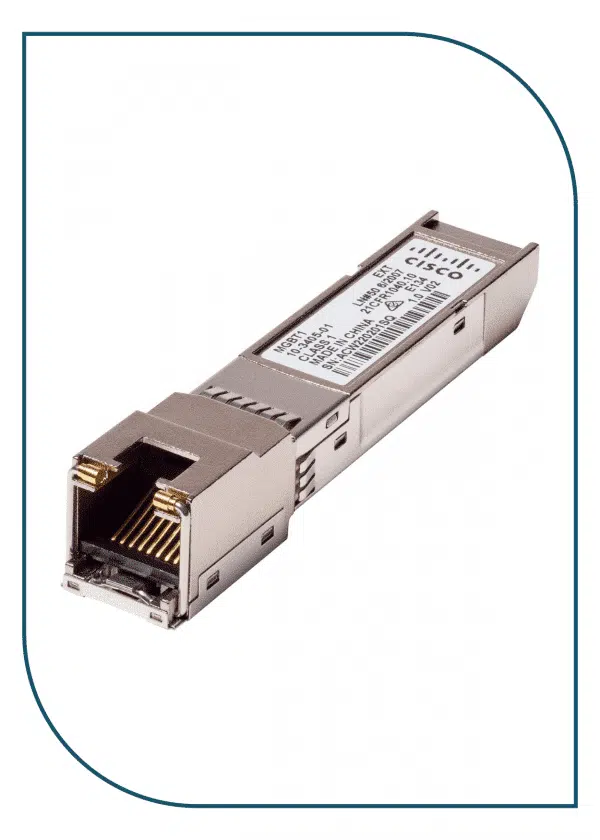

Cisco MGBT1 – Gigabit Ethernet 1000BASE-T Mini-GBIC SFP Transceiver

Description

Data Sheet

• The Cisco MGBT1 is a 1000BASE-T copper SFP module. It turns any SFP port into a Gigabit RJ45 port, so you can use standard Cat5e copper cable for uplinks or extra connections up to 100 m without fiber. It plugs into any SFP port on Cisco Business switches and is hot-swappable, so you can install or replace it without powering down the switch. It’s backed by Cisco’s 5-year limited hardware warranty.

  Key features

  • Turns an SFP slot into a Gigabit RJ45 copper port
  • Up to 100 m over standard Cat5e UTP cable
  • No fiber or media converter needed
  • Hot-swappable, so the network keeps running while you install it
  • Low power use: 1 W max
  • Works with Cisco 110, 220, 250, 350, 350X and 550X Series switches

  Spec	Value
  Part number	MGBT1
  Type	1000BASE-T SFP (Mini-GBIC)
  Speed	Gigabit Ethernet
  Cable type	Category 5e UTP copper
  Connector	RJ-45
  Max distance	Up to 100 m
  Power consumption	1 W max
  Operating temperature	0°C to 70°C
  Dimensions	13.4 × 8.5 × 66 mm
  Hot-swappable	Yes
  Compatible switches	Cisco 110, 220, 250, 350, 350X, 550X Series
