Description
JL805A
Key Features
- Smart-managed layer 2+ Ethernet switch series ready to deploy in 24- and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models
- Up to 600W of PoE to power APs, IP Phones, surveillance cameras, door locks and other IoT devices
- 2 dedicated 10G SFP+ fiber and 2 10GBase-T uplink ports on 24-/48-port models for faster network speeds, and to eliminate traffic bottlenecks
- 10G copper and 10G SFP uplinks are supported on 12-port access switch with m-gig ports as well.
- The 12 port access switch has 8x1GbE and 4×2.5GbE autosensing ports and RJ-45/SFP+ Uplink ports to support next generation devices
- The 12 port aggregation switch comes with 12 ports of 10GBase-T to easily add expand your network reach to other stacks modernizing your network topology.
- True Stacking allows for redundancy while making it simple to configure, manage, and troubleshoot multiple switches as a single entity
- Luggage tag for easy cloud onboarding
- Convenient mobile app and web-based GUI for set up, management and troubleshooting
|

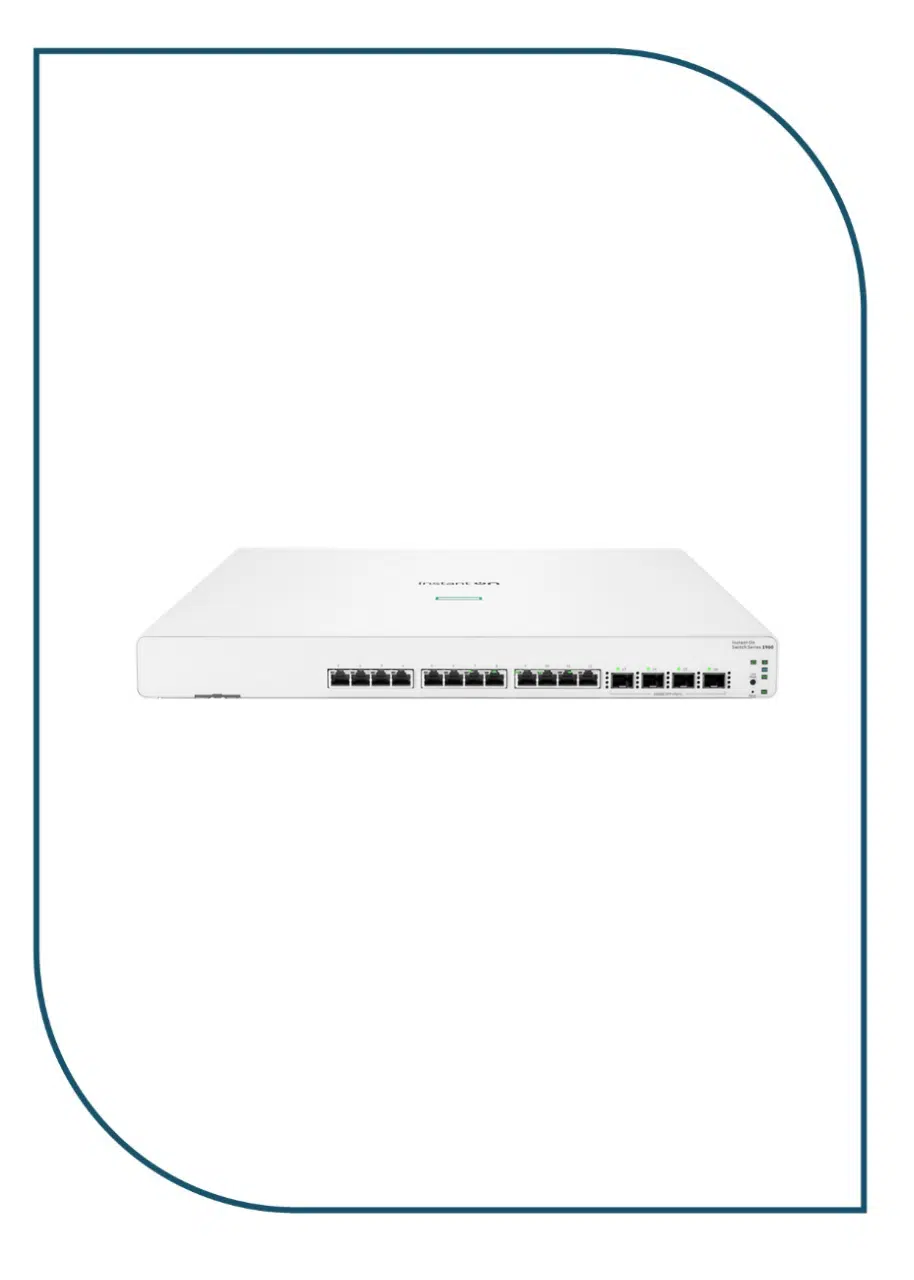

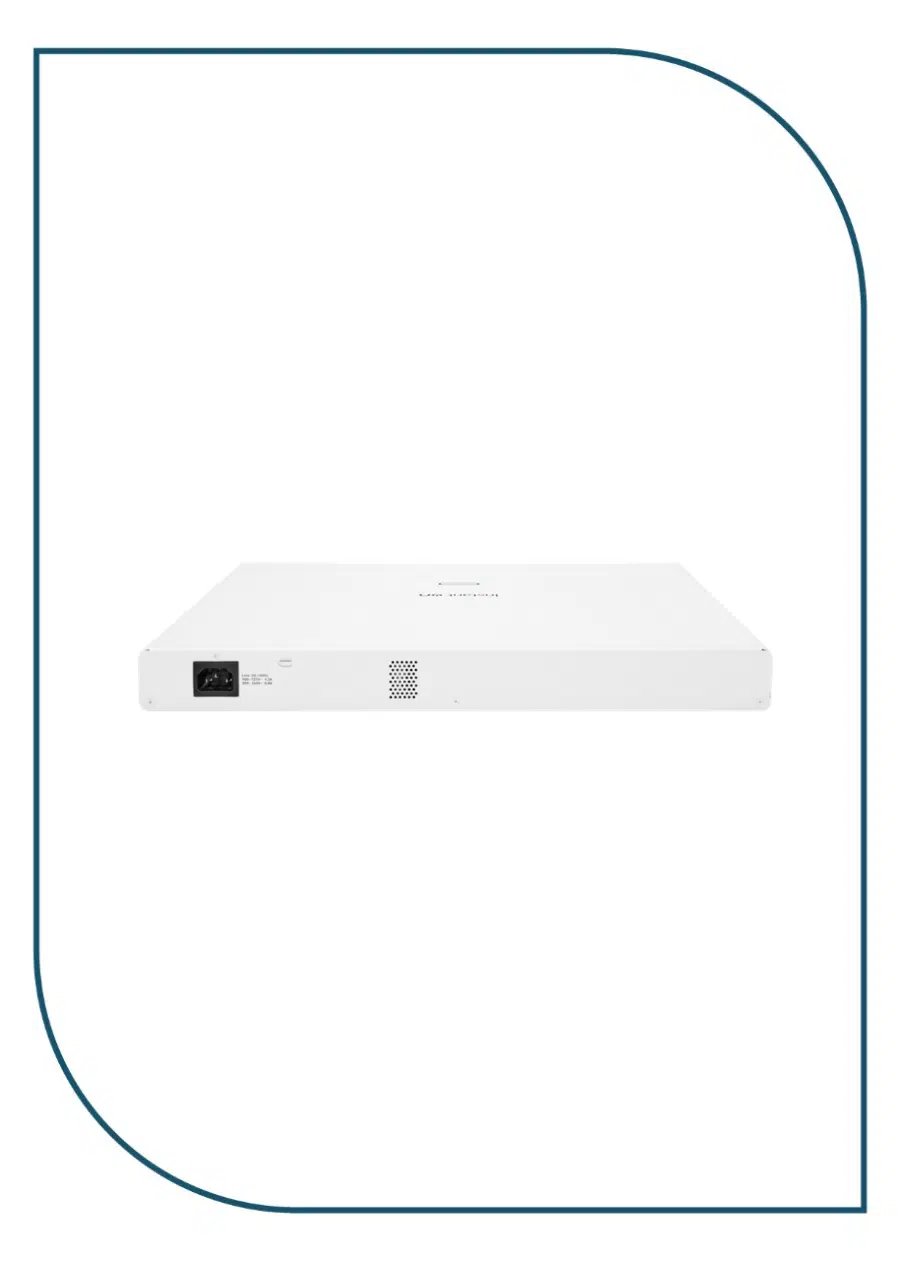

HPE Networking Instant On 1960 12XGT 4SFP+ Switch (JL805A) |
|
|
I/O ports and slots |
|
|
|
12 RJ-45 autosensing 100/1000/10GBASE-T ports (IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.an 10GBASE-T); Duplex: 100BASE-TX: half or full; 1000BASE-T: full only 10GBASE-T: full only 4 SFP+ 10GbE ports |
|
Dimensions |
350.5(d) x 442.5(w) x 43.95(h) mm |
|
Weight |
9.6 lb (4.3 kg) |
|
CPU |
Single Core ARMv7 Cortex-A9 @2Ghz |
|
100 Mb Latency |
< 7.4 uSec |
|
1000 Mb Latency |
< 4.2 uSec |
|
10000 Mb Latency |
< 1.1 uSec |
|
Throughput (Mpps) |
238 Mpps |
|
Capacity |
320 Gbps |
|
Routing Table size |
512 IPv4/IPv6 |
|
MAC Address table size |
16,000 entries |
|
Reliability MTBF (years) |
88.8 |
|
Operating temperature |
0-40°C, 0-10,000 ft |
|
Operating relative humidity |
15% to 95% @ 104°F (40°C) non-condensing |
|
Nonoperating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) up to 15000 ft |
|
Nonoperating/Storage relative humidity |
15% to 90% @ 149°F (65°C) non-condensing |
|
Altitude |
up to 10,000 ft (3 km) |
|
Acoustics1 |
LWAd = 4.0 Bel |
|
Notes1: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm) |
|
|
Electrical Characteristics |
|
|
Frequency |
50Hz/60Hz |
|
AC voltage |
100-127VAC / 200-240VAC |
|
Current |
1.3A/0.4A |
|
Maximum power rating |
100-127V: 130W 200-220V: 160W |
|
Idle power |
100-127V: 60W 200-220V: 80W |
|
PoE power |
– |
|
Power Supply |
Internal power supply |
